| ₹ 106.58 includes GST and import duties. | |
| B2B customers can avail ₹ 16.25 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The ZXGD3002E6TA is a Non-inverting Single MOSFET Gate Driver capable of driving up to 9A into a MOSFET or IGBT gate capacitive load from supply voltages up to 20V. With typical propagation delay times down to 2ns and rise/fall times down to 11ns this device ensures rapid switching of the power MOSFET or IGBT to minimize power losses and distortion in high current fast switching applications. The ZXGD3002E6 is inherently rugged to latch-up and shoot-through and its wide supply voltage range allows full enhancement to minimize on-losses of the power MOSFET or IGBT. Its low input voltage requirement and high current gain allows high current driving from low voltage controller ICs enables reduced parasitic inductance and independent control of rise and fall slew rates.
- Fast switching emitter-follower configuration
- 2ns Propagation delay time
- 11ns Rise/fall time, 1000pF load
- Low input current requirement
- Separate source and sink outputs for independent control of rise and fall time
- Optimized pin-out to ease board layout and minimize trace inductance
- No latch-up
- No shoot through
- Near zero quiescent and output leakage current
Applications
Signal Processing, Audio
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Output Delay | 1.6ns |
| Operating Temperature Min | -55°C |
| Peak Output Current | 9A |
| Input Delay | 1.25ns |

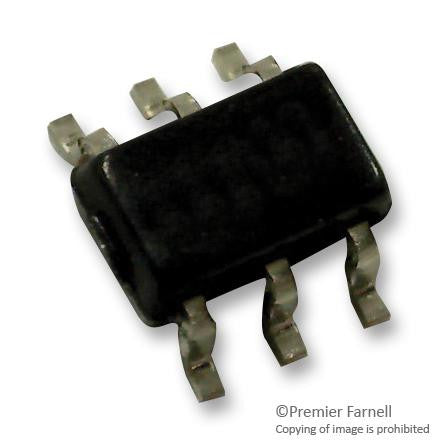

| Driver Case Style | SOT-23 |
| Operating Temperature Max | 150°C |
| No. of Pins | 6Pins |
| Product Range | - |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 0V |
| Packaging | Cut Tape |
| Supply Voltage Max | 20V |
| Driver Configuration | Low Side |
| MSL | - |
Other details
| Brand | DIODES INC |
| Part Number | ZXGD3002E6TA |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 104.45 |
| 3-5 | ₹ 103.38 |
| 5-10 | ₹ 101.25 |
| 10+ | ₹ 99.12 |
Bulk discount will be automatically applied during checkout based on quantity.
