Description
- Transmits HDMI/IR/RS-232 230 ft via Cat6
- Supports Up to 1080p / 4K, and 3D Video
- Only One Power Supply Required
- Screw-On Power Supply Included
- Bidirectional IR and RS232 Pass-Through
- Built-In Surge Protection
- CEC Supported
- HDCP Compliant
- Includes Two IR Emitters / Receivers
- Includes L Mounting Brackets
The Intelix HDMI Over Twisted Pair Extender with Power and Control is a transmitter and receiver set that allows you to transmit a HDMI signal, bidirectional IR control, and RS-232 control up to 230 ft over a single Cat6 or greater cable. It supports resolutions up to 1080p and 4K, and 3D video. 4K can be transmitted up to 131 ft.
Only one power supply is required, connected at either the transmitter or receiver end, as one unit will transmit power to the other. An 18V power supply with a screw-on connector is included. Two IR emitters, two IR receivers, and two pairs of mounting brackets are also included. The individual transmitter and receiver units are not compatible with other HDBaseT devices due to proprietary PoE circuitry.
- Key Features
-
- HDMI transmission up to 230 ft over Cat6 or greater cable
- Supports 1080p, 4K x 2K, and 3D video
- Bidirectional Wideband IR and RS232 pass-through
- Power supply required only on one end
- CEC supported
- Built-in surge protection
- Power, Status, Link, and HDCP diagnostic LEDs
- HDCP compliant
- Locking power connector included
- Also includes two IR emitters/receivers and two sets of mounting brackets
UPC: 601446000991

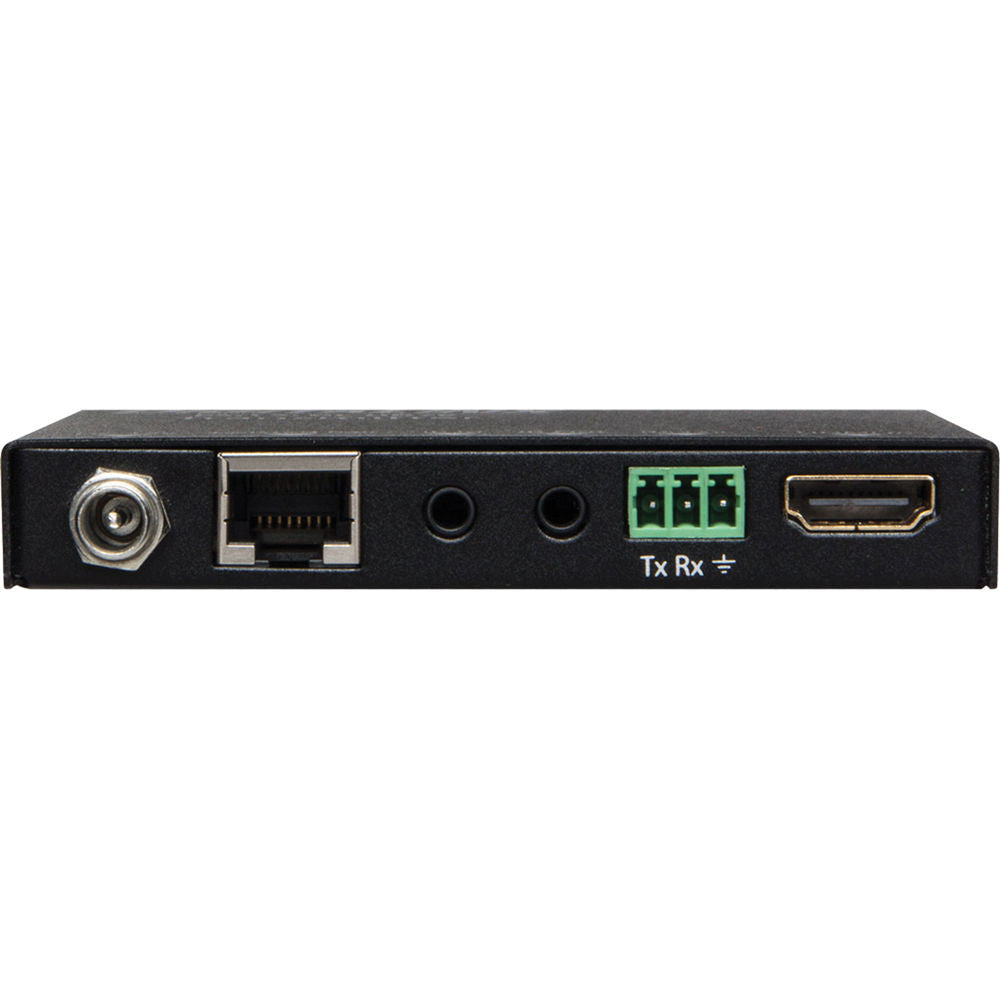

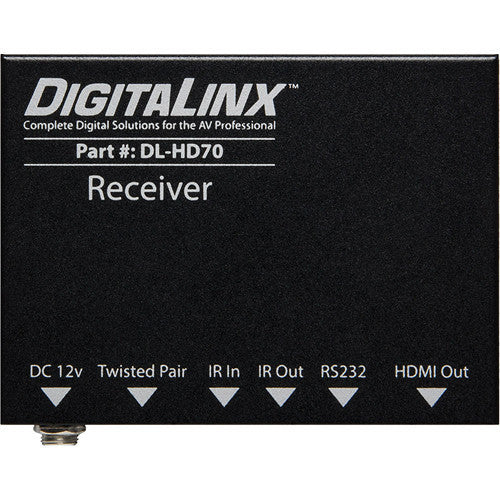

| Input / Output | Transmitter: 1x HDMI type A input 1x Shielded RJ45 output, 8P8C 1x IR emitter port, 3.5 mm TRS jack 1x IR receiver port, 3.5 mm TRS jack 1x RS-232 port, 3-Pole Euroblock connector 1x Locking DC power port, 5.5 mm outside diameter / 2.1 mm inside diameter Receiver: 1x HDMI type A output 1x Shielded RJ45 input, 8P8C 1x IR emitter port, 3.5 mm TRS jack 1x IR receiver port, 3.5 mm TRS jack 1x RS-232 port, 3-Pole Euroblock connector 1x Locking DC power port, 5.5 mm outside diameter / 2.1 mm inside diameter |
| Maximum Distance | Over Cat6: 197 ft (60 m): Deep Color 36/30/24 bit at 1080p 115 ft (35 m): Deep Color 48 bit at 1080p, 3D, and 4K x 2K Over Cat6 or greater with shielded connectors: 230 ft (70 m): Deep Color 36/30/24 bit at 1080p 131 ft (40 m): Deep Color 48 bit at 1080p, 3D, and 4K x 2K Maximum HDMI Distance:16 ft (5 m) |
| Compliance | HDMI, HDCP, and CEC |
| Embedded Audio | Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio |
| Input DDC Signal | 5.0 V p-p (TTL) |
| Input Video Signal | 0.5 - 1 V p-p |
| IR Frequency Range | 33-55 kHz at 5 V |
| RS-232 Baud Rate | Up to 115200 baud |
| HDBaseT Signal Characteristics | Maximum Distance: 230 ft (70 m) Cable Requirements: Solid core Cat6 or 6A with TIA/EIA-568B crimp pattern Bandwidth: 10.2 Gbps Gain: 0 dB - 10 dB at 100 MHz Resolution Range: 800 x 600 - 1920 x 1200 Signal to Noise Ratio (SNR): > 70 dB at 100 MHz over 328 ft (100 m) Return Loss: < -30 dB at 5 KHz Total Harmonic Distortion (THD): < 0.005% at 1 KHz Min-Max Signal Level: < 0.3 - 1.45 V p-p Differential Phase Error: ±10° at 135 MHz over 328 ft (100 m) |
| Housing | Painted steel |
| Maximum Power Consumption | Transmitter: 3 W; Receiver: 6 W |
| Power Supply | 18 V DC |
| ESD Protection | 15 kV |
| Regulatory | CE, RoHS |
| Operating Temperature | Environment: 32 to 104°F (0 to 40°C) Chassis: 88°F (31°C) (Transmitter); 100°F (38°C) (Receiver) |
| Storage Temperature | Environment: 14 to 140°F (-10 to 60°C) |
| Operating Humidity | Environment: 20 to 90%, non-condensing |
| Storage Humidity | Environment: 20 to 90%, non-condensing |
| Dimensions | 5.3 x 2.9 x 0.6" (13.5 x 7.4 x 1.5 cm) |
| Weight | Approx.1 lb total (Approx. 0.45 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 2.0 lb |
| Box Dimensions (LxWxH) | 7.795 x 5.512 x 3.858" |
In the Box
Digitalinx HDMI Over Twisted Pair Extender with Power and Control
- 18V Power Supply with Screw-On Connector (U.S. Power Cord)
- 2 x IR emitters
- 2 x IR Receivers
- 2 x Sets of L Mounting Brackets with Screws
- Installation Guide
- 2-Year Limited Warranty
