| ₹ 1376155.0 includes GST and import duties. | |
| B2B customers can avail ₹ 209863.64 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

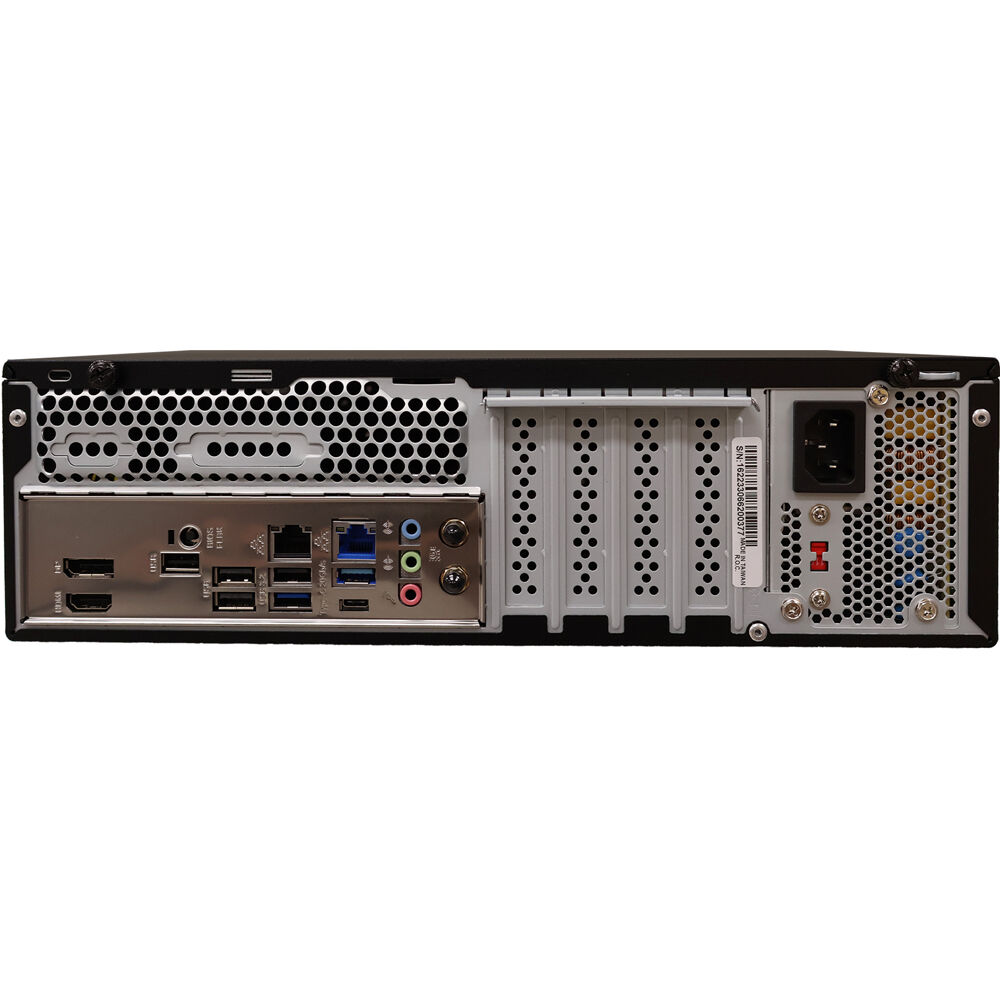

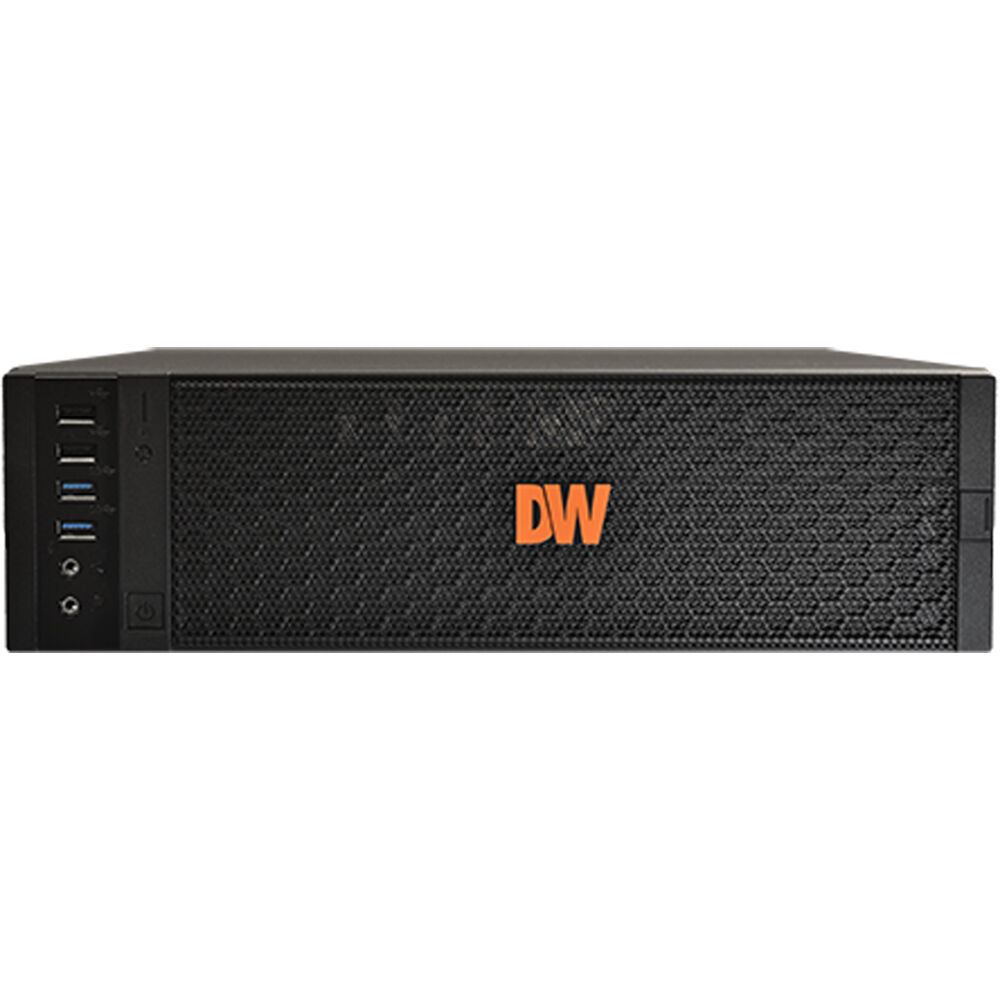

Digital Watchdog DW-BJAIHDX7 Overview
Record and manage both single- and multi-sensor ONVIF-compliant IP cameras with the DW-BJAiHDX7 Blackjack Ai All-in-One NVR & Analytic Appliance (40TB, Windows 11 IoT) from Digital Watchdog. Equipped with an Intel i7 processor, this server is a viable solution for recording multiple IP cameras of any resolution at up to 480 Mb/s throughput. It features 40TB of HDD storage, DW Spectrum IPVMS preloaded for seamless management, and Windows 11 IoT Enterprise LTSC OS installed on a separate SSD. A 4-channel license (DW-SPECTRUMLSC004) and a 4-channel Ai server license (DW-DWAiSLSC004) are included.
Supports up to 10 analytic streams
Supports all ONVIF-compliant IP cameras
Server-side analytics for non-analytic cameras
Hailo Ai Processor deep learning and color filter
Record and manage IP cameras of any resolution with a throughput up to 480 Mb/s
Supports dual-stream recording
DW Spectrum for iOS/Android enables seamless setup, configuration, monitoring, and recording
Single recording license charge that is fully transferable between your cameras and encoders
No maintenance fees
BIOS flashback button
LED indicators for status
UPC: 840407902824
Items Included
- Digital Watchdog DW-BJAiHDX7 Blackjack Ai All-in-One NVR & Analytic Appliance (40TB, Windows 11 IoT)
- Keyboard
- Mouse
- Power Cable
- Limited 5-Year Manufacturer Warranty
Additional Resources
Digital Watchdog DW-BJAIHDX7 Specs
Key Specs
| Number of Channels |
10
|
| Playback Resolution |
HDMI:
1080p DisplayPort: |
| Recording Resolution |
1080p
|
| PTZ Support |
Yes
|
| Throughput |
480 Mb/s
|
| A/V I/O |
1x 1/8" (3.5 mm) Audio Input
1x 1/8" (3.5 mm) Audio Output 2x RCA Audio Input 1x RCA Audio Output 1x DisplayPort 1.4 Video Output 1x HDMI Video Output |
| Communication I/O |
2x USB-A 2.0 (Front)
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Front) 3x USB-A 2.0 (Rear) 2x USB-A 3.1/3.2 Gen 2 (Rear) 1x USB-C 3.1/3.2 Gen 2 (Rear) 1x RJ45 Gigabit Ethernet (Rear) 1x RJ45 2.5 GbE (Rear) |
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Installed Drive |
40 TB Hard Drive
|
General
| Number of Channels |
10
|
| Playback Resolution |
HDMI:
1080p DisplayPort: |
| Recording Resolution |
1080p
|
| PTZ Support |
Yes
|
| Throughput |
480 Mb/s
|
| IP Camera Support |
10
|
| 2-Way Audio |
Yes
|
Connectivity
| A/V I/O |
1x 1/8" (3.5 mm) Audio Input
1x 1/8" (3.5 mm) Audio Output 2x RCA Audio Input 1x RCA Audio Output 1x DisplayPort 1.4 Video Output 1x HDMI Video Output |
| Communication I/O |
2x USB-A 2.0 (Front)
2x USB-A 3.0 / 3.1/3.2 Gen 1 (Front) 3x USB-A 2.0 (Rear) 2x USB-A 3.1/3.2 Gen 2 (Rear) 1x USB-C 3.1/3.2 Gen 2 (Rear) 1x RJ45 Gigabit Ethernet (Rear) 1x RJ45 2.5 GbE (Rear) |
| Audio I/O |
3x Input
2x Output |
| System Connection |
2x SATA
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Network Protocols |
ONVIF
|
Computing
| Installed Operating System |
Windows 10 IoT Enterprise
|
| Processor |
Intel Core i7 (12th Gen)
|
| Memory |
16 GB
|
| GPU |
Intel Iris Xe
|
System
| Installed Drive |
40 TB Hard Drive
|
| Max Capacity Supported |
40 TB (Total)
|
| Number of Bays |
2
|
Software System Requirements
| OS Compatibility |
Computer: Windows / Linux / Ubuntu / macOS
Mobile: Android/iOS |
System Functions
| Dual Streaming |
Yes
|
| Fisheye Dewarping |
No
|
Electrical
| Power Supply |
300 W
|
| Power Supply Type |
External
|
Physical
| Built-In Display |
No
|
| Operating Conditions |
41 to 104°F / 5 to 40°C at 20 to 90% Humidity
|
| Certifications |
NDAA, TAA
|
| LED Indicators |
Yes
|
| Dimensions (W x D x H) |
13.1 x 15.8 x 3.9" / 332.7 x 401.3 x 99.1 mm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1348631.9 |
| 3-5 | ₹ 1334870.35 |
| 5-10 | ₹ 1307347.25 |
| 10+ | ₹ 1279824.15 |
Bulk discount will be automatically applied during checkout based on quantity.
