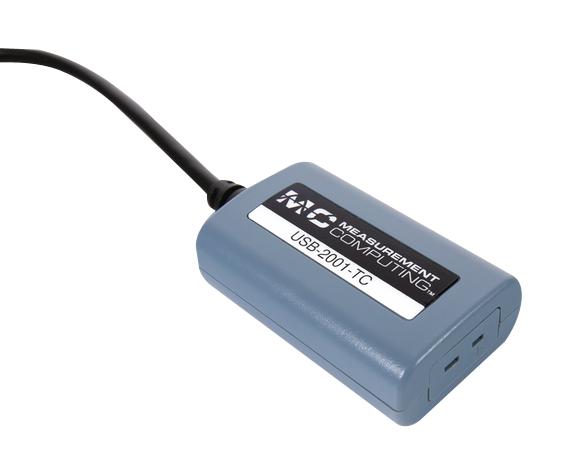

Digilent 6069-410-063 6069-410-063 USB DAQ Device Thermocouple MCC USB-2001-TC 1 Channel 20 Bit

USB-2001-TC is a single-channel thermocouple measurement DAQ device. The USB-2001-TC data acquisition device provides a single thermocouple input channel in a small form factor, making it an ideal solution for applications that require reliable temperature measurements at a low cost. Features include built in CJC and open thermocouple detection. Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW�, Linux®, and Python�.

• One thermocouple input
• 20-bit resolution
• 4 S/s sample rate
• Integrated cold junction compensation (CJC) sensor
• Open-thermocouple detection (OTD) feature
• Supports J, K, R, S, T, N, E, and B type thermocouples
• Accepts standard mini-plug
• Small form-factor
• Bus powered

Contents

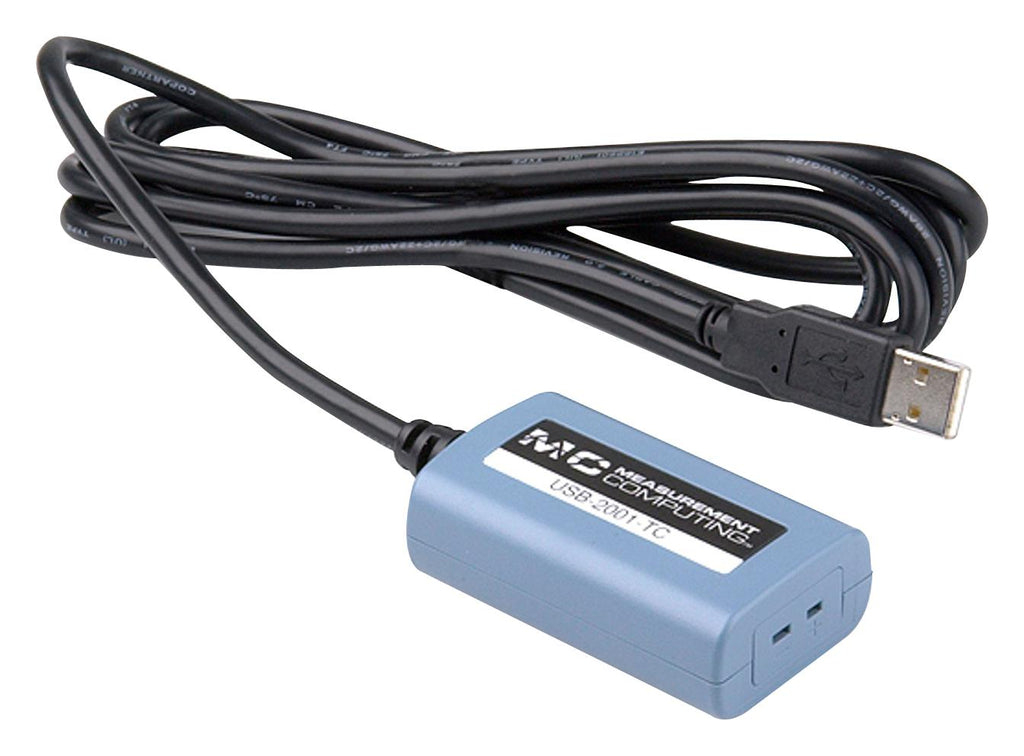

USB-2001-TC, USB cable, Printed insert: DAQami quick start, MCC packaging assembly/foam, etc.

Footnotes In addition, we have calibration services for this product (Europe only). Visit our calibration service page to see details of what options are available.

Other details

Brand	DIGILENT
Part Number	6069-410-063
Quantity	Each
Technical Data Sheet EN
