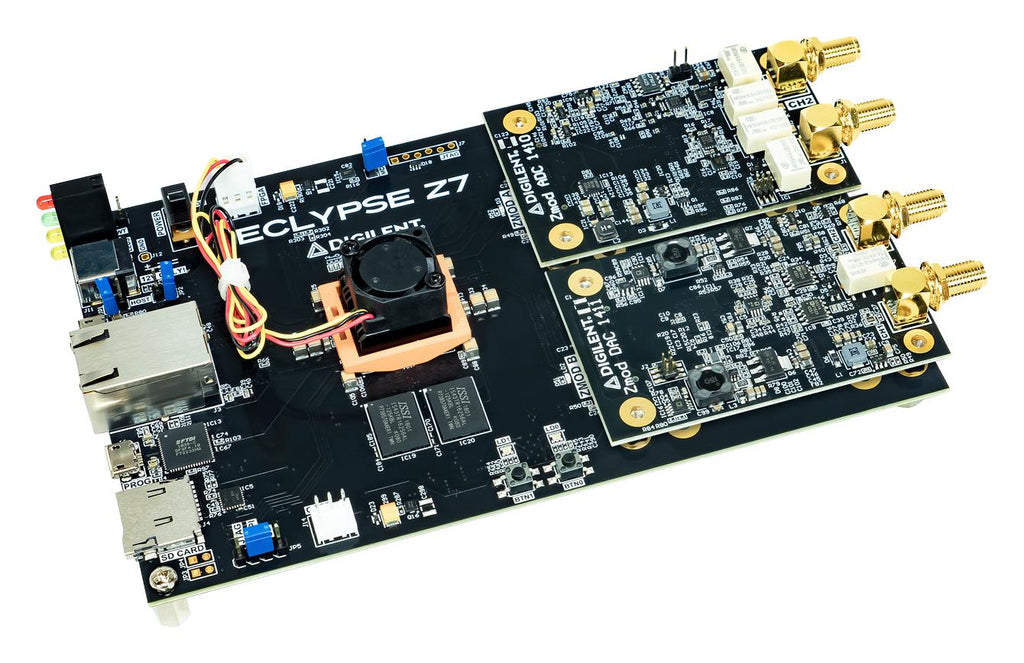

Eclypse Z7 is Digilent's newest FPGA/SoC development board, specifically designed to enable the rapid prototyping and development of embedded measurement systems. Featuring high speed Zmod ports for modular expansion, a Xilinx Zynq®-7020 SoC plus software API from Digilent, the Eclypse Z7 is fast, flexible and shortens the time it takes for engineers and researchers to develop innovative and powerful new high-speed instrumentation, control and measurement systems for edge computing, medical and communications applications. Eclypse Z7 is the first host board of the Eclypse platform.
- Eclypse Z7 Zynq-7000 SoC development board bundled with a Zmod DAC and Zmod ADC
- SYZYGY compatible expansion
- Zynq-7000 APSoC (XC7Z020-1CLG484C) 667MHz dual core Cortex-A9 processor
- 1GiB DDR3L with 32bit bus at 1066MT/s, 16MB quad-SPI flash, microSD card slot
- Powered from external 12V, 5A supply
- Platform MCU for configuration of adjustable power supplies and temperature management
- Gigabit Ethernet PHY, USB-JTAG programming circuitry USB-UART bridge
- USB micro AB port with USB 2.0 PHY with Host/Device/OTG capabilities
- Zmod ports, Pmod ports
- 2 push-buttons, 2 RGB LEDs
Contents
Eclypse Z7 development board, FPGA fan, USB A to micro B programming cable, USB A to micro A cable, 12V/5A power supply, Digilent custom packaging, One Zmod ADC, One Zmod DAC.
Product details
| Silicon Manufacturer |
Xilinx |
| No. of Bits |
32bit |
| Silicon Family Name |
Zynq-7000 |
| Core Architecture |
ARM, FPGA |
| Core Sub-Architecture |
Cortex-A9 |
| Silicon Core Number |
XC7Z020-1CLG484C, ADC1410, DAC1411 |
| Kit Contents |
Eclypse Z7 Dev Board, FPGA Fan, USB Cables, 12V/5A Power Supply, Adding one Zmod ADC & one Zmod DAC |
| Product Range |
- |
Other details
| Brand |
DIGILENT |
| Part Number |
471-036 |
| Quantity |
Each |
| Reference Manuals EN |
 |
| Manufacturer Product Page EN |
|
