Description
- 2-Channel Recording Interface
- XLR Microphone/Line Input
- 1/4" Instrument/Line Input
- High-Power Headphone Output
- Ethernet Connectivity
- SoundGrid Compatible
- 48V Phantom Power
- Powered from Included Adapter or via PoE

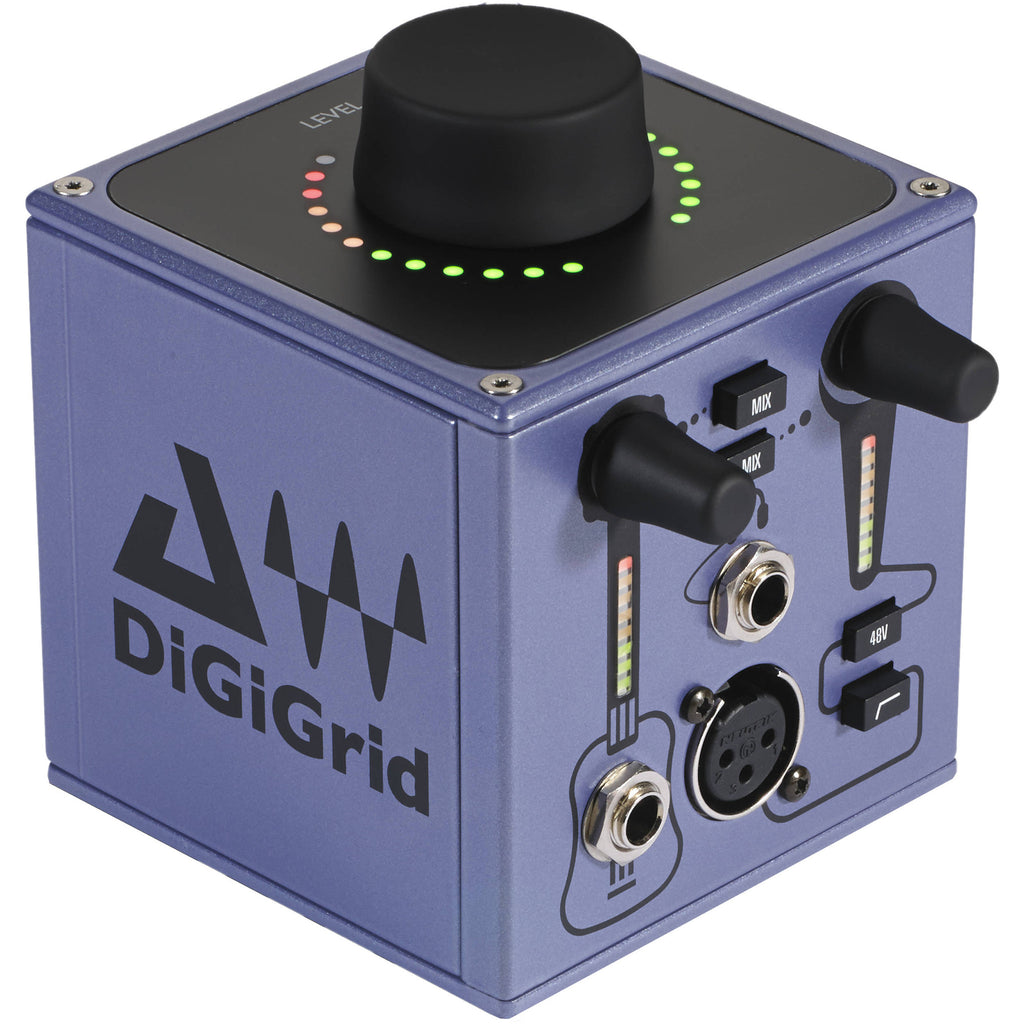

DiGiGrid M from DiGiGrid is an Ethernet based, two-channel recording interface that is easy to use (plug and play), with simultaneous monitoring and recording capabilities using two I/Os. One is a dedicated microphone/line input, while the second is an instrument/line input, allowing for many musical combinations. Quality converters and industry-proven microphone preamps provide excellent audio capture, and when listening back, a dedicated high-power headphone output guarantees a classic, warm analog control path.
The interface integrates seamlessly with any other DiGiGrid product using the CAT5 SoundGrid network port to provide the user with extra I/O and overall functionality. Physically, the unit features a non-slip base and optional mic-stand adapter plate, and is powered by the included twist-lock 12 VDC power supply, or via Power over Ethernet (PoE). When used in conjunction with the optional DiGiGrid S, up to four DiGiGrid devices can be easily networked up to 246 feet (75 meters) apart, and can even connect to multiple computers and DAWs simultaneously.
- Designed for songwriters, musicians and engineers for 96 kHz recording and headphone monitoring
- Two inputs, two outputs, 48V phantom power, high-pass filter, and dedicated metering
- Analog control path for highest-quality warm sonic performance
- Cat 5 port for the SoundGrid network connection
- Use as a standalone unit or in larger DiGiGrid advanced audio networks
- Optional stand mount adapter for maximum flexibility of placement
- 3.5" cubed high-grade aluminum extruded enclosure
- Includes eMotion ST Mixer, SoundGrid Studio Application, and StudioRack software
| Microphone/Line Input | Connector: 1 x XLR Input Impedance: 1.5 kOhms Gain Range: 0 to +70 dB Frequency Response: -3 dB, < 10 Hz to 100 kHz (analog to analog) Harmonic Distortion: 0.005% (40 dB gain) Noise EIN: -127 dB (70 dB gain) typical High-Pass Filter: -3 dB, 100 Hz, 18 dB/octave |
| Line / Instrument Inputs | Connector: 1 x 1/4" Input Impedance: 1 MOhm Gain Range: +6 to +30 dB Frequency Response: -3 dB, < 10 Hz to 100 kHz (analog to analog) Harmonic Distortion: 0.005% |
| Noise | Minimum Gain: -82 dBu Maximum Gain: -73 dBu |
| Headphones | Connector: 1 x 1/4" Gain Range Infinity: to +10 dB Max Output Levels: 16 Ohm � 2.3 Vrms 32 Ohm � 3.7 Vrms 100 Ohm � 6.0 Vrms 200 Ohm � 7.5 Vrms 600 Ohm � 8.8 Vrms |
| Dimensions (WxDxH) | 3.5 x 3.5 x 3.5" (9.0 x 9.0 x 9.0 cm) |
| Packaging Info | |
|---|---|
| Package Weight | 3.5 lb |
| Box Dimensions (LxWxH) | 13.7 x 11.7 x 4.8" |
- External Power Supply
- Downloadable Software Applications
- One (1) Year Limited Warranty
