Description
Digigram ALP280e-MIC Overview
Ideal for any Windows or Linux PC-based audio environment, the Digigram ALP280e is a low-profile 8-channel PCIe AD/DA audio interface card with eight analog line inputs and two D/A outputs. Sporting excellent sound quality and a versatile onboard 16x10 FPGA mixer for routing and zero-latency monitoring, the ALP280e is an ideal choice for mission-critical audio applications.
Along with the 8x2 analog audio configuration, this sound card provides eight GPIs and eight GPOs, wordclock input and output, and AES11 sync input. The maximum sampling rate via PCM is 32-bit float / 192 kHz, while AD/DA conversion offers up to 24-bit / 192 kHz audio. You can synchronize this card with up to eight ALP-X cards within the same system. Control is easy with the Digigram API and graphical interface. The card supports PCIe x2, x4, x8, and x16 buses. The ALP280e includes both a standard and low-profile mounting bracket.
Note: This sound card requires an analog or digital breakout cable for connecting to external audio devices. Breakout cables are sold separately.
- Outstanding audio quality and performance
- Rock-solid, life-long, hiccup-free reliability
- Fits in any type of PC, workstation, or server with a PCIe slot
- Made for regular applications or custom design via Digigram control API

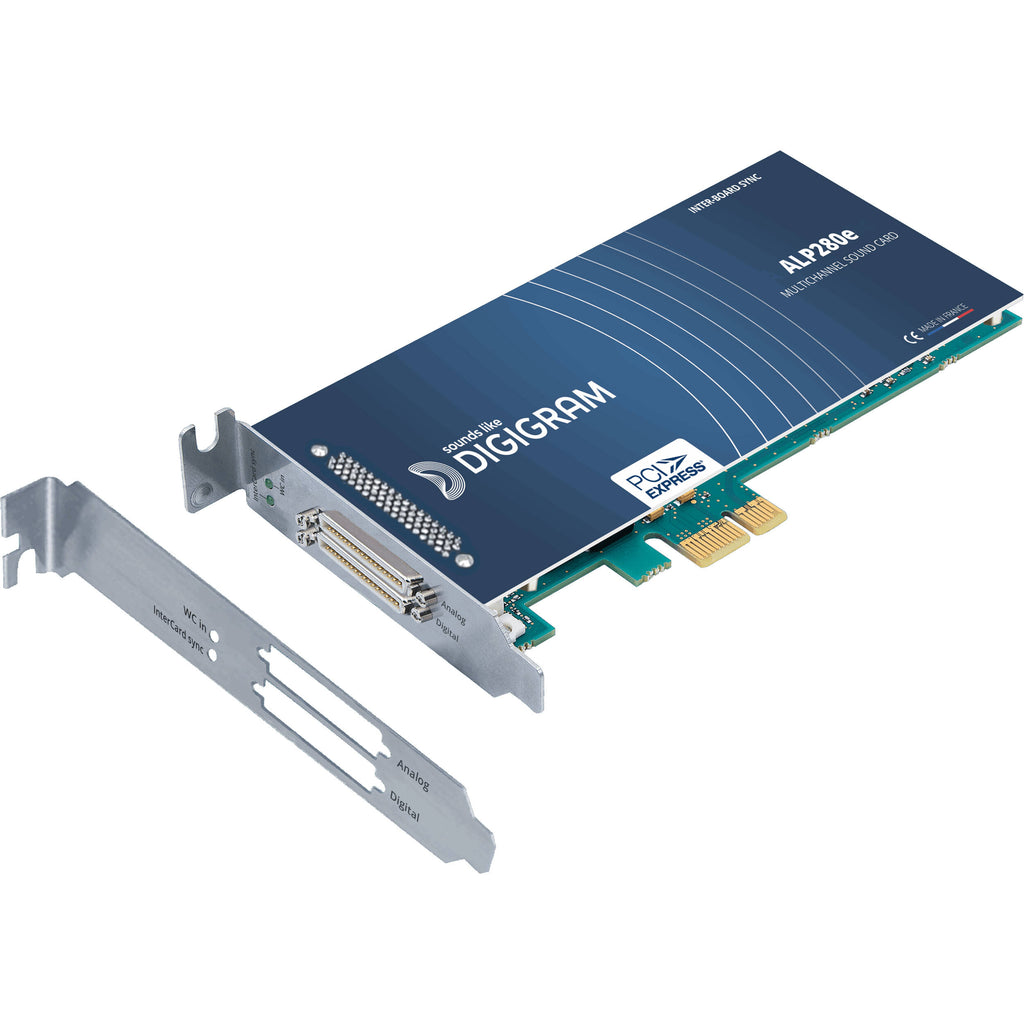

- Digigram ALP280e 8-Channel Analog Line PCIe Sound Card
- Standard Mounting Bracket
- Low-Profile Mounting Bracket
- Limited 2-Year Manufacturer Warranty
Digigram ALP280e-MIC Specs
| Maximum Sampling Rate |
192 kHz / 32-Bit Float (PCM)
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
No
|
| Digital Audio I/O |
No
|
| Host Connection |
PCIe
|
| Power Requirements |
PCIe
|
| Display |
No
|
| Built-In DSP |
No
|
| Maximum Sampling Rate |
192 kHz / 32-Bit Float (PCM)
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
| Pad |
No
|
| Gain/Trim Range |
Line:
-24 dB to +16 dB (Analog) -90 dB to +12 dB (Digital) |
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
| Analog Audio I/O |
No
|
| Phantom Power |
No
|
| Digital Audio I/O |
No
|
| Host Connection / USB |
PCIe
|
| Host Connection Protocol |
PCIe
|
| USB (Non-Host) |
No
|
| Sync I/O |
No
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Expansion Slots |
No
|
| Wireless |
No
|
| Frequency Response |
20 Hz to 20 kHz (at 48 kHz)
|
| Maximum Input Level |
Line:
+24 dBu |
| Maximum Output Level |
+24 dBu
|
| Impedance |
Inputs:
> 10 Kilohms Outputs: < 100 Ohms |
| SNR |
Inputs:
> 115 dBA Outputs: > 109 dBA |
| THD+N |
Inputs:
< -98 dB (at 24 dBu) Outputs: < -96 dB (at 24 dBu) |
| EIN |
< -124 dB
|
| Sample Rates |
Up to 192 kHz
|
| Bit Depths |
24-Bit (AD/DA Conversion)
|
| Sync Sources |
AES11
|
| Media/Memory Card Slot |
No
|
| OS Compatibility |
Windows / Linux
|
| Mobile Device Compatibility |
No
|
| Power Requirements |
PCIe
|
| Dimensions |
6.6 x 2.7 x 0.8" / 16.8 x 6.9 x 2 cm
|
