Description

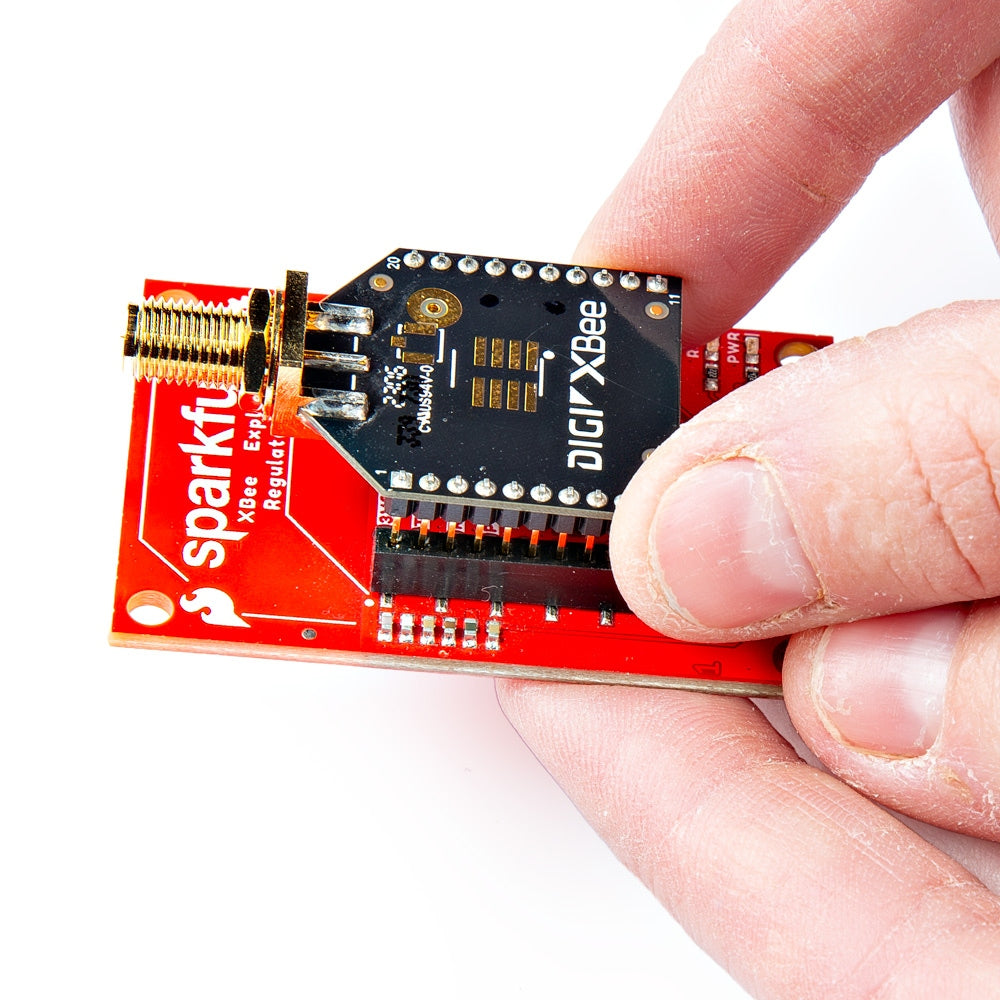

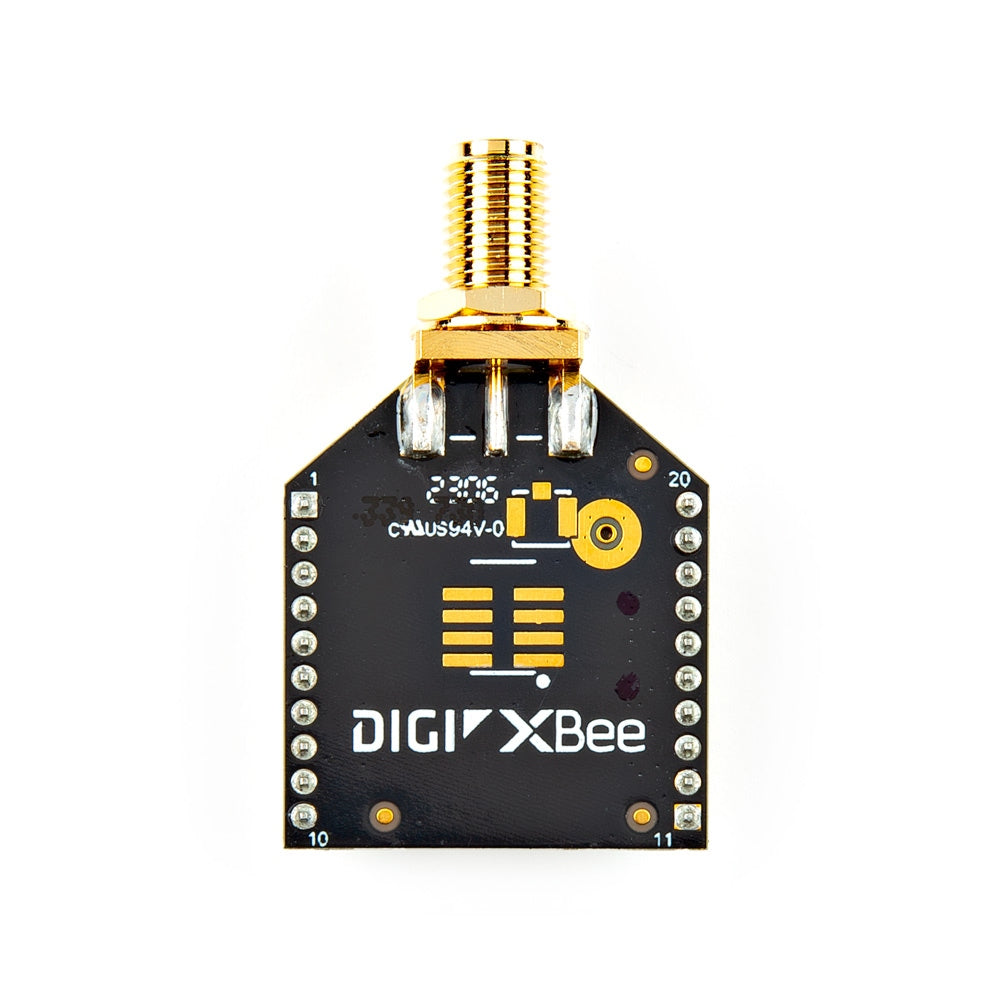

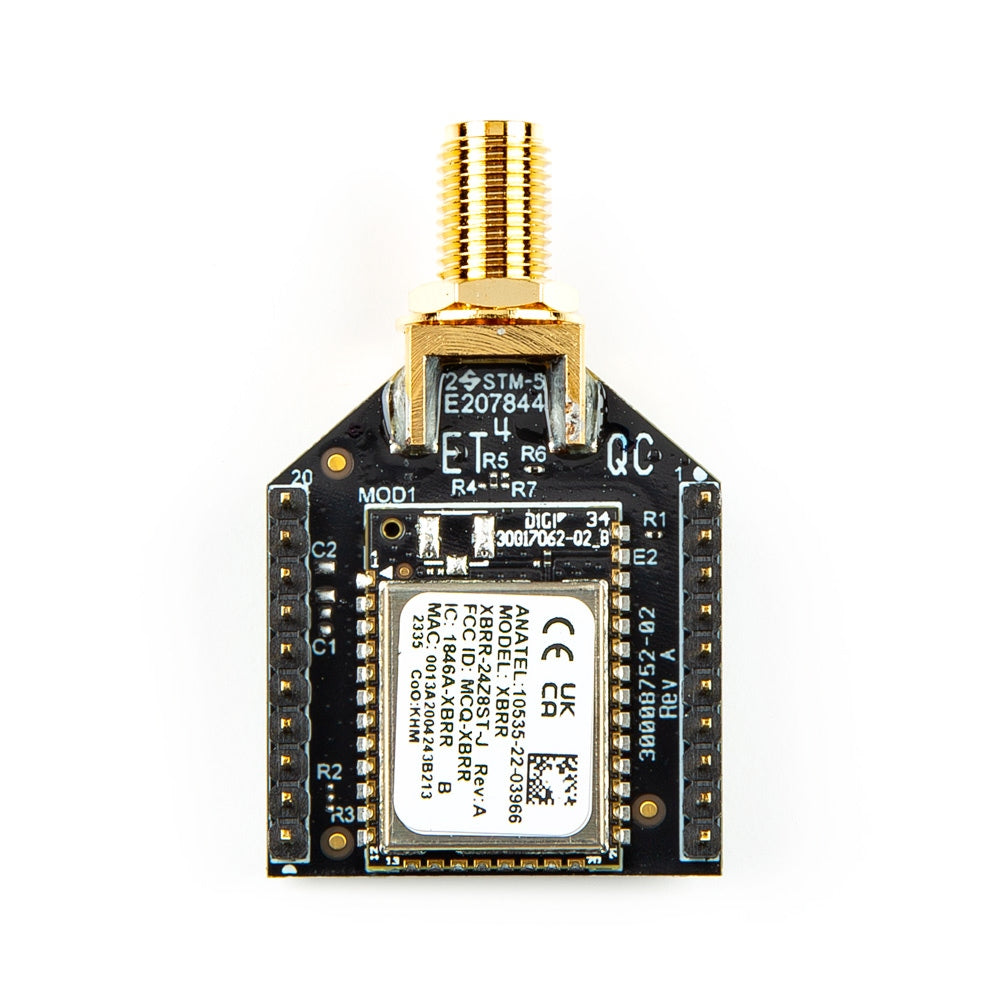

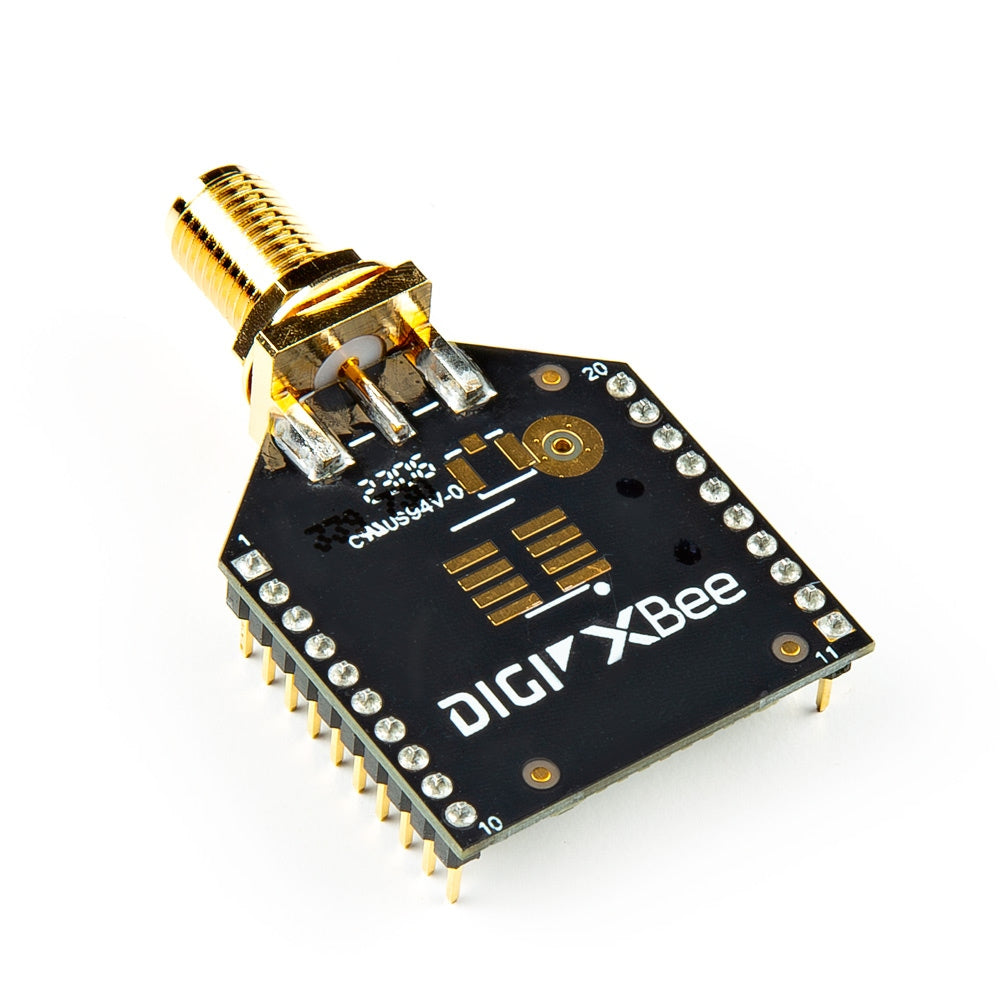

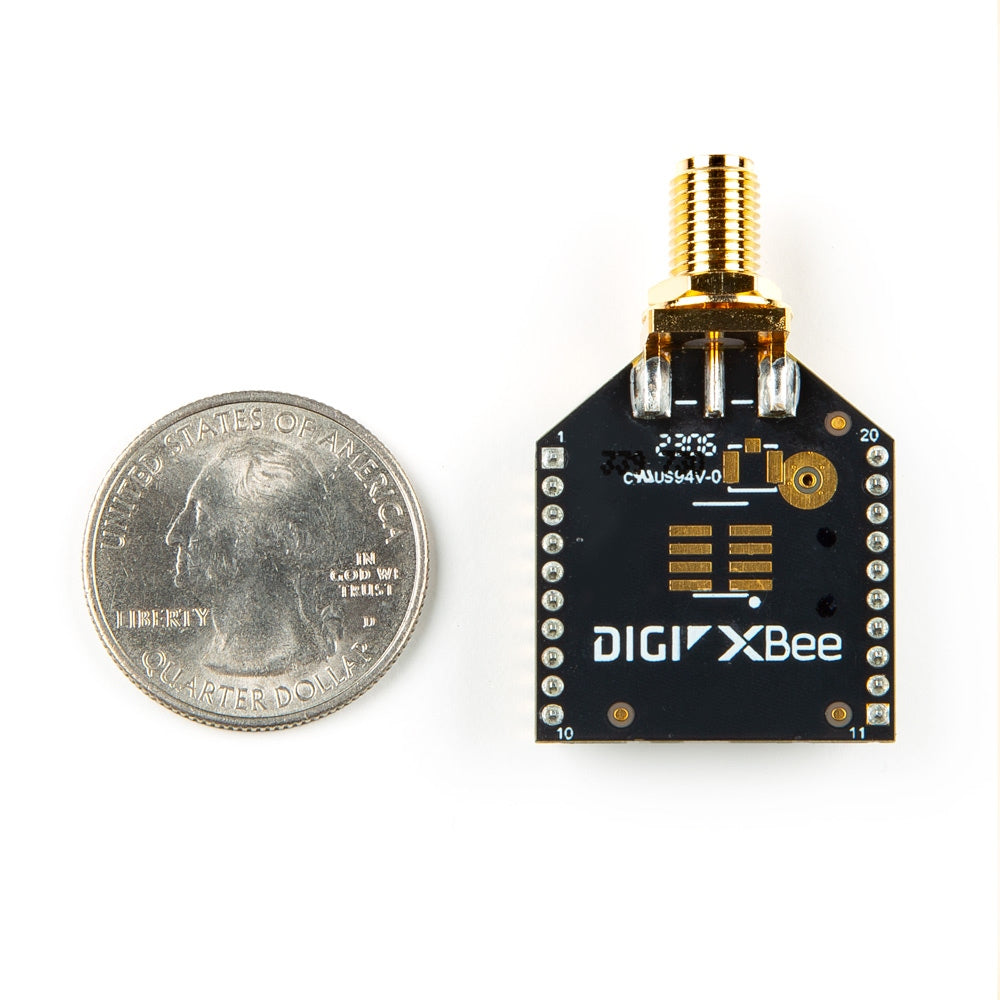

The Digi XBee® RR Module is an embedded solution providing fast point-to-multipoint or peer-to-peer networking via an SMA antenna (not included).
Features & Specs
- 2.4 GHz, Zigbee, SMA Ant, Through-hole
- Memory: 1 MB flash, 96 kB RAM
- Transceiver chipset: Silicon Labs EFR32MG SoC
- Data rate: RF 250 Kbps, serial up to 1 Mbps
- Indoor/urban range*: Up to 90 m (300 ft)
- Outdoor/line-of-sight range*: Up to 3200 m (2 miles)
- Transmit power: +19 dBm
- Receiver sensitivity: −103 dBm normal mode
- Bluetooth® performance: Supports BLE 4.2 (slave only) and capable of interoperating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0, but not yet enabled except payload extensions (future release). 1 Mbps, up to 15 m (49 ft) indoor/urban range, up to 300 m (984 ft) outdoor/RF line-of-sight range, +8 dBm transmit power, −95 dBm normal mode receiver sensitivity (1% per).
- Serial data interface: UART, SPI
- Operating temperature: −40 °C to 85 °C (−40 °F to 185 °F)
- Dimensions (L x W x H): 2.438 x 2.761 cm (0.960 x 1.087 in)
- Supply voltage: 1.72 – 3.8 V
- Transmit Current: 195 mA at 19 dBm
- Protocol: Zigbee 3.0
Features & Specs
- 2.4 GHz, Zigbee, SMA Ant, Through-hole
- Memory: 1 MB flash, 96 kB RAM
- Transceiver chipset: Silicon Labs EFR32MG SoC
- Data rate: RF 250 Kbps, serial up to 1 Mbps
- Indoor/urban range*: Up to 90 m (300 ft)
- Outdoor/line-of-sight range*: Up to 3200 m (2 miles)
- Transmit power: +19 dBm
- Receiver sensitivity: −103 dBm normal mode
- Bluetooth® performance: Supports BLE 4.2 (slave only) and capable of interoperating with BLE 5.0 devices that support 1M PHY. Hardware is software upgradable to 5.0, but not yet enabled except payload extensions (future release). 1 Mbps, up to 15 m (49 ft) indoor/urban range, up to 300 m (984 ft) outdoor/RF line-of-sight range, +8 dBm transmit power, −95 dBm normal mode receiver sensitivity (1% per).
- Serial data interface: UART, SPI
- Operating temperature: −40 °C to 85 °C (−40 °F to 185 °F)
- Dimensions (L x W x H): 2.438 x 2.761 cm (0.960 x 1.087 in)
- Supply voltage: 1.72 – 3.8 V
- Transmit Current: 195 mA at 19 dBm
- Protocol: Zigbee 3.0
