| ₹ 25.0 includes GST and import duties. | |
| B2B customers can avail ₹ 3.81 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

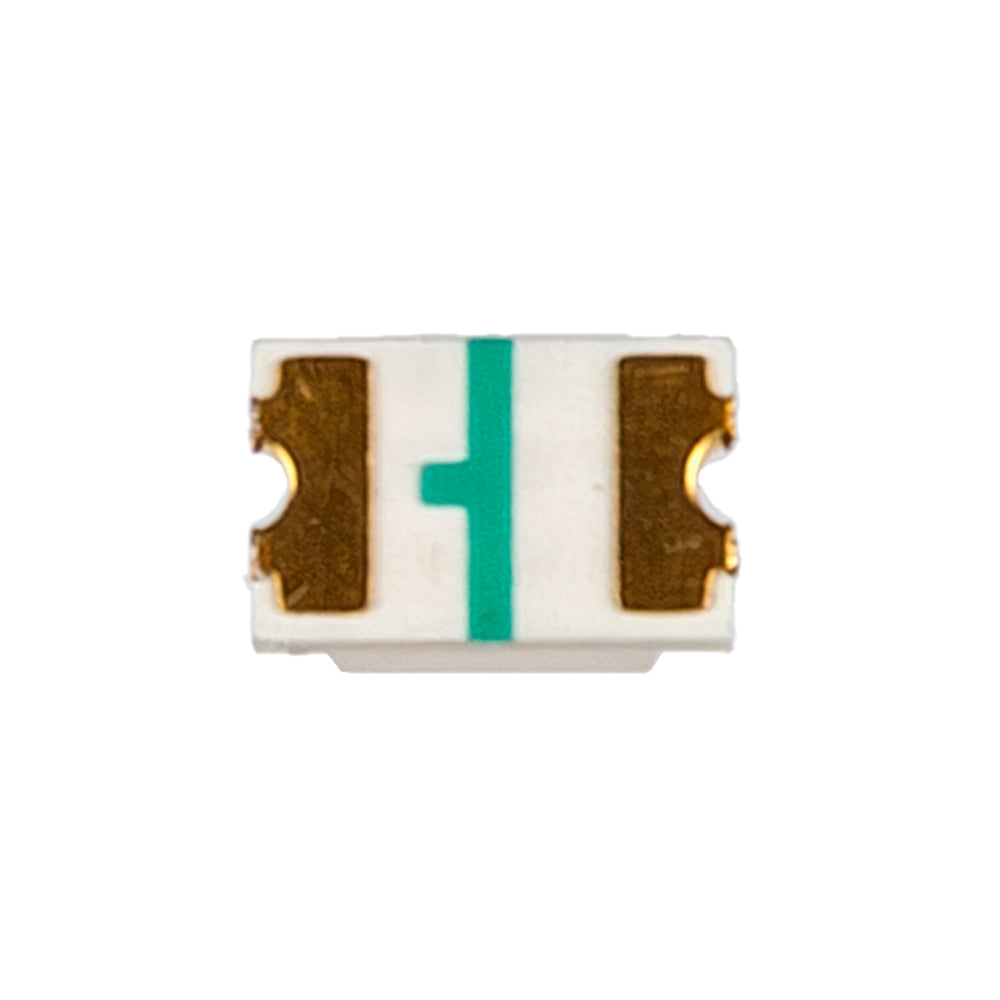

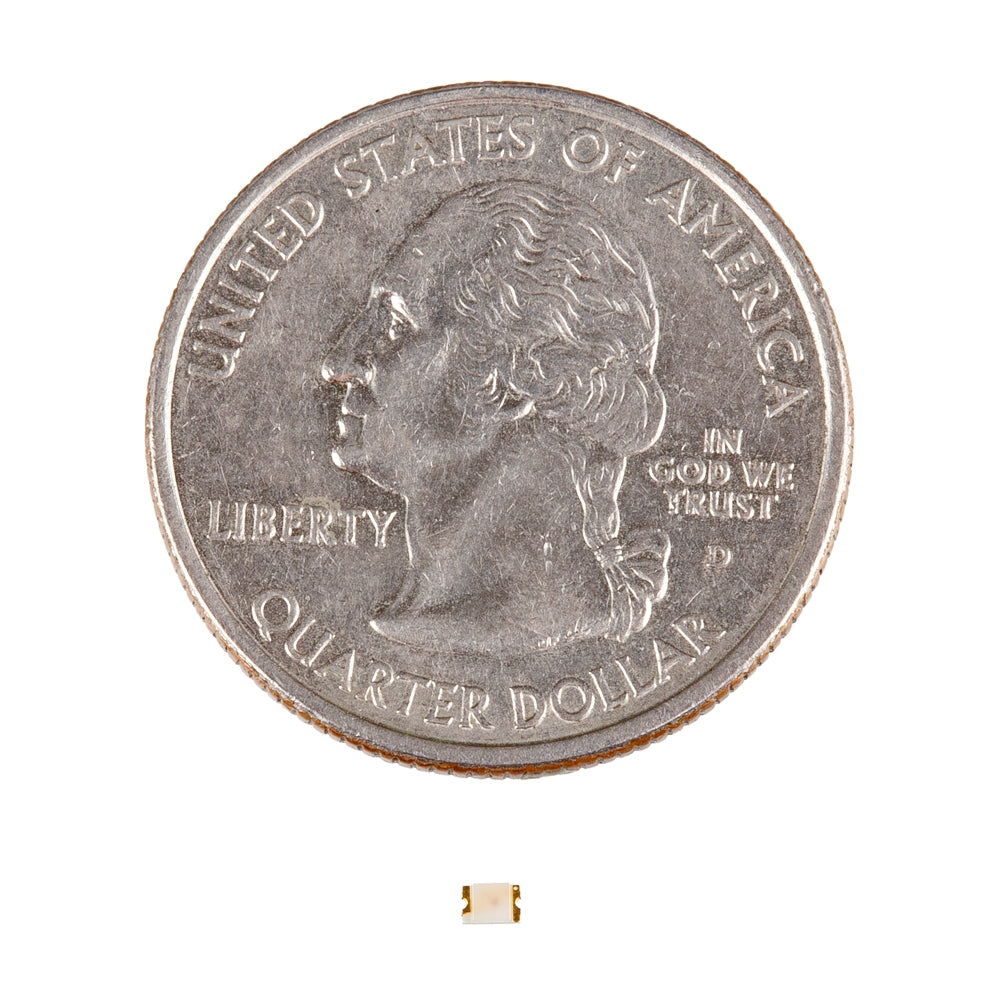

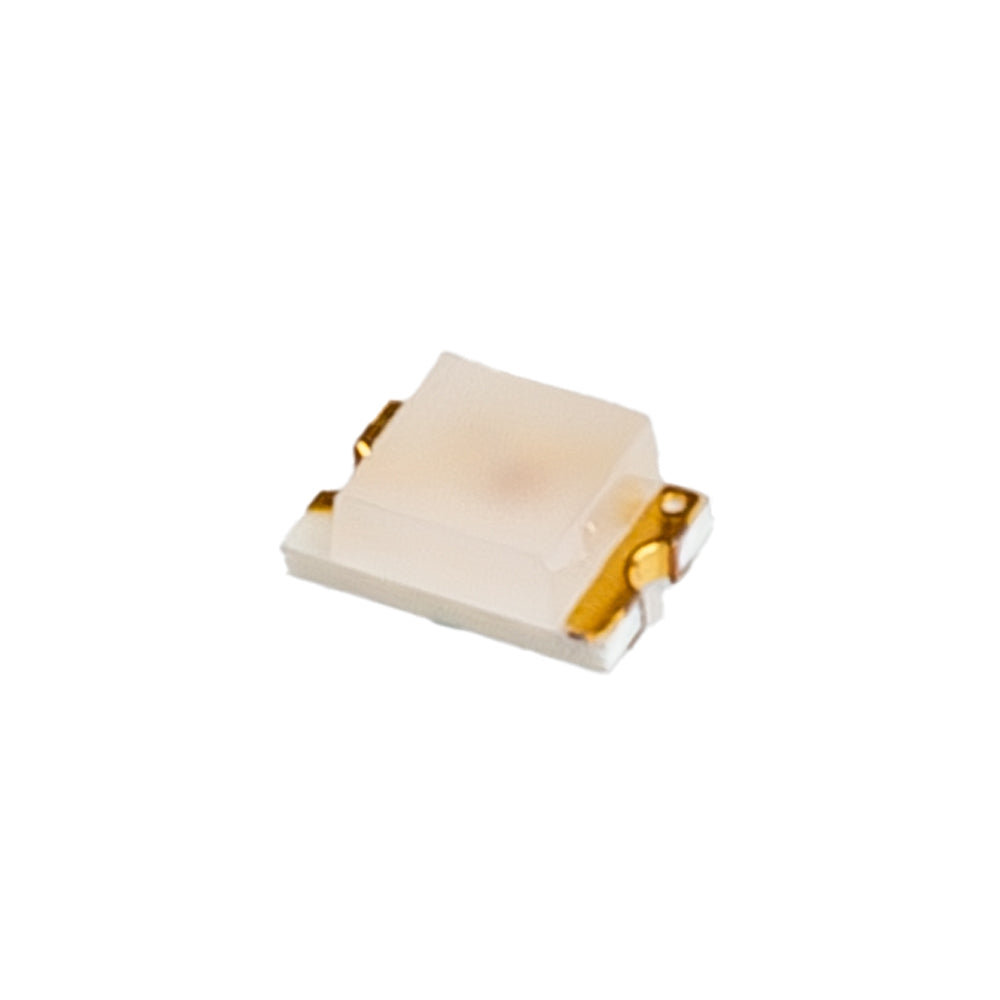

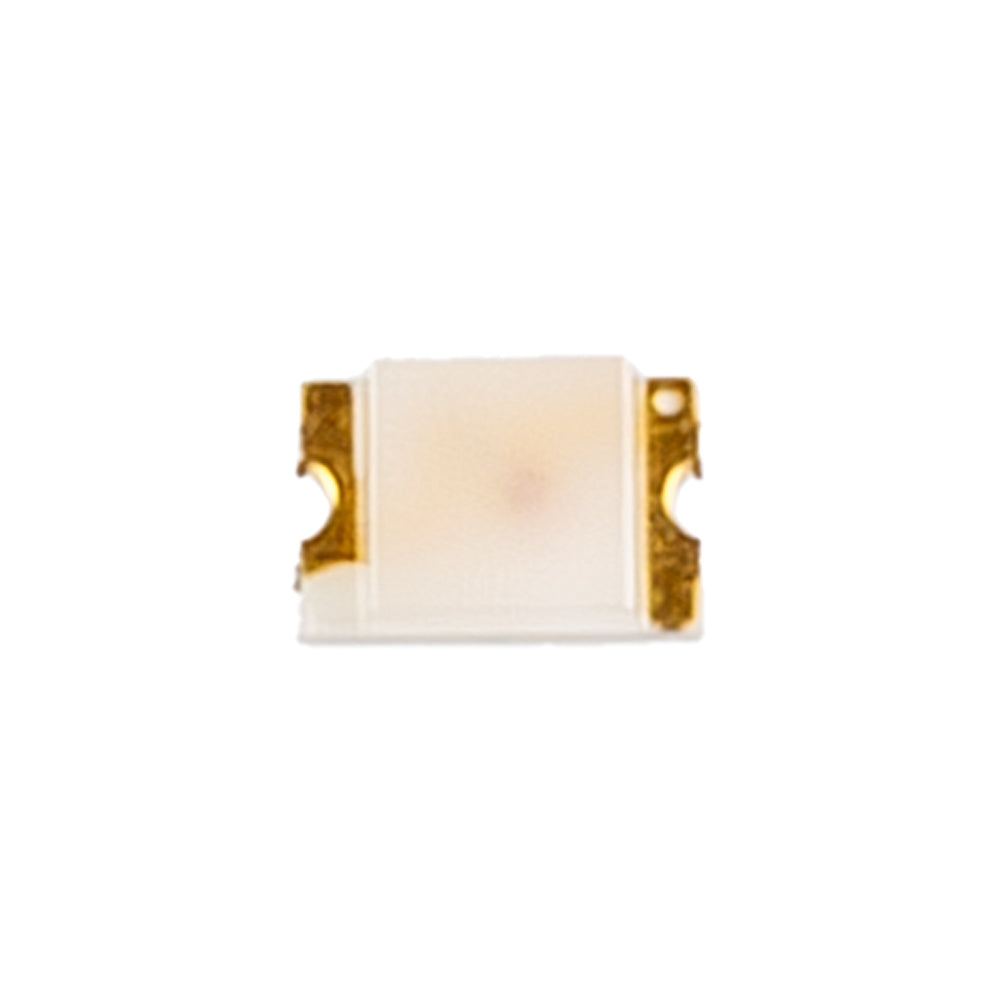

This is a basic diffused green surface mounted LED.
Features & Specs
- Color: Green
- Configuration: Standard
- Lens Color: White
- Lens Transparency: Diffused
- Millicandela Rating: 26.05mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.30mm x 1.25mm
- Voltage - Forward (Vf) (Typ): 2.2V
- Current - Test: 20mA
- Viewing Angle: 160°
- Mounting Type: Surface Mount
- Wavelength - Dominant: 570nm
- Wavelength - Peak: 572nm
- Dimensions: 2.00mm L x 1.25mm W
- Height (Max): 0.90mm
- Mfg #: LG R971-KN-1-0-20-R18
Features & Specs
- Color: Green
- Configuration: Standard
- Lens Color: White
- Lens Transparency: Diffused
- Millicandela Rating: 26.05mcd
- Lens Style: Rectangle with Flat Top
- Lens Size: 1.30mm x 1.25mm
- Voltage - Forward (Vf) (Typ): 2.2V
- Current - Test: 20mA
- Viewing Angle: 160°
- Mounting Type: Surface Mount
- Wavelength - Dominant: 570nm
- Wavelength - Peak: 572nm
- Dimensions: 2.00mm L x 1.25mm W
- Height (Max): 0.90mm
- Mfg #: LG R971-KN-1-0-20-R18
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 24.5 |
| 3-5 | ₹ 24.25 |
| 5-10 | ₹ 23.75 |
| 10+ | ₹ 23.25 |
Bulk discount will be automatically applied during checkout based on quantity.
