Description

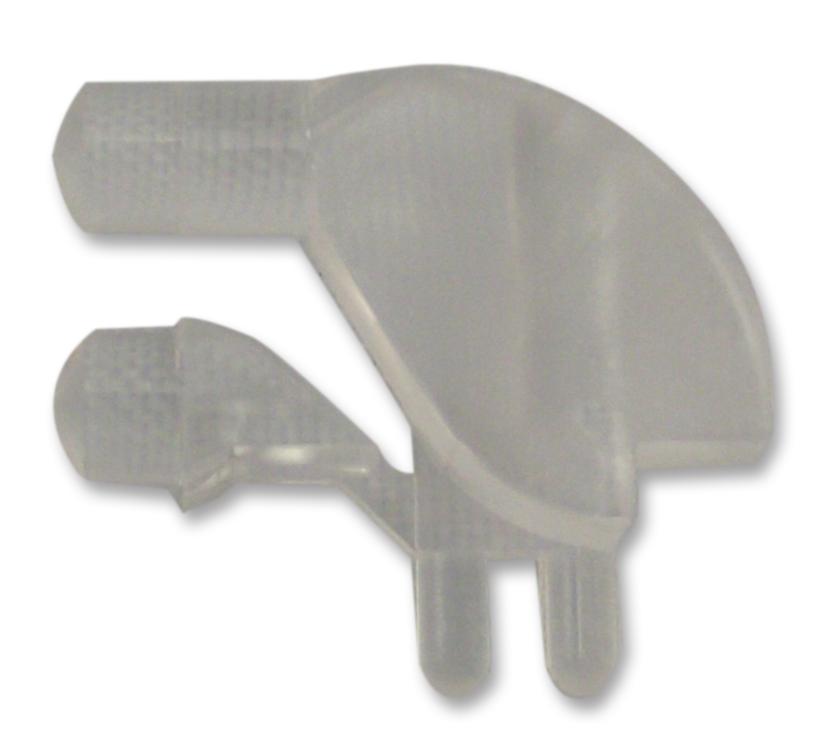

The 515-1061F is a 3mm round Bi-level Optical Light Pipe with standard design intended as a SMT compatible replacement for 553 series circuit board indicators. The light outputs are spaced vertically 0.1-inch from the PCB to the first element and then 0.2-inch between the top and bottom elements. This Optopipe� is held in place by 2 press-fit pins along the bottom of the device. The light pipe is not attached to the panel at any point but can protrude through holes in the panel. The light source is Dialight's 597 series type 1208 LED. It is made up of water clear transmissive polycarbonate and has a 35% oxygen index body.
- UL94V-0 Flammability rating
- ESD protection (circuit isolation from front panel)
- Wide viewing angle
- Secures to PCB by press-fit
Applications
LED Lighting, Fibre Optics
Product details
| Length: 13.97mm |
| No. of Light Pipes: 2Pipes |
| Light Pipe Shape: Circular |
| Light Pipe Mounting: Press Fit |
| Light Pipe Colour: Transparent |
| Product Range: - |
Other details
| Brand | DIALIGHT |
| Part Number | 515-1061F |
| Quantity | Each |
| Technical Data Sheet EN |  |
