Fermion VL6180X ToF distance ranging sensor (5-100mm) (breakout). The STMicroelectronics VL6180X time of flight ranging sensor embeds ST's patented FlightSense�technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.
- Simultaneous measurement of distance and ambient light
- VCSEL light source (Emitter: 940nm invisible laser (VCSEL))
- Strong anti-interference
- 3.3V to 5.5V operating voltage
- Operating current is �5mA
- 0x29 I2C address
- Operating temperature range -20°C to +85°C
Contents

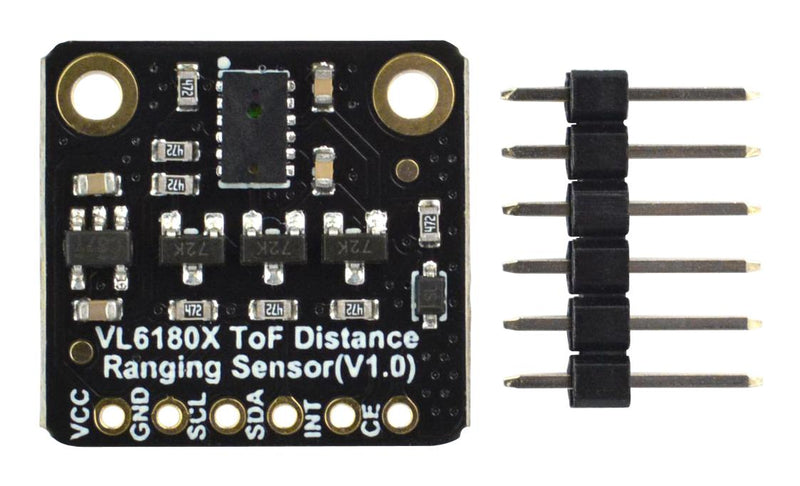

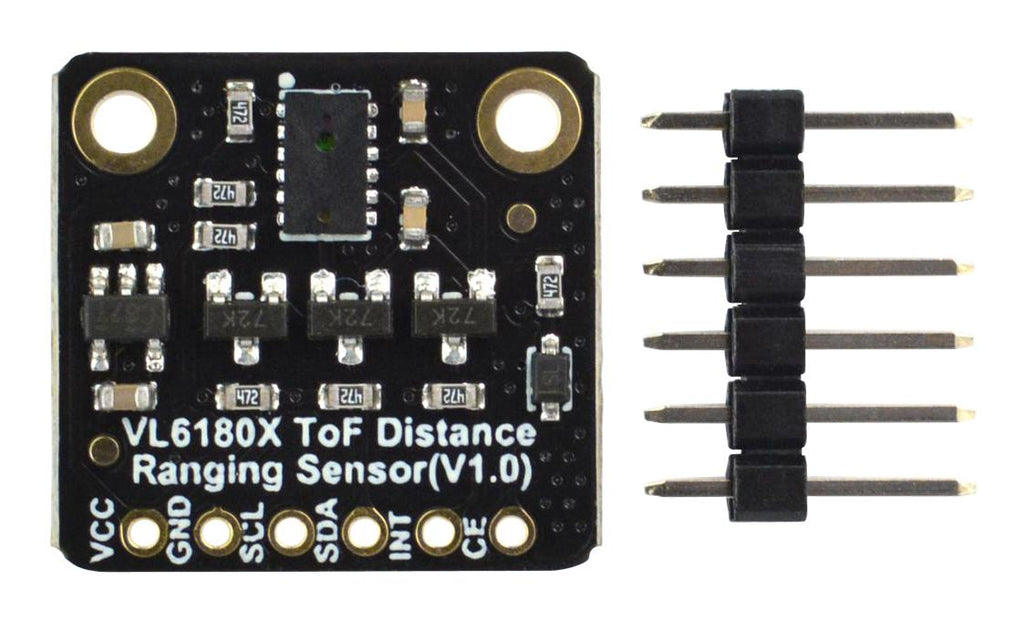

Fermion VL6180X ToF distance ranging sensor (Breakout), 2.54-6P black single row pin header.
Product details
| Accessory Type |
ToF Distance Ranging Sensor |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
SEN0427 |
| Quantity |
Each |
