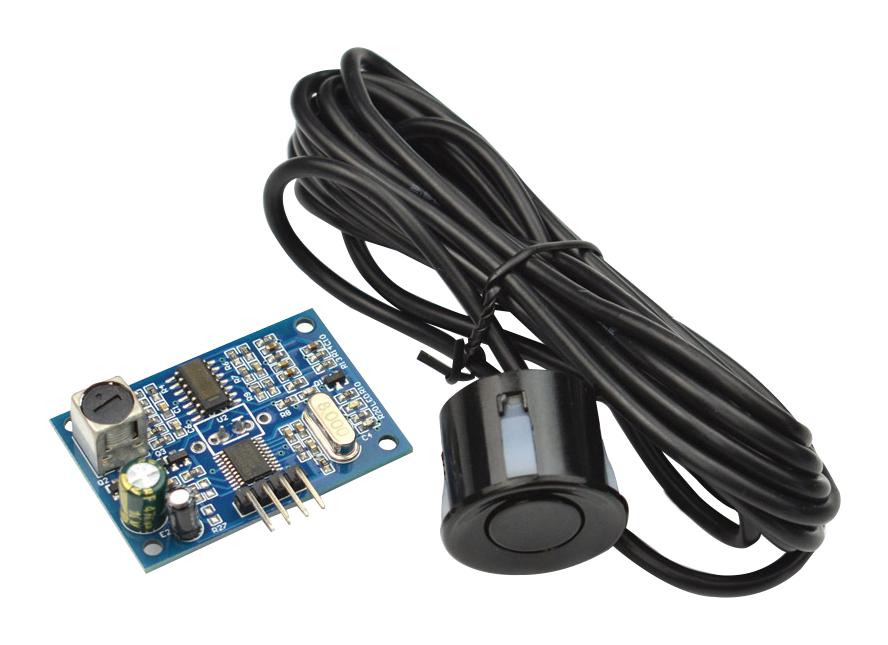

Waterproof ultrasonic sensor with separate probe suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection, etc.
- Operating voltage range from 3VDC to 5VDC
- Static current: >8mA
- Operating current of 30mA
- Operating range from 20cm to 6m
- Resolution of 1mm
- Detecting angle is < 75°
- Operating temperature range from -20 ~ 70°C
- 2.5m cable length

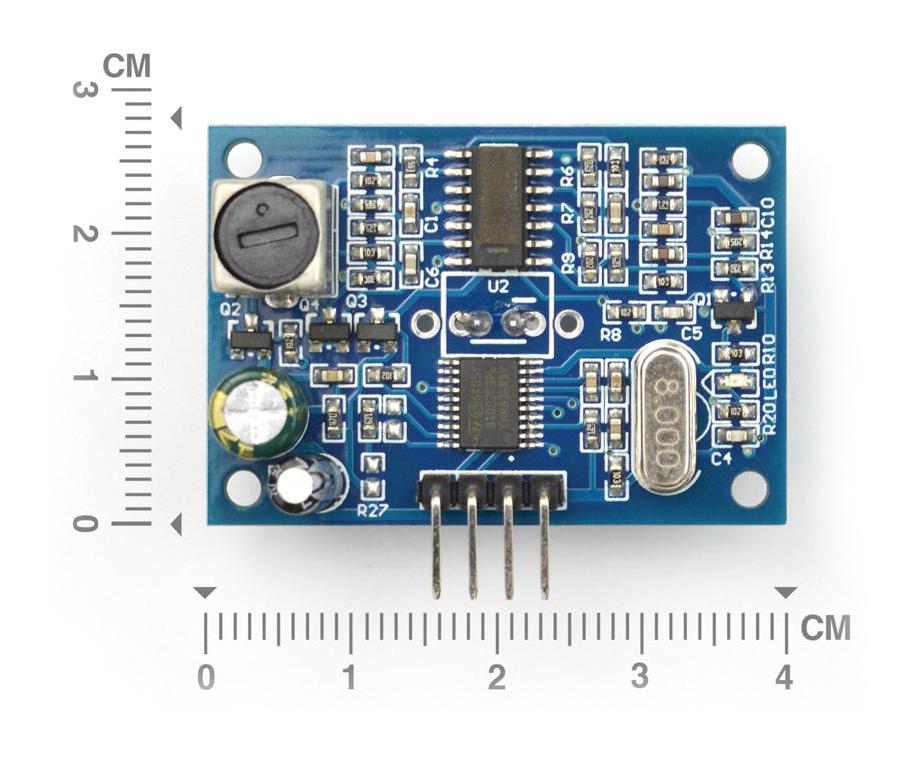

- Dimension is L42mm*W29mm*H12mm/1.26*0.87*0.36inches
Product details
| Accessory Type |
Waterproof Ultrasonic Sensor with Separate Probe |
| For Use With |
DFRduino UNO Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
SEN0208 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
