- URM04 ultrasonic sensor using RS485 interface which allows multiple sensors used simultaneously
- Developed based upon popular URM37 ultrasonic sensor
- Up to 32 URM04 may be connected together in a network
- This sensor REQUIRES a RS485 interface, it can not be connected directly to an Arduino
- Operating voltage is +5V, current is less than or equal to 20mA
- 4cm to 500cm (1.6in-197in) detecting range, 1cm (0.4in) resolution, 40KHz frequency
- Temperature sensor (2bits reading from serial port)
- 0x11 default device address, 19200 default device baudrate
- Size is 34mm x 51mm (1.3 x 2inch), 30g weight
Contents

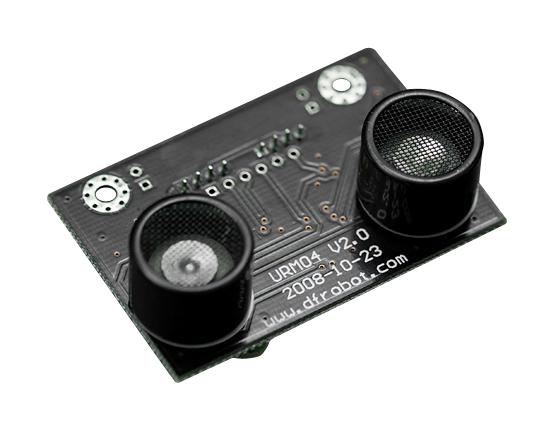

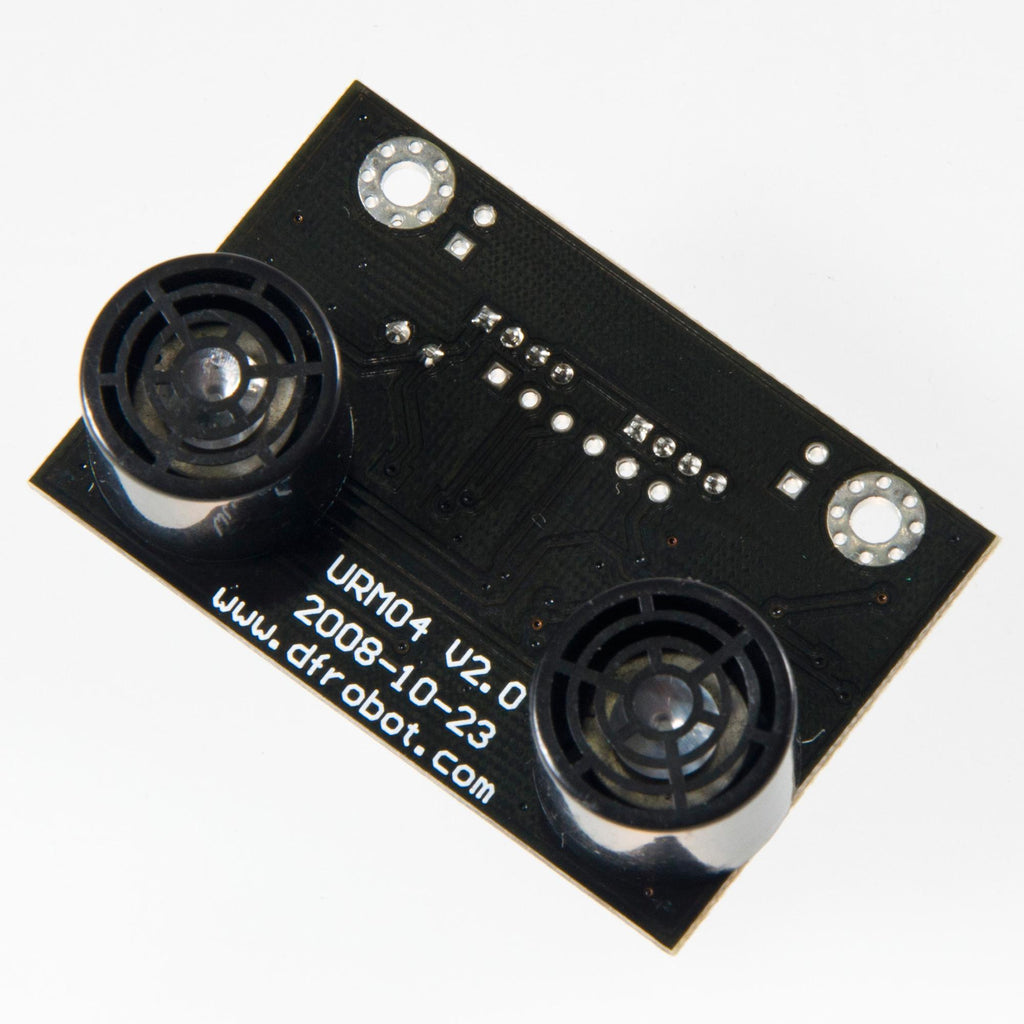

URM04 v2.0 ultrasonic sensor, Wire with 4p JST connector(x1).
Product details
| Accessory Type |
URM04 Ultrasonic Sensor (RS485) |
| For Use With |
Arduino Development Boards |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
SEN0002 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Product Page EN |
|
