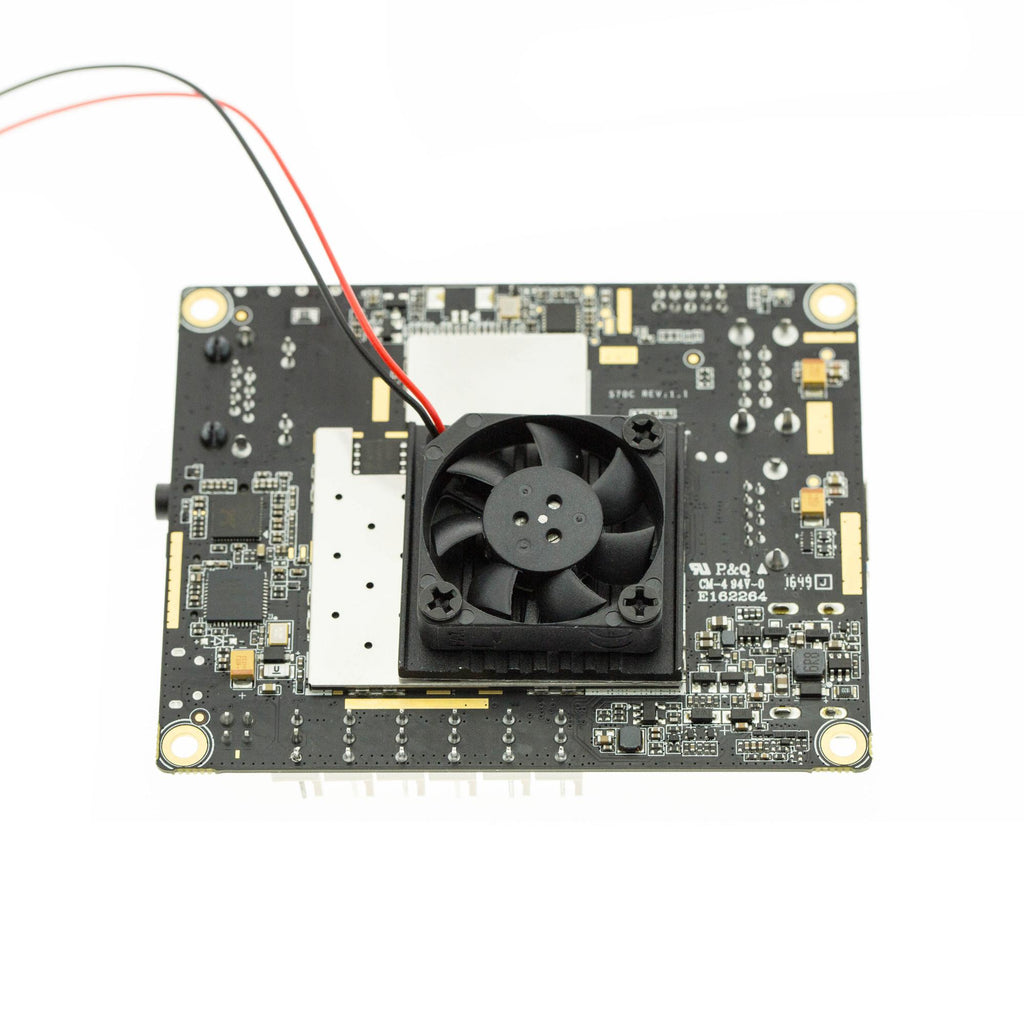

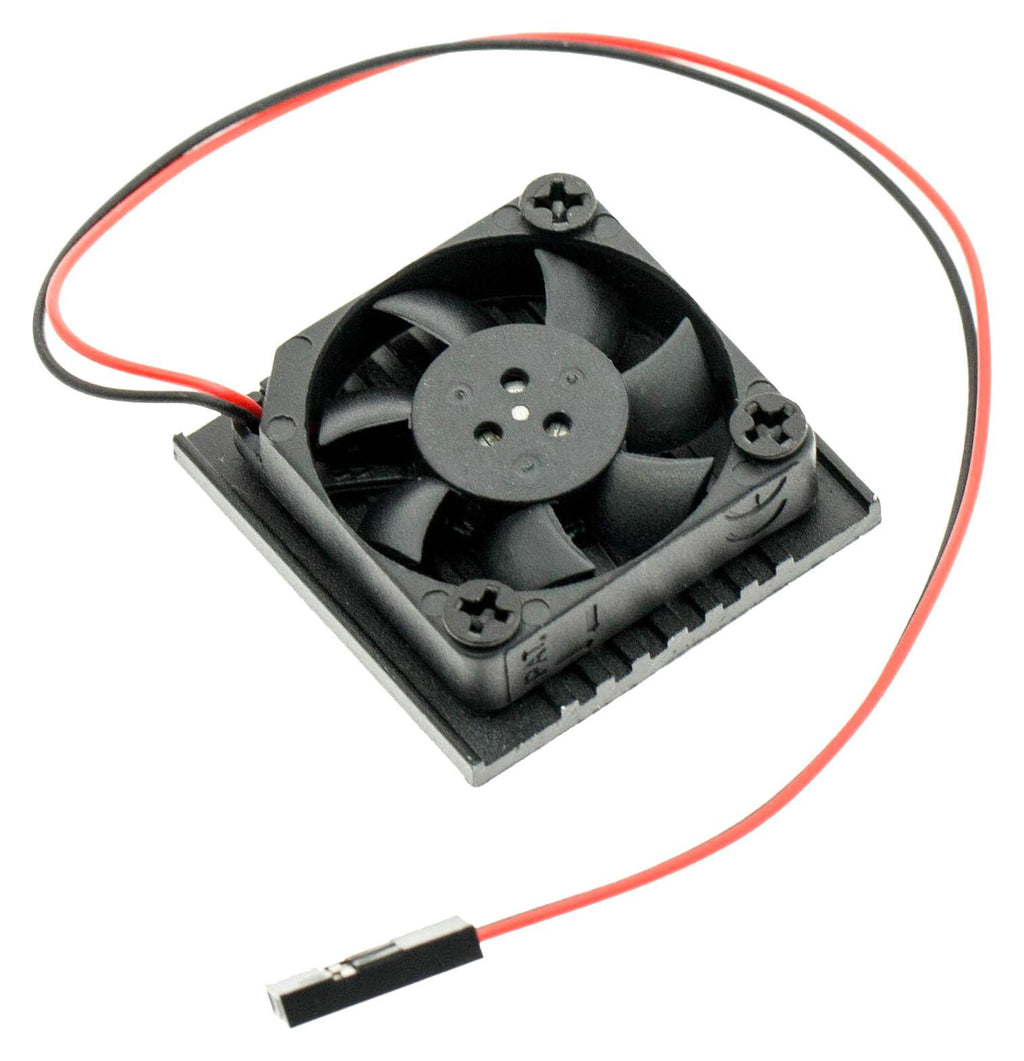

- Aluminium heatsink cooling fan for LattePanda V1 single board computer
- Low profile ultra low noise fan keeps LattePanda running at a stable temperature
- 2-pin jumper connector makes it easily to connect with the CN2 headers on the board

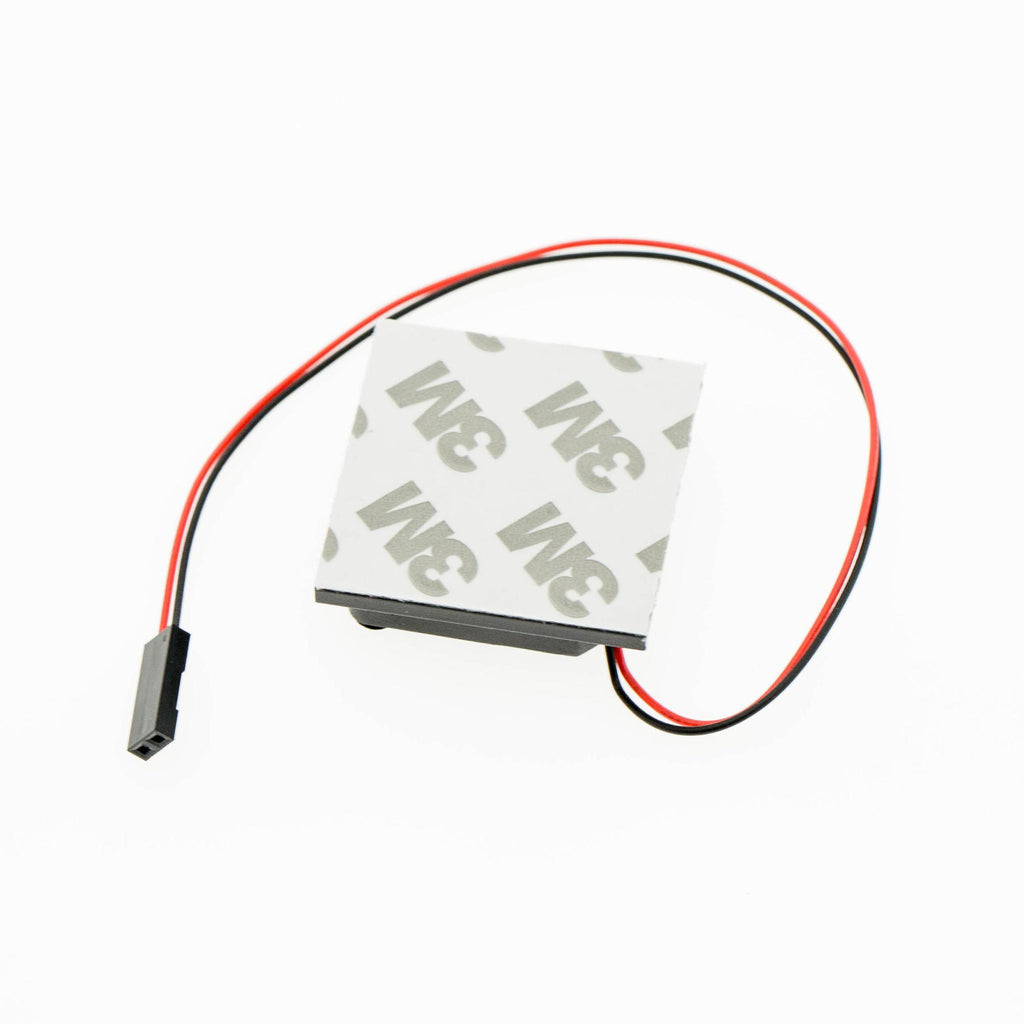

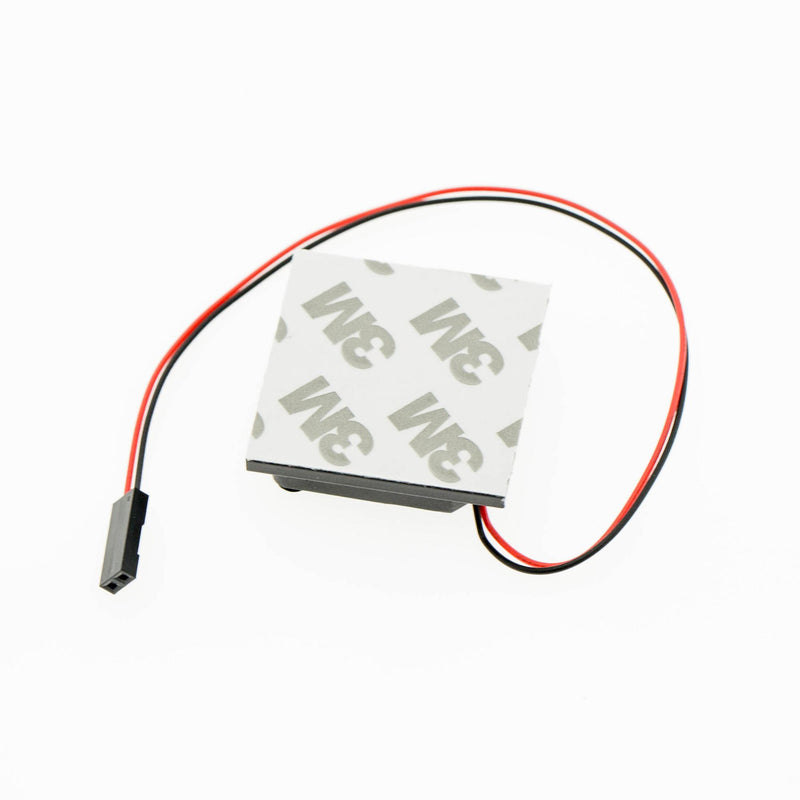

- Includes an adhesive thermal pad on the rear that can stick on the metal shield on the board
- With its aluminium casing, heat from CPU will be absorbed fast, giving best performance
- 2.54mm 2-pin DuPont female connector interface
- Not compatible with LattePanda Alpha & Delta
- Operating voltage is 5V, operating current is 0.14A
- 7500 RPM rated speed, 18cm cable length
- Dimension is 35 x 35 x 10mm, fan dimension is 30 x 30 x 7mm, weight is 14g
Product details
| Accessory Type |
Aluminum Heatsink Cooling Fan |
| For Use With |
LattePanda V1 Dev Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
FIT0504 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Manufacturer Product Page EN |
|
