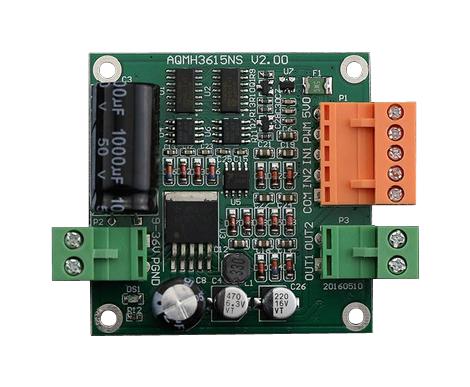

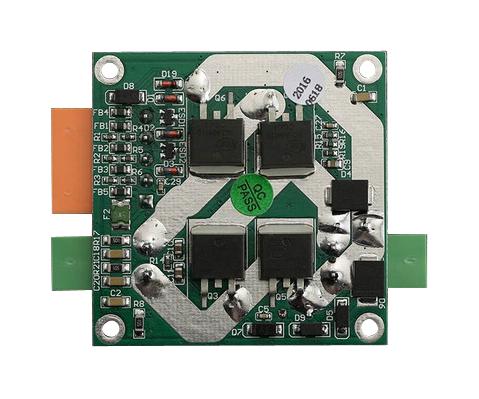

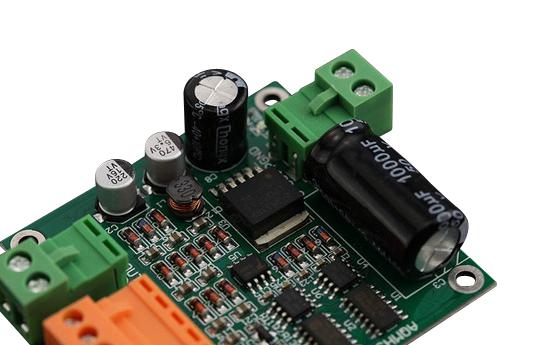

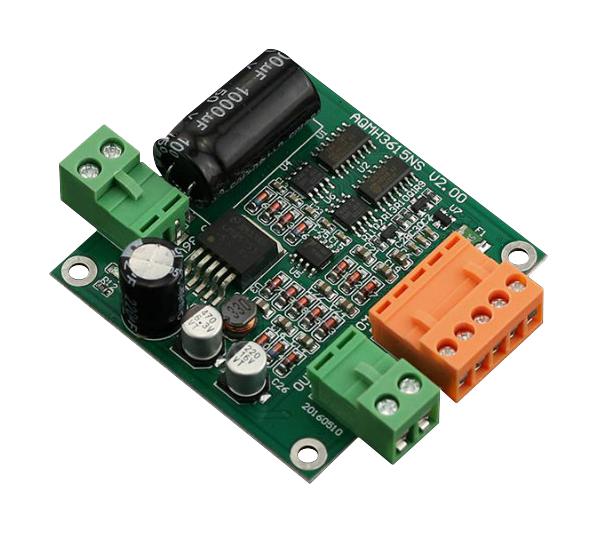

DRI0042 is a 15A single DC motor driver. This is an ultra small size DC motor driver for room limited projects, while the impressive IC - LM2575 could provide a powerful way to drive 36V at 15A motors. Also its UVLO (Under Voltage Latch-Out) feature provides a safe guard for your system. Besides all, it is very considerate to own an 5V output for Arduino or any other devices, and its interface is ESD (electro-static discharge) protection.
- Voltage supply range from 12VDC to 36VDC
- Voltage supply limit range from 6.5V to 40V
- Maximum continuous operating current is 12A (no heat sink)
- PWM speed
- Working temperature range from -25°C to 85°C
- M3 mounting hole
Contents
15A Single DC motor driver x1.
Product details
Silicon Manufacturer |
Analog Devices |
Core Architecture |
- |
Core Sub-Architecture |
- |
Silicon Core Number |
LM2575Â |
Silicon Family Name |
- |
For Use With |
Arduino UNO v3.0 [R3] Board |
Kit Contents |
DC Motor Driver LM2575 |
Product Range |
- |
Other details
Brand |
DFROBOT |
Part Number |
DRI0042 |
Quantity |
Each |
Technical Data Sheet EN |
|
