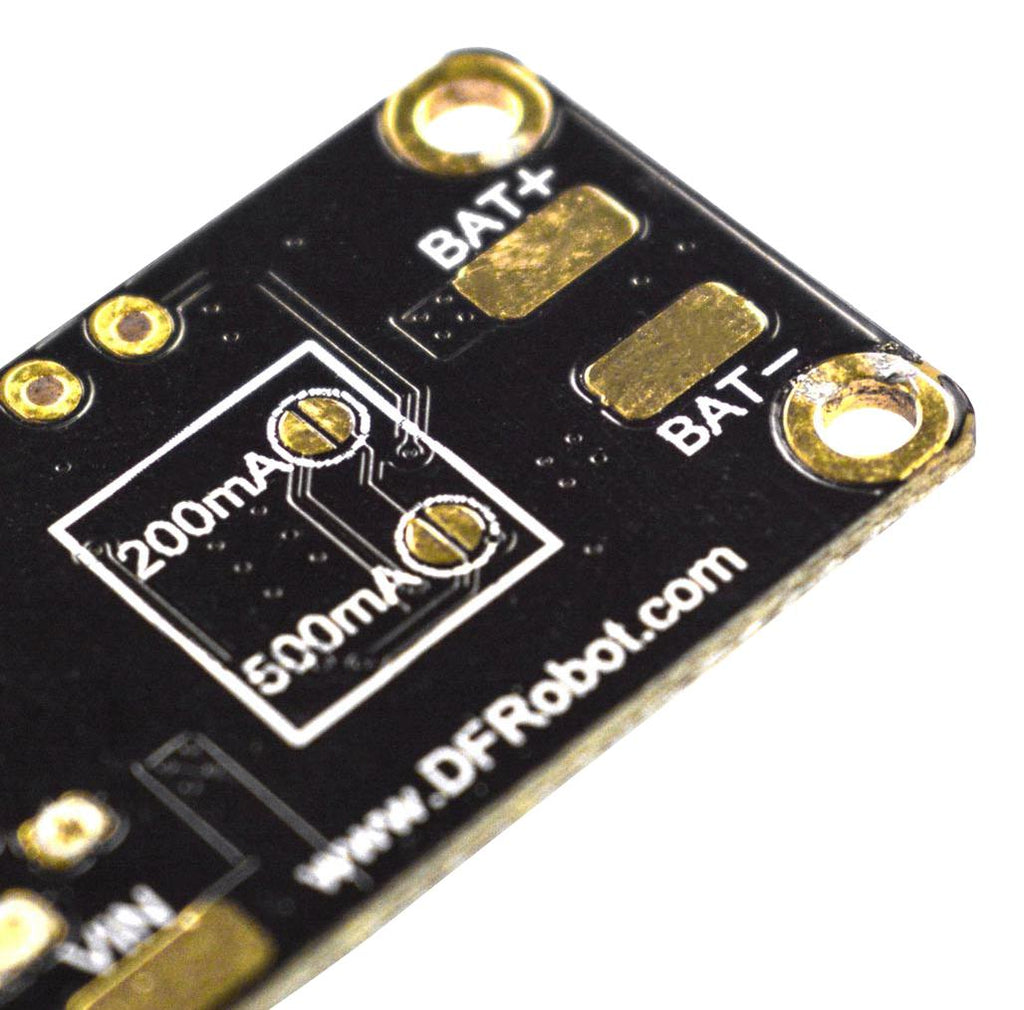

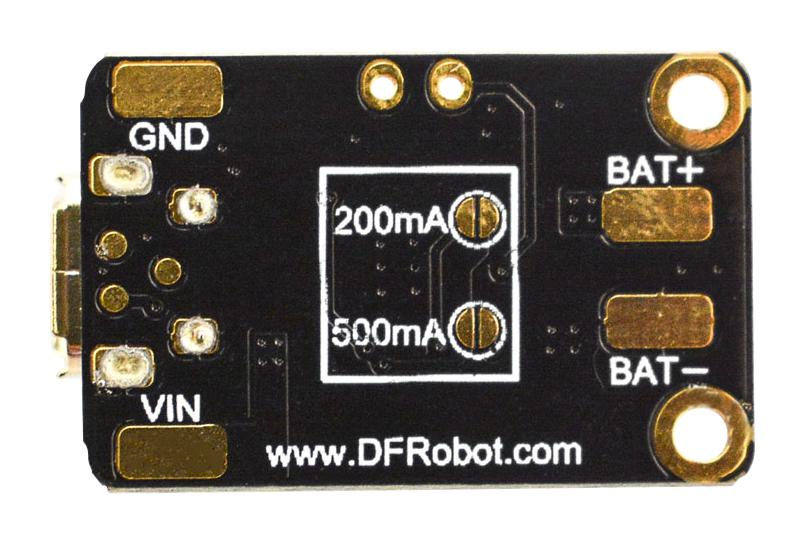

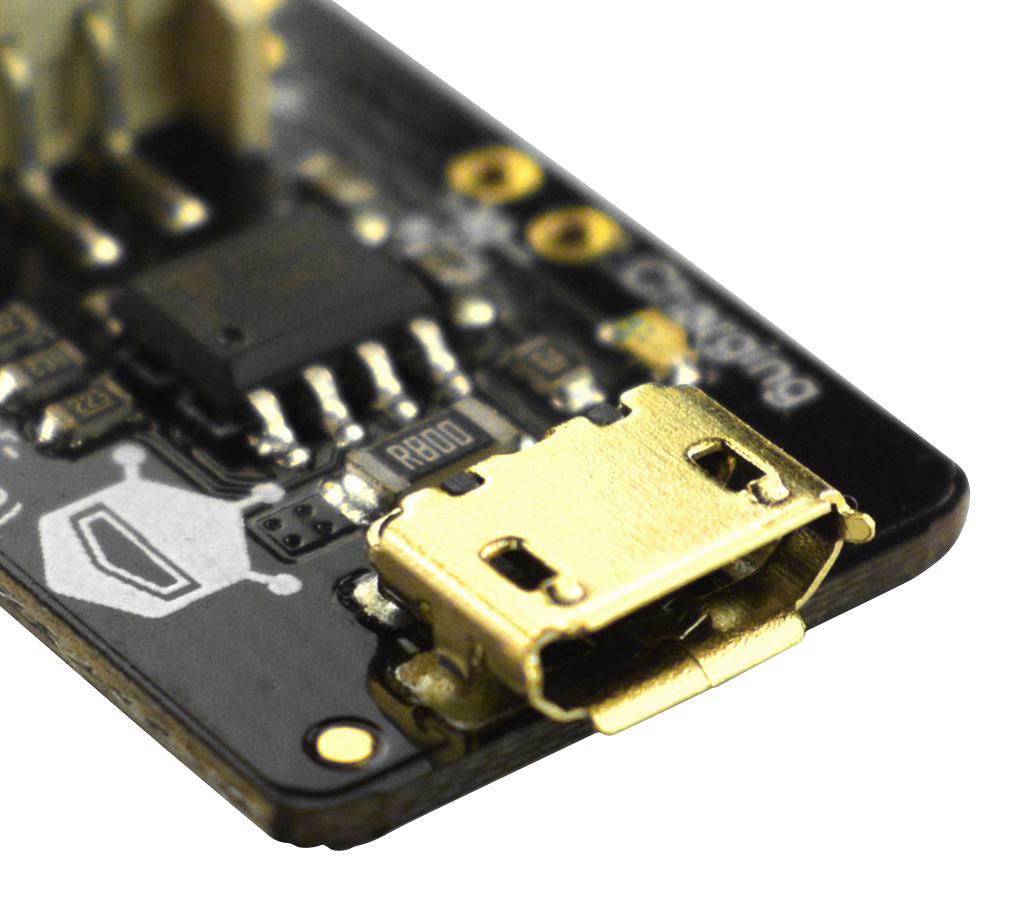

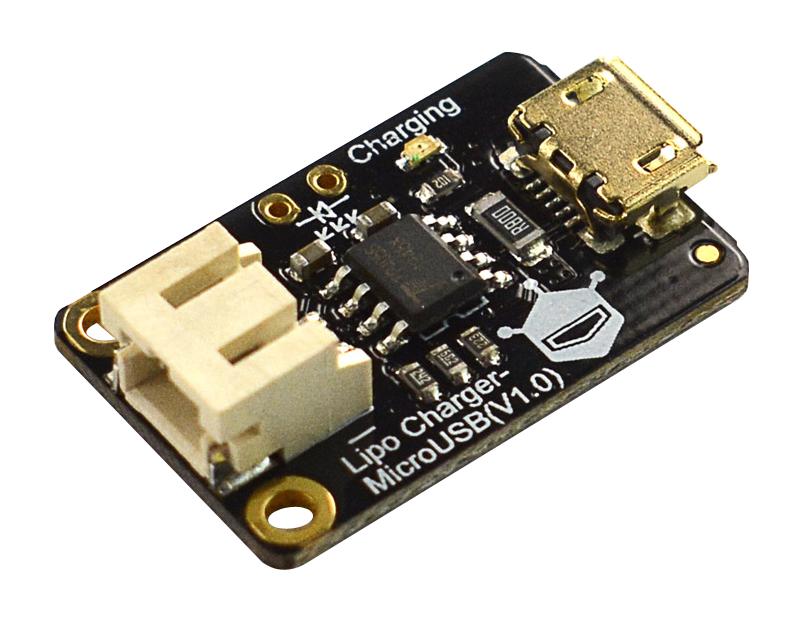

DFR0667 is a lipo charger-microUSB. This charger - microUSB is designed for single-cell 3.7V lithium battery. With its tiny body, you can easily integrate it into your applications. The charger adopts TP4056X lithium battery charging IC, which guarantees you quick and safe charging. Three output current modes can be easily switched by selecting different bonding pads on the backside (The default output current is set to 50mA). The thermal feedback inside the TP4056X can automatically adjust the charging current to limit the chip temperature under high power operation or high ambient temperature conditions.
- Multiple current output modes (50/200/500mA)

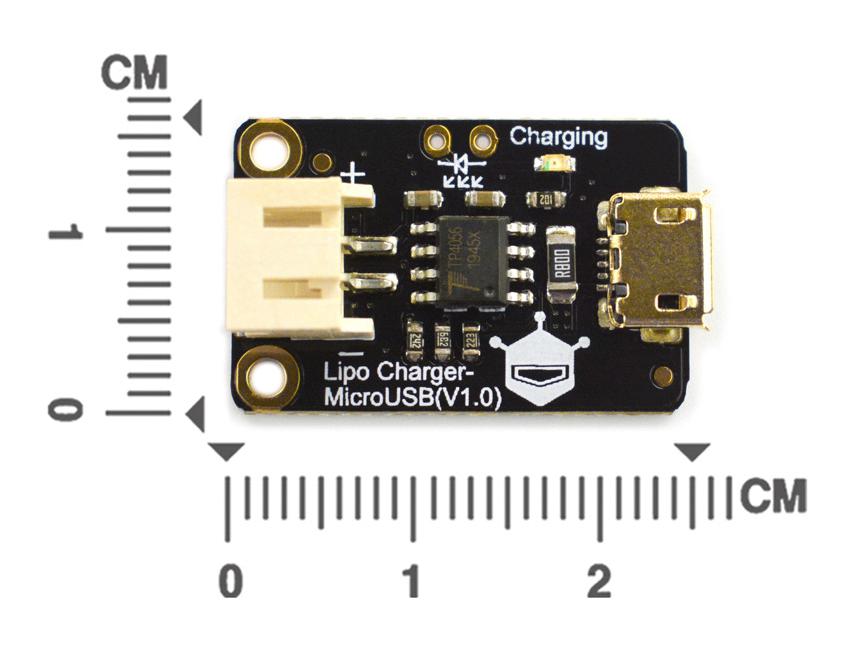

- Dimension: 16.5 x 25mm/0.65 x 0.98"
- External indicator available
- Safe and quick charging
Product details
| Accessory Type |
Lipo Charger-MicroUSB Board |
| For Use With |
Arduino Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0667 |
| Quantity |
Each |
