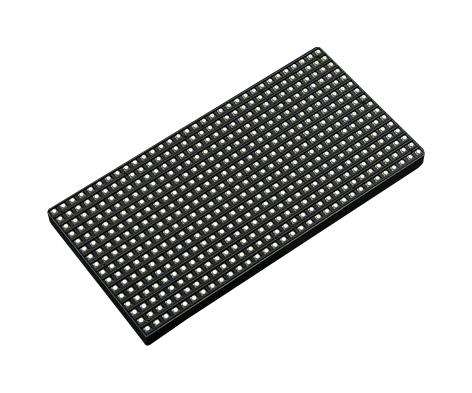

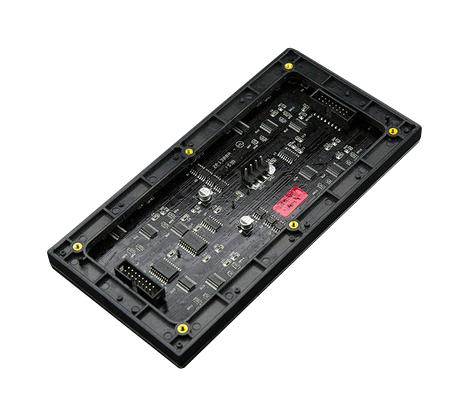

DFR0471 is a 32x16 RGB LED matrix panel. It has 512 full-colour RGB LEDs in all. Each LED can be independently addressed and controlled. It requires at least 13 digital GPIOs to control the LED matrix.
- 5VDC operating voltage
- Maximum power consumption is <1000w/�
- Level of viewing angle is �160°
- Synchronous control mode
- 1/8 scan rate drive mode
- Repetition frequency is �60Hz
- White balance brightness is �1200cd/�
- Refresh frequency is �300Hz
- MTTF is �5000 hours
- Dimension is 192mm x 96mm
Contents

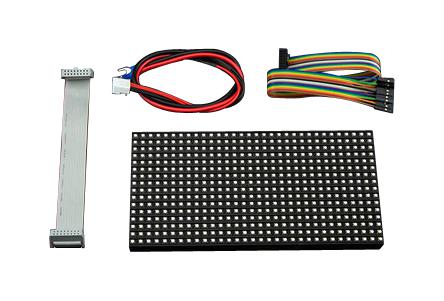

32x16 RGB LED matrix panel (6mm pitch) x1, IDC to XH2.54 cable x1, IDC to IDC cable x1, Power supply cable x1.
Product details
| Accessory Type |
RGB LED Matrix Panel |
| For Use With |
Arduino UNO R3 Board |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0471 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
