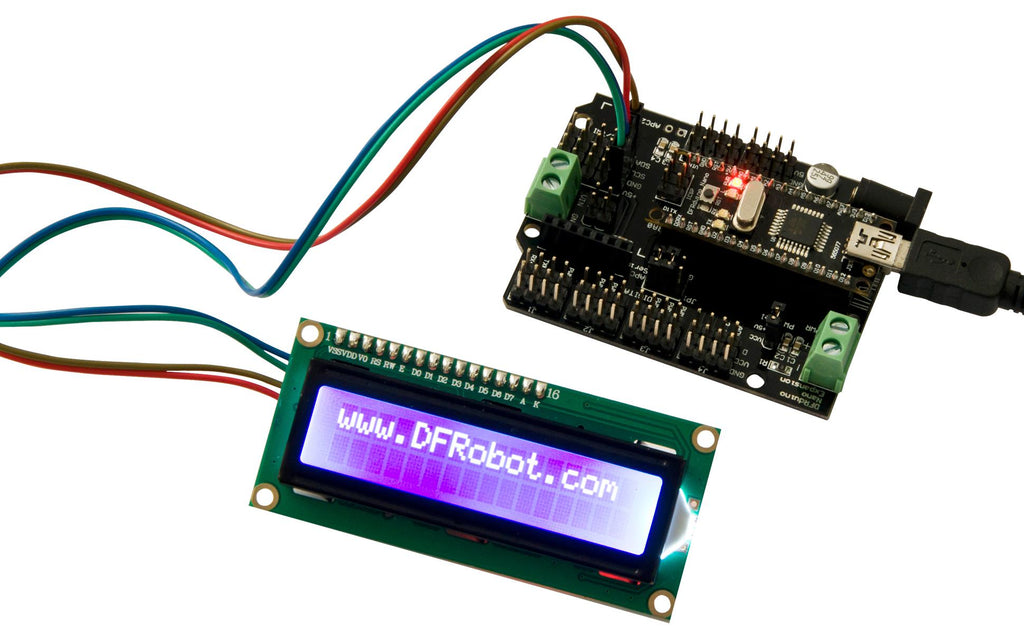

16x2 LCD display screen with I2C interface is able to display 16x2 characters on 2 lines, white characters on blue background. With limited pin resources, your project will quickly run out of resources using normal LCDs. With this I2C interface LCD module, you only need 2 lines (I2C)to display the information. If you already have I2C devices in your project, this LCD module actually cost no more resources at all. The address can be set from 0x20-0x27. Fantastic for Arduino or gadgeteer based projects.
- Compatible with Arduino/Genuino UNO, Leonardo, Mega, 101 (Intel Curie), Micro, Nano, Mini
- I2C Address:0x20-0x27(0x20 default)
- Back lit (Blue with white char colour)
- Supply voltage: 5V
- Interface:I2C/TWI x1, Gadgeteer interface x2
- Adjustable contrast
- Size: 80x36x20mmz(3.1x1.4x0.7in)
Contents
I2C 16x2 LCD screen (Arduino compatible) x1, 1.27mm ribbon IDC10 cable x 1.
Product details
| Silicon Manufacturer |
- |
| Core Architecture |
- |
| Core Sub-Architecture |
- |
| Silicon Core Number |
- |
| Silicon Family Name |
- |
| For Use With |
Arduino/Genuino UNO, Leonardo, Mega, 101 (Intel Curie), Micro, Nano and Mini Boards |
| Kit Contents |
I2C 16x2 Arduino LCD Display Module, 1.27 mm Ribbon IDC10 Cable |
| Product Range |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0063 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
