Description

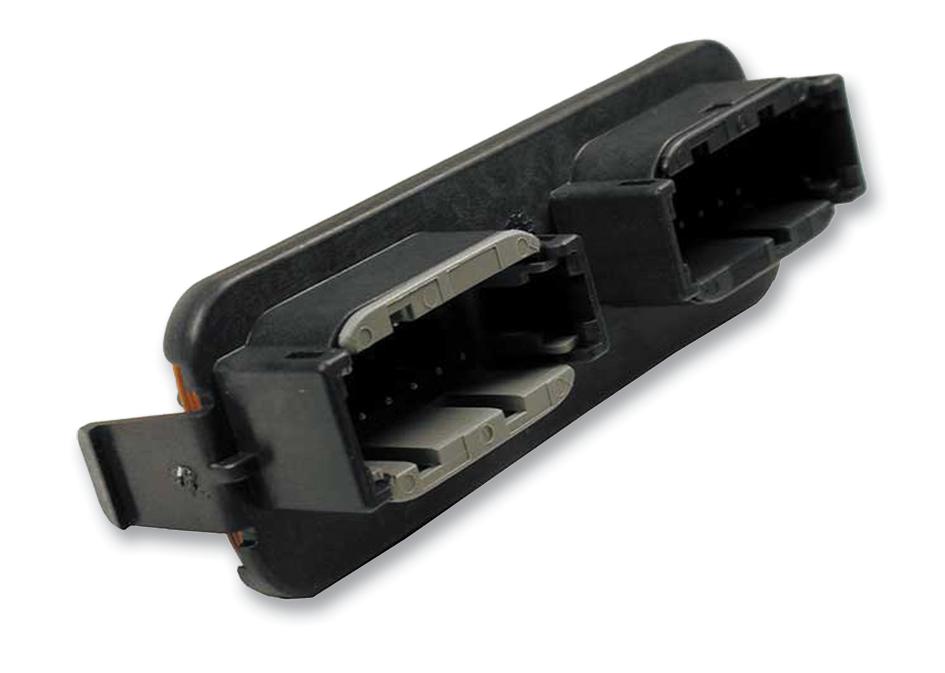

The DTM series from Deutsch are environmentally sealed connectors designed specifically for cable to cable application. These connectors are developed for lower amperage with multipin and low cost application. DTM series connectors accept 20 size pins and sockets with 7.5amp continuous capacity and accommodate wire sizes 22AWG to 16AWG.
- 2, 3, 4, 6, 8 and 12 cavity arrangements
- In-line, flange or PCB mount
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedgelocks assure contact alignment and retention
- Available in both plug and receptacle
Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | DEUTSCH - TE CONNECTIVITY |
| Part Number | DTM13-12PA-12PB-R008 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Manufacturer Catalogue EN | |
| Drawing EN | |
