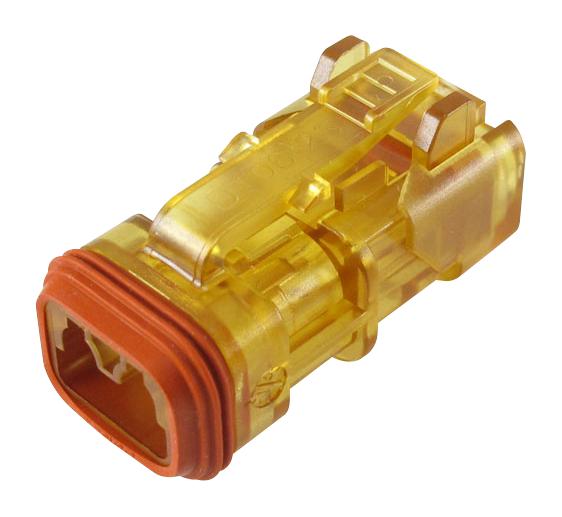

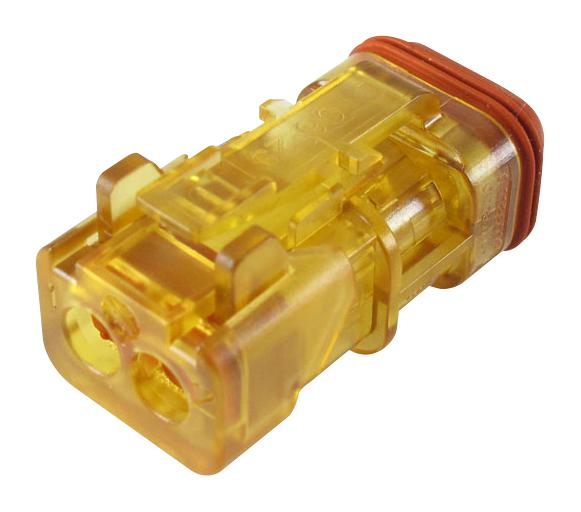

The DT Detector, a part of the DEUTSCH DT Series, has an integrated LED that helps with troubleshooting. The environmentally sealed connector has a transparent housing that allows quick visual diagnosis.
- Integrated LED circuit on the wedgelock
- Accepts all size 16 DEUTSCH contacts, solid or stamped & formed
- Multi-directional viewing of LED through transparent housing
- Joint retention fingers allow both contacts to be removed at the same time
- Compatible with Pulse Width Modulated control
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
DEUTSCH - TE CONNECTIVITY |
| Part Number |
DT06-2S-SDT-CE27 |
| Quantity |
Each |
| Drawing EN |
 |
| Manufacturer Catalogue EN |
|
| Product Change Notice EN |
|
