Description

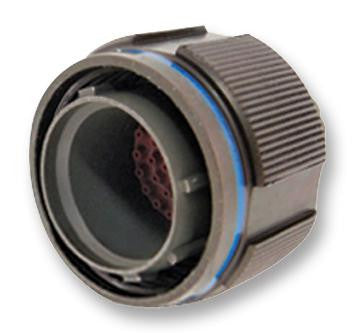

The DTS26F13-4PN-LC from Deutsch is DTS series, MIL-DTL-38999 Series III equivalent straight plug with 4 contacts. DTS series connectors are available in wide range of shell materials and finishes in 9 shell sizes (09 to 25) with 48, 500, 1000 and 2000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration. These connectors are fully intermatable and intermountable with all other manufacturer's MIL-DTL-38999 Series III connectors.
- High reliability, moisture and corrosion resistant
- Outstanding EMI, RFI shielding protection (100MHz to 10GHz)
- 500 mating cycles, high durability versions are available with 1500 mating cycles
- Operates at extreme temperature range of -65°C to +200°C based on shell finish
- Minimum insulation resistance is 5000Mohm (at 25°C)
- Scoop proof to eliminate the possibility of contact damage
- Self locking connector system, triple start threaded coupling
- Thermoplastic clips moulded directly with insert
- Aluminium alloy body material with electroless nickel plating
- Copper alloy crimp pin contacts with gold plating
Applications
Commercial, Industrial
Product details
| Contact Material | Copper Alloy |
| Circular Connector Shell Style | Straight Plug |
| Contact Plating | Gold |
| Insert Arrangement | 13-4 |
| Connector Body Material | Aluminium Alloy Body |
| Service Class | EMI |
| Coupling Style | Threaded |
| No. of Contacts | 4Contacts |
| Product Range | DTS Series |
| Equivalent Military Specification | MIL-DTL-38999 Series III |
| Connector Body Plating | Electroless Nickel |
| Insert Rotation | N |
| Circular Contact Type | Crimp Pin - Contacts Not Supplied |
Other details
| Brand | DEUTSCH |
| Part Number | DTS26F13-4PN-LC |
| Quantity | Each |
| Technical Data Sheet EN |  |
