Description
Desview R5 II Overview
- 1Description
- 2
- 3Features at a Glance
- 4Touchscreen
- 5Display Tools
The

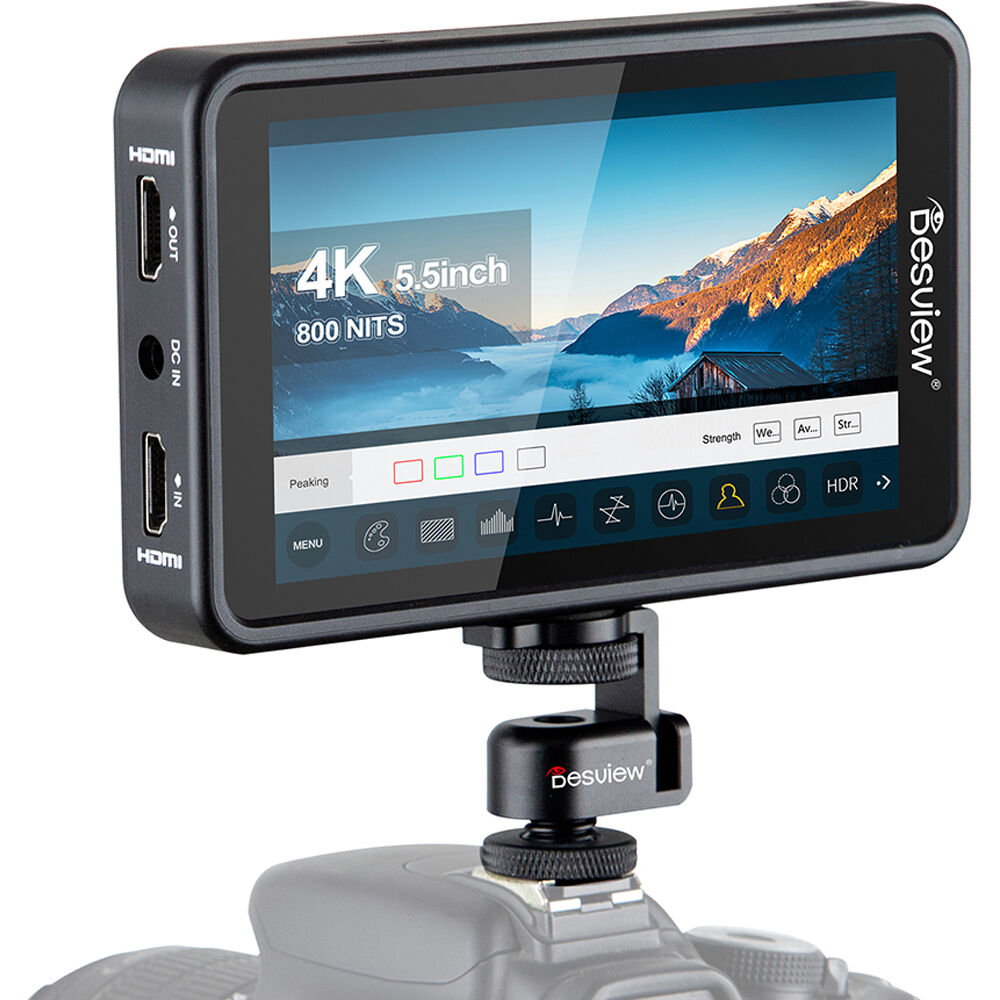

R5II 5.5" On-Camera Touch Monitor from
Desview is a lightweight and portable on-camera monitor boasting a bright 800 cd/m² display with a 178° viewing angle and a screen resolution of 1920 x 1080. Packed with useful tools and features, including touchscreen and pinch-to-zoom, the R5II has an HDMI input that handles up to DCI 4K24 and an HDMI loop out. It also offers a 3.5mm headphone jack and a USB input for loading custom 3D LUTs using the supplied USB thumb drive.

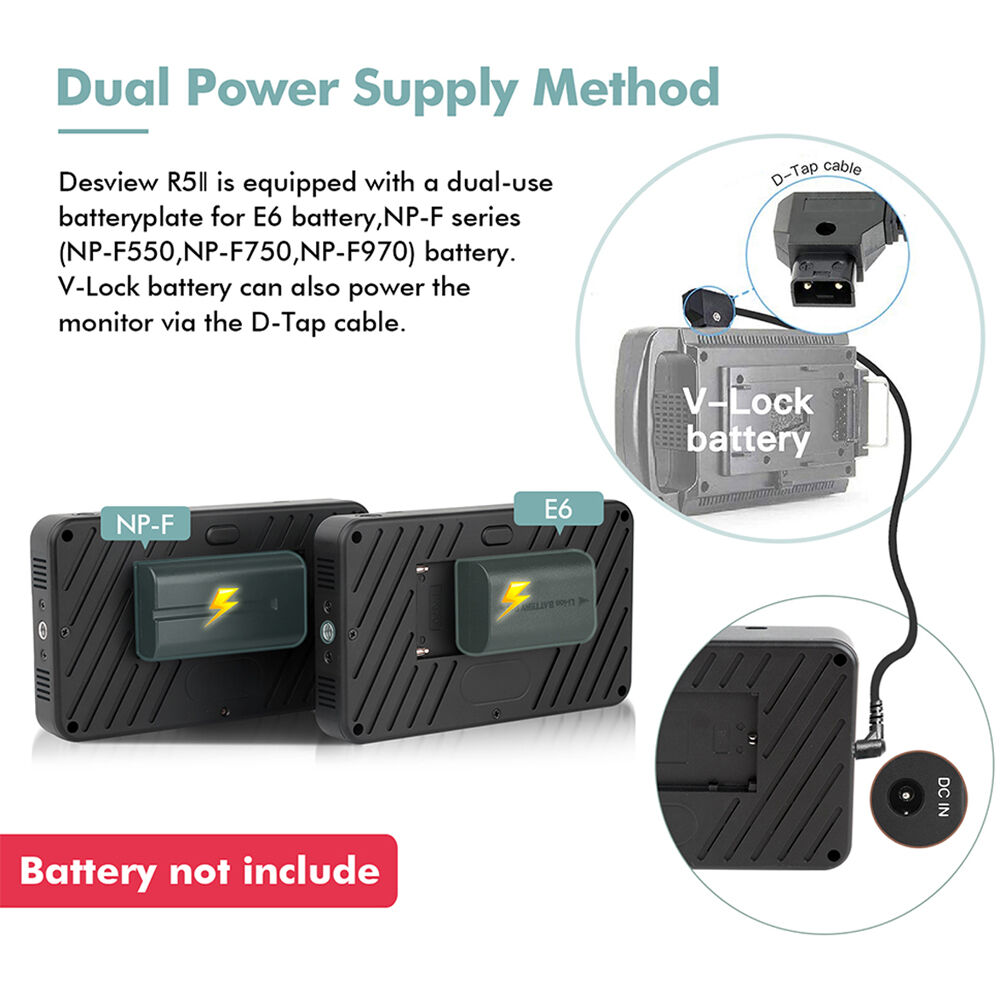

HDR support includes HGL and PQ modes, and multiple ratio anamorphic options include 1.33x, 1.5x, 1.66x, 1.79x, and 2.0x de-squeeze functions. A dual-purpose battery slot on the rear of the panel allows you to choose between using Sony NP-F style or Canon LP-E6 batteries.
Features at a Glance
Daylight-viewable, 5.5" touchscreen on-camera monitor with 800 cd/m² brightness.
Slim, lightweight design with touchscreen IPS LCD panel.
HDMI supports video input up to DCI/UHD 4K30.
Two 1/4"-20 mounting threads on the side and bottom of the monitor.
Touchscreen
The 5.5" touchscreen panel features 1920 x 1080 resolution and a 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch-to-zoom, which helps check every corner and detail of the image.
The 800 cd/m² high brightness provides a clear display, even when filming in bright exteriors.
Display Tools
Pixel pinch-zoom
Aspect ratios: Preset and customizable
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist, with adjustable style and intensity
Peaking, with adjustable intensity
False color
Zebra, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
LUT import via USB storage device
Audio meter display
Aspect ratios: Preset and customizable
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist, with adjustable style and intensity
Peaking, with adjustable intensity
False color
Zebra, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
LUT import via USB storage device
Audio meter display

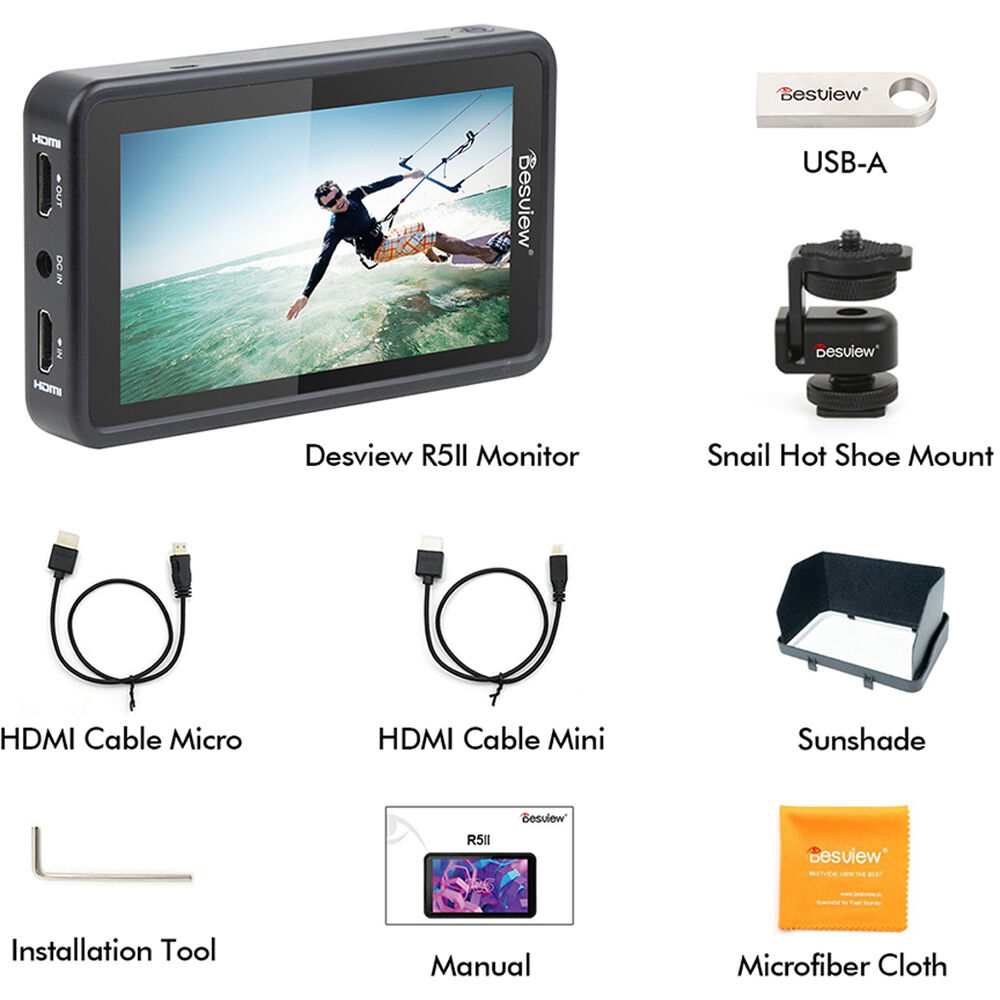

In the Box
- Desview R5II 5.5" On-Camera Touch Monitor
- Micro-HDMI Cable
- Mini HDMI Cable

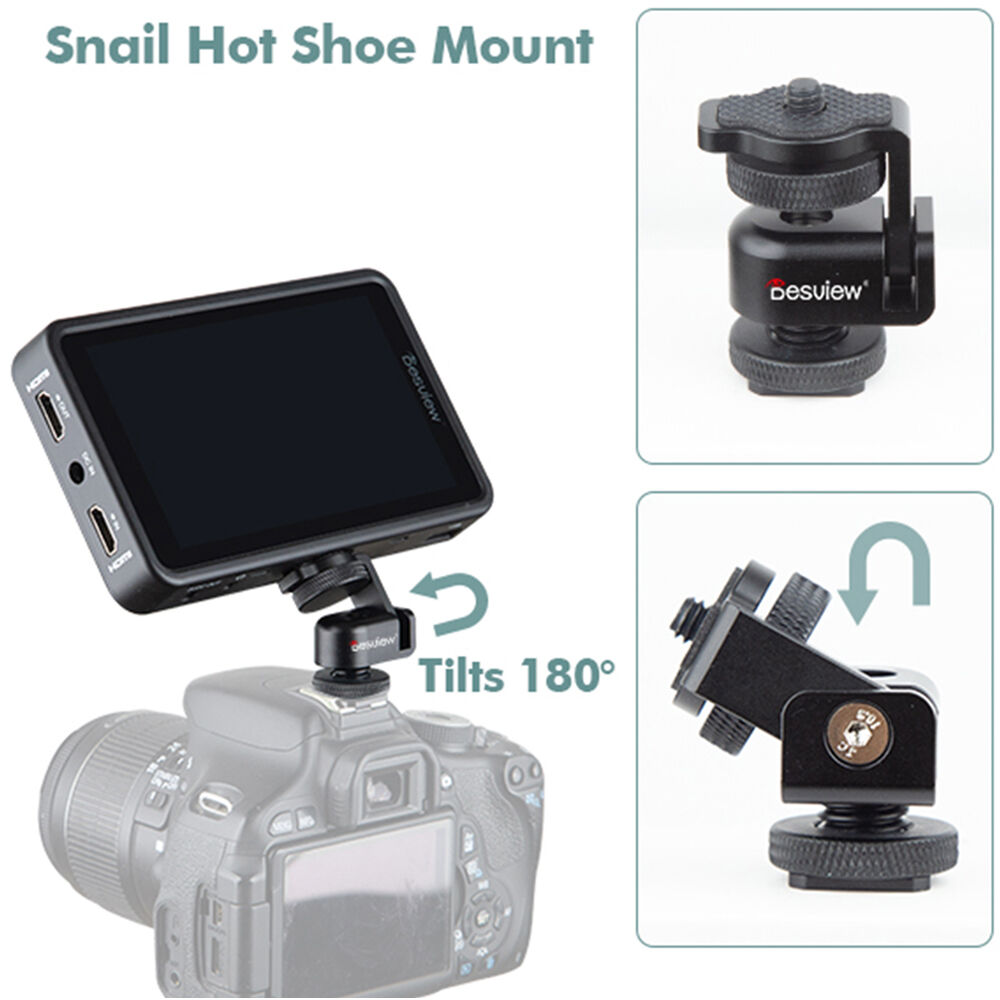

- Snail Cold Shoe
- USB Thumb Drive
- Sun Hood
- Sun Shield
- Microfiber Cloth
- Limited 1-Year Manufacturer Warranty
Not in the Box
- Essential Batteries & Chargers (Not Included)
Table of Contents
- Description
- Features at a Glance
- Touchscreen
- Display Tools
Desview R5 II Specs
Display
| Panel Type | IPS-Type LCD |
| Display Size | 5.5" / 14.0 cm |
| Screen Area | 4.76 x 2.68" / 120.96 x 68.04 mm |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° |
| Touchscreen | Yes |
| Maximum Brightness | 800 nits / cd/m2 |
| Contrast Ratio | 1000:1 |
| Dot Pitch | 0.021 x 0.063 mm |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| HDR Compatibility | Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 401 ppi |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Split - Half, Vectorscope, Waveform, Zebra |

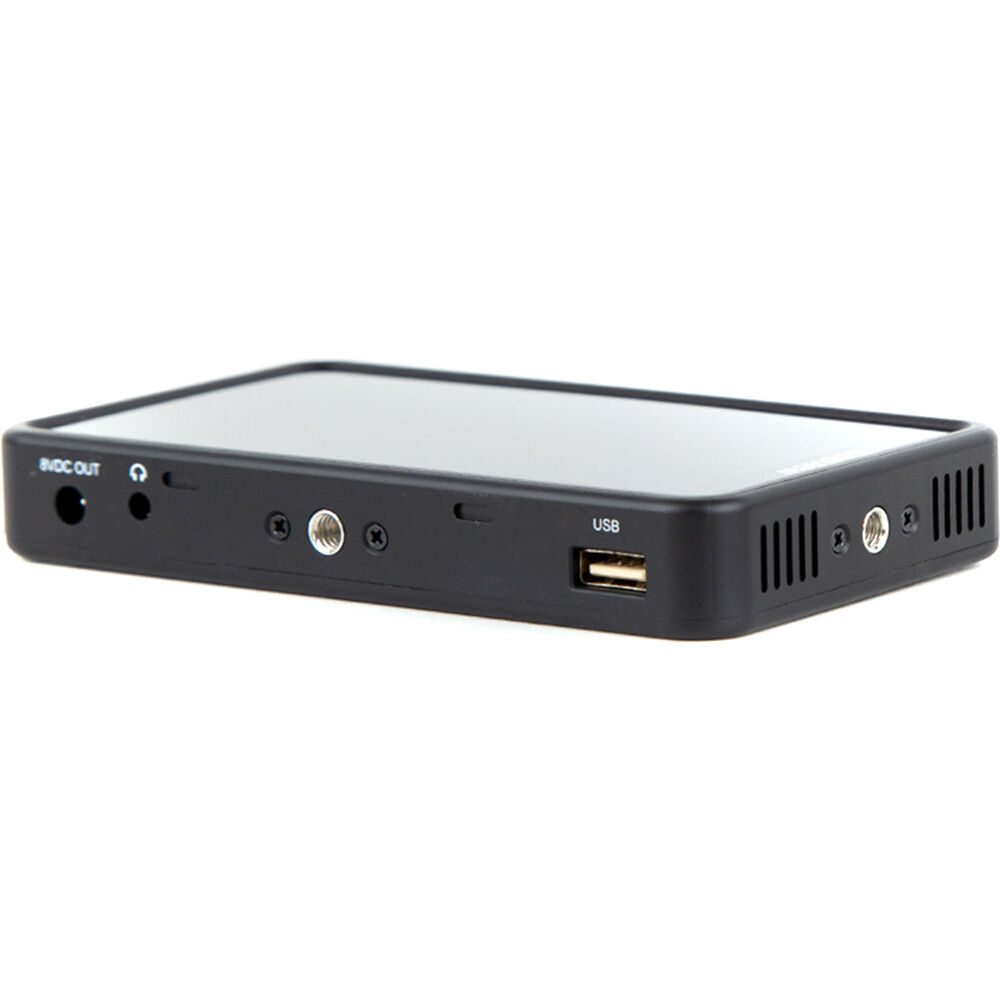

Inputs / Outputs
| Video I/O | 1 x HDMI 1.4 Input 1 x HDMI 1.4 Loop Output |
| Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power I/O | 1 x Barrel 2.1 mm (24 VDC) Input 1 x Barrel 2.1 mm (8 VDC) Output |
| Other I/O | 1 x USB-A 2.0 Input |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Bluetooth | None |
| Mobile App Compatible | No *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
Format Support
| Video Format | HDMI DCI 4K: 24 UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 |
Power
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x LP-E6, L-Series |
| Power Consumption | 9 W (Maximum) 0.1 W (Standby) |
Mounting
| Mounting | 2 x 1/4"-20 Female |
Environmental
| Operating Temperature | 12 to 87°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
General
| Dimensions | 6 x 3.5 x 0.9" / 151.4 x 89.1 x 22 mm |
| Weight | 7.1 oz / 200 g |
Packaging Info
| Package Weight | 1.285 lb |
| Box Dimensions (LxWxH) | 7.6 x 4.7 x 3.4" |
