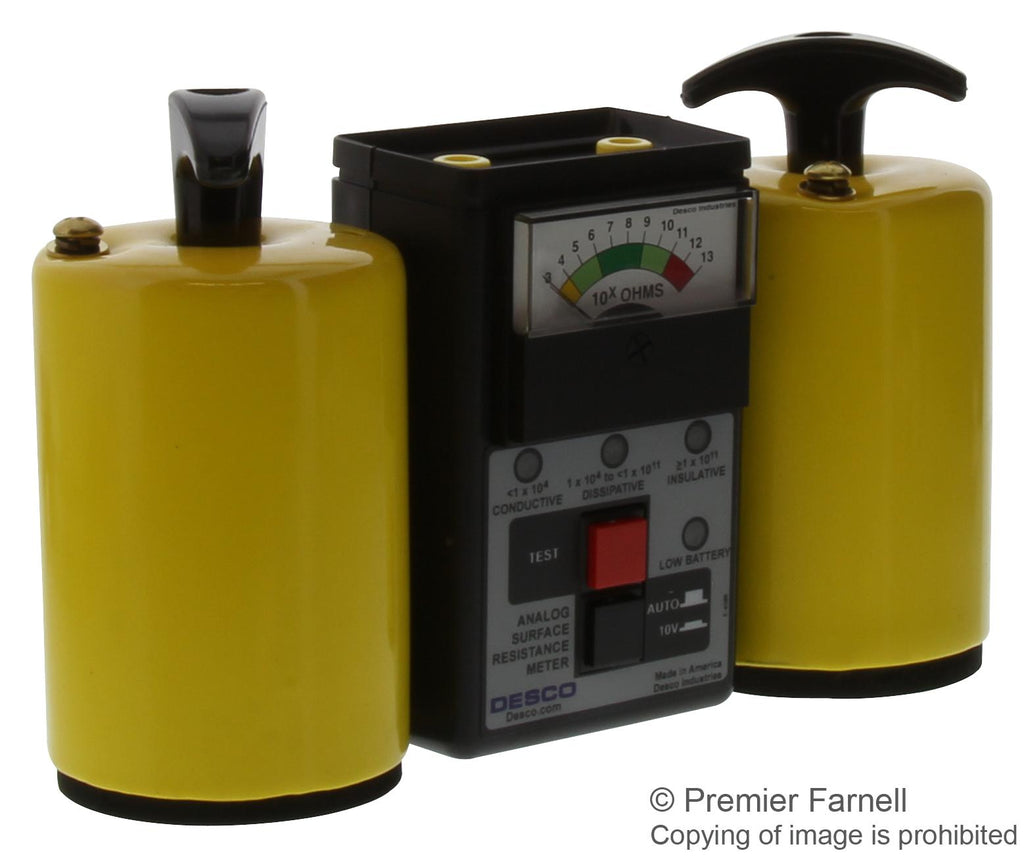

The 19784 is an Analog Surface Resistance Test Kit designed to measure resistance point-to-point (RTT) and surface to ground (RTG). The meter is equipped with an automatic test voltage selector. The test voltage will switch from 10 to 100V should the measured resistance exceed 1 x 105R.
- Analogue display
- Resistance property LEDs
- Test button
- Low battery LED
- Test voltage button
- ±1/2 Decade accuracy
Applications
Test & Measurement, Industrial
Product details
| Wire Connection |
- |
| Resistance Measurement Range |
10kohm to 100Tohm |
| Resolution (ohm) |
- |
| Test Current |
- |
| Accuracy |
± 1/2 Decade |
| External Height |
50mm |
| External Width |
70mm |
| External Depth |
110mm |
| Weight |
8oz |
| Product Range |
- |
Other details
| Brand |
DESCO |
| Part Number |
19784 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
