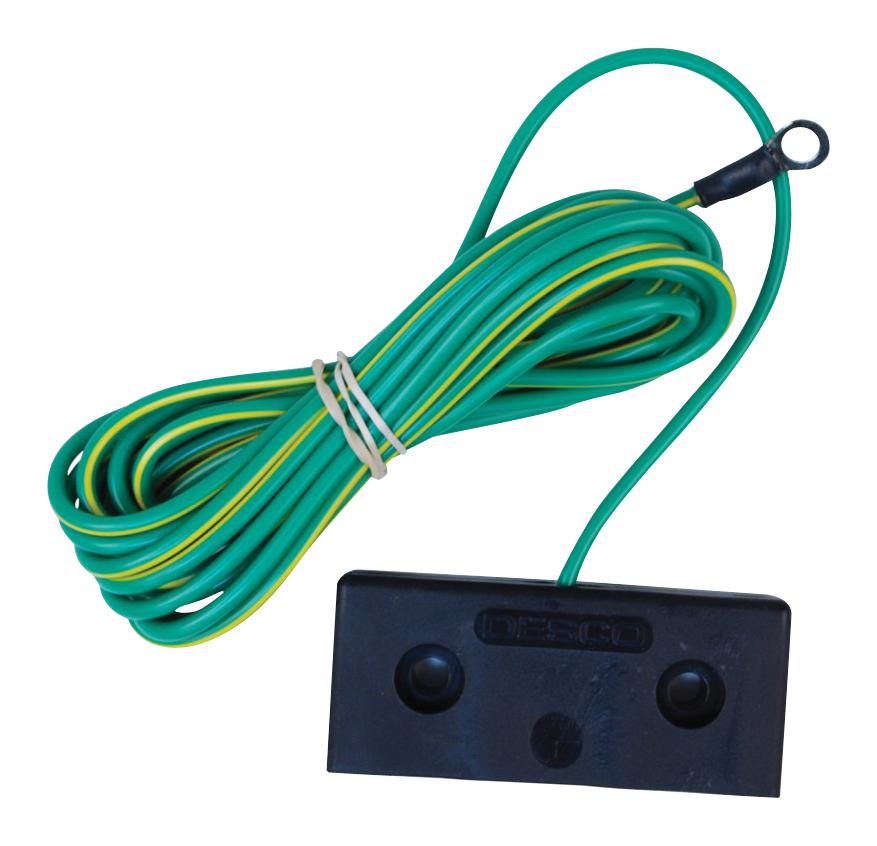

The 9835 is a 10ft quad common Ground Cord with extra ring terminal. It is moulded in black thermoplastic elastomer. It has no resistor between the snap and ground, with the banana jacks also at ground potential. The brass crimp secures conductors and provides stress relief. Moulded #10 mounting holes allow for permanent installation at the workbench.
- 10mm Stud snap - Compatible with mats that have a 10mm socket snap
- Four banana jacks - Provides for four grounding points for operators, visitors or carts
- Ring terminal at end of ground cord - Allows easy attachment to electrical ground
- Compact design - Fits neatly under bench top - does not use valuable work-surface space
- Green wire with yellow stripe
Applications
Safety
Product details
| Lead Length |
3.05m |
| Ground Cord Colour |
Green, Yellow |
| Ground Terminals |
Snap, Stud |
| End To Ground Resistance |
- |
| Product Range |
- |
Other details
| Brand |
DESCO |
| Part Number |
09835 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
