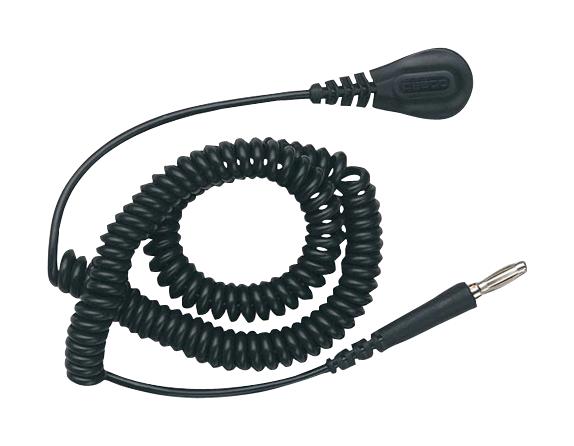

The 9682 is a 20ft black relaxed retraction Coil Cord feature prevents cord from being disconnected or getting in the way of operator's work area. This patented barrel type banana plug with machined contour spring support. It crimped uniformly from 4 sides for maximum strength. It fits industry standard banana jack >=0.157 inch. Will maintains greater than 1 pound disengagement force over the life of the cord. Thermoplastic elastomer strain-relief moulded on. Bending life test average >1000000 cycles per ANSI/ESD S20.20 (tested per ESD S1.1). Break load average 30 pounds. The relaxed retraction coil cord produces less tug force on wearer's wrist. Wire insulation black colour PVC.
- Low profile snap design
- Date coded - Provided so that the lifespan of the product may tracked and to ensure quality control
- Autosplice brass crimp secures conductors to resistor lead and provides stress relief for resistor
Applications
Safety
Product details
| Lead Length |
4.57m |
| Ground Cord Colour |
Black |
| Ground Terminals |
Socket |
| End To Ground Resistance |
1Mohm |
| Product Range |
- |
Other details
| Brand |
DESCO |
| Part Number |
09682 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
