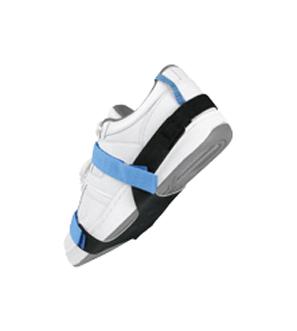

The 7503 is a blue large premium sole Foot Grounder provides a more complete path-to-ground than regular heel/toe grounders due to a wider and more consistent contact area. The rubber sole pattern is made from a black conductive outer layer and a non-marring lining that prevents carbon marks on shoes. These units include a blue grounding tab with carbon suffused fibres and hook and loop fastening systems. It has been tested to ESD STM 97.2 - floor materials and footwear voltage measurement in combination with a person. It is a suitable ESD footwear component in flooring-footwear system when used as the primary grounding method (<3.5 x 10E7ohms per ESD STM 97.1 floor material and footwear-resistance measurement in combination with a person). The combination of additional surface area and the contact point on the ball of the foot forms a more consistent path to ground. The conductive material provides reliable connection with operator's sweat-layer. It is suitable for 11 to 15 men's.
- Large contact area on ball of foot
- Tear-resistant rubber with inner scrim
- Reinforced material prevents material from tearing - increasing the service life
- Hook and loop stretch hook and loop fastening system
- Date coded - Provides lot traceability to ensure quality control and tracking information
- Hook and loop fastening system
- Stretch elastic back
- 30" Long, 8 conductive strand nylon polyester grounding tab
- 3/4" Wide blue elastic material stretches for comfort
- 2MR Series resistor - To protect operator from accidental contact with equipment line voltage
Applications
Safety
Product details
| Grounder Type |
Sole |
| Grounder Colour |
Black, Blue |
| Resistance |
2Mohm |
| Lead Length |
30" |
| Strap Material |
Nylon (Polyamide), PET (Polyester) |
| Fastening Type |
Hook and Loop |
| Product Range |
- |
Other details
| Brand |
DESCO |
| Part Number |
07503 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
