Description
From Manufacturer

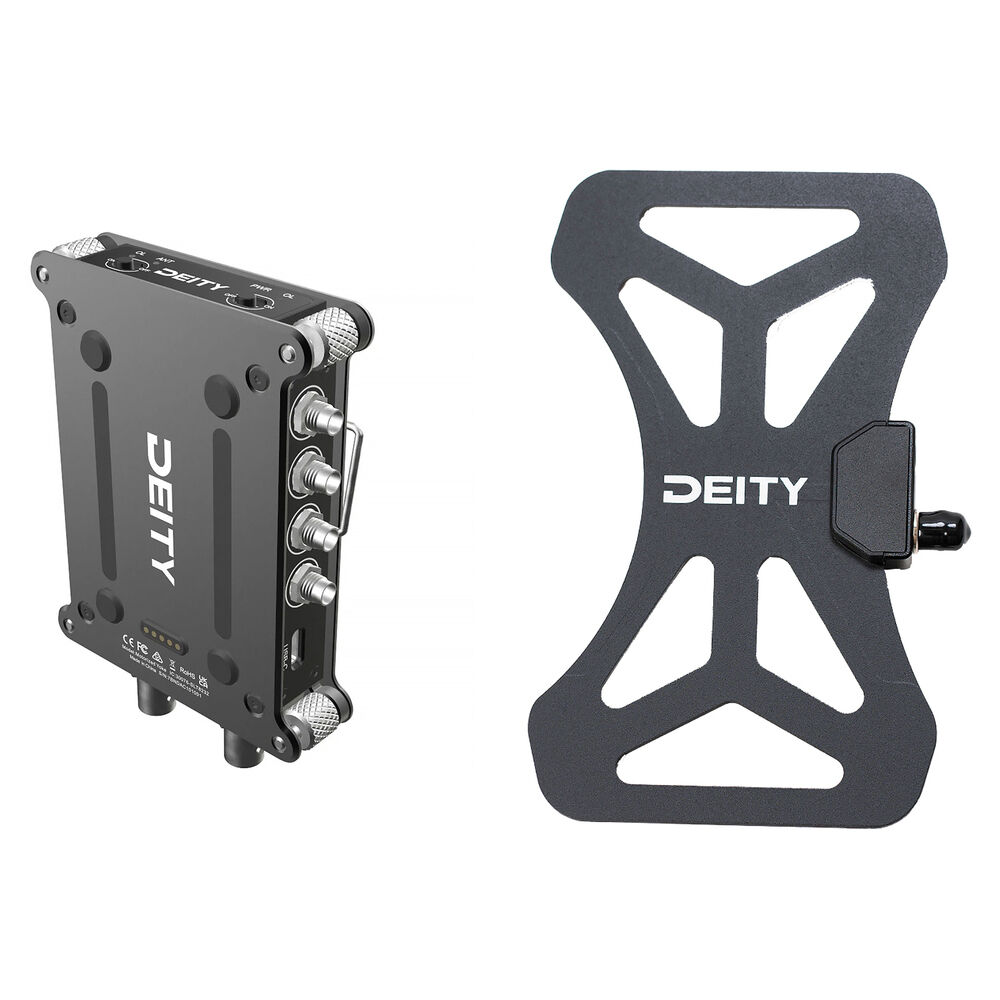

This Deity Microphones SRD-Mini 4-Channel Antenna Distribution System Kit with Pair of BF1 Antennas from adds a pair of BF1 passive, omnidirectional butterfly antennas (with mounting arms and cables) to optimize the wireless audio performance of your mic system.

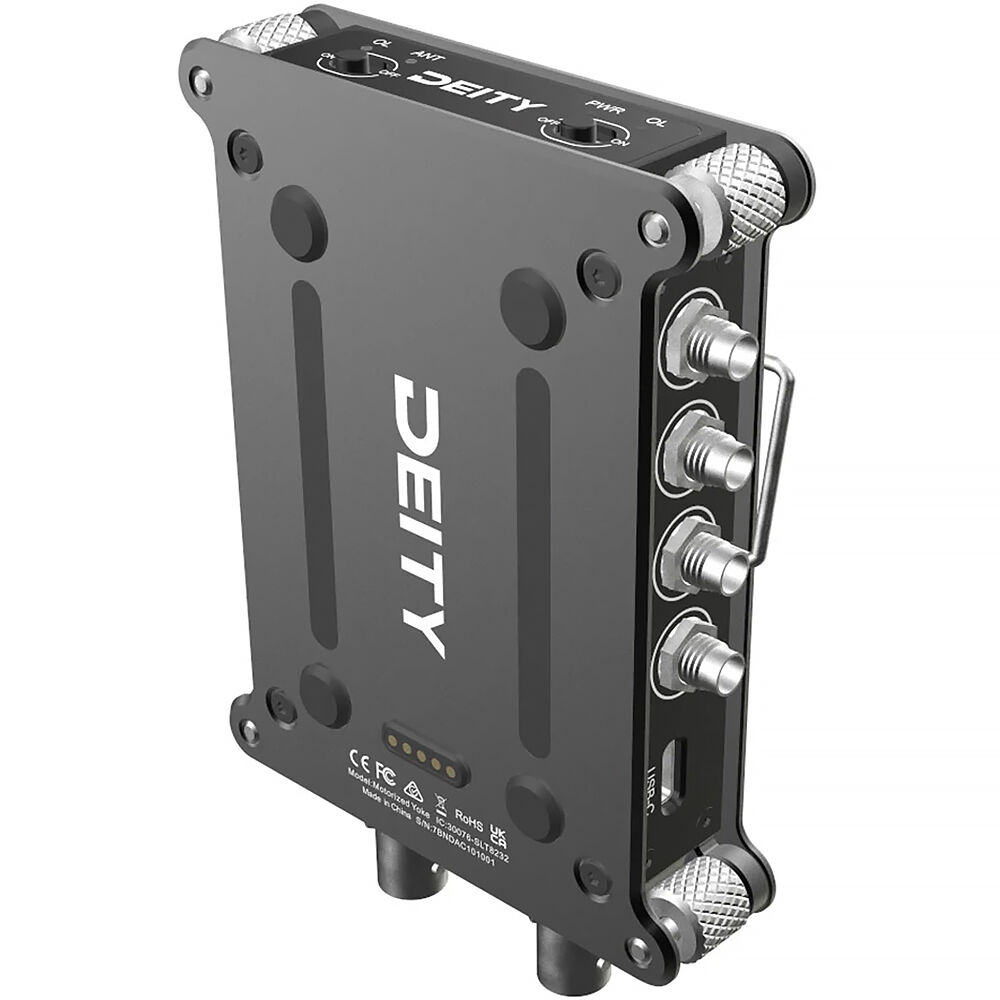

Simplify the management of wireless microphone signals in demanding field conditions with the Deity Microphones SRD-Mini, an ultra-slim, portable 4-channel antenna-distribution system designed specifically for location sound mixers. This RF distro is equipped with two main ins and four outs (A and B), for a 2-to-8 split.
Supporting both passive and active antennas, the SRD-Mini features an active splitter that compensates for gain loss, ensuring that your RF signals remain strong and consistent. The unit also supplies power to external antenna circuitry. Each side of the distro (A / B) can have it's external power toggled on or off independently. The SRD-Mini is made of CNC aluminum and is ultralightweight. Its slim and ergonomic design makes it easy to place it wherever you need to in your sound bag.
- The SRD-Mini utilizes standard connectors, ensuring compatibility with a wide range of equipment.
- Two 50-ohm BNC ports act as the A/B inputs while eight 50-ohm SMA outputs split the incoming signal ( 1 A x 4 A / 1 B x 4 B).
- The SRD-Mini operates in the 470 MHz to 1 GHz range, allowing it to operate anywhere in the world and with nearly any UHF wireless microphone system you may already own.
- The SRD-Mini has traditional power inputs like a 12-16.8 VDC 4-pin Hirose-compatible connector and a 5 VDC USB-C connector.
- For a cable-less power solution, the unit can also be powered from the SPD-Mini power distributor (available separately) via its pogo pins.

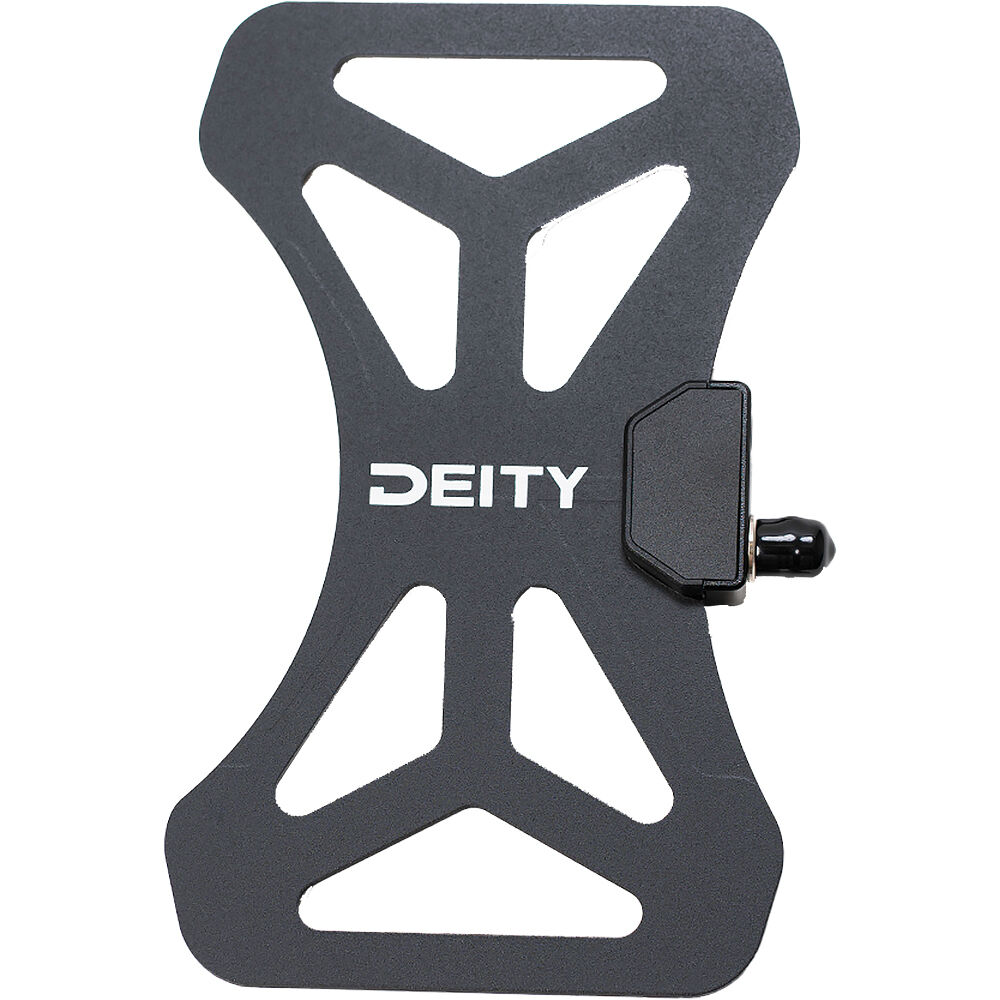

Get better wireless reception with the BF1 from Deity Microphones, a pair of passive omnidirectional butterfly antennas with an ultrawide frequency range, extremely lightweight construction, and precision mounting options in a comprehensive package ready for on-set deployment anywhere in the world. Compatible with a wide variety of wireless systems, the BF1 is a simple, yet powerful, accessory to optimize your wireless audio transmission during critical production work for film, video, events, and journalism.
Items Included
- Deity Microphones SRD-Mini Portable 4-Channel Antenna Distribution System (470 MHz to 1 GHz)
- Deity Stickers
- Limited 2-Year Manufacturer Warranty
- Deity Microphones BF1 Passive Omnidirectional Butterfly Antenna (Pair, 470 MHz to 1 GHz)
- 2 x Articulating Mounting Arm
- 2 x BNC Cable
- 2 x BNC to Right Angle SMA Cable
- Carrying Case
-
Limited 2-Year Manufacturer Warranty
Registration Extension: 6-Month
Additional Resources
Guides & Manuals
Deity Microphones SRD-Mini Portable 4-Channel Antenna Distribution System (470 MHz to 1 GHz)
| USB I/O |
1 x USB-C Female Input
|
| RF Input |
2 x BNC Connectors
|
| RF Output |
8 x SMA Connectors
|
| Impedance |
Input: 50 Ohms
Output: 50 Ohms |
| Gain |
+3 to +9 dB
|
| Port Isolation |
?20 dB (Minimum)
|
| Noise Factor |
?1.5 dB
|
| Wireless |
UHF
|
| Frequency Range |
470 MHz to 1 GHz
|
| Gain |
+3 to +9 dB
|
| Port Isolation |
?20 dB (Minimum)
|
| Noise Factor |
?1.5 dB
|
| Power Source |
USB, DC Input, Proprietary Interface
|
| DC Input Power |
5 to 16.8 VDC at 160 mA
|
| Color |
Black
|
| Material of Construction |
CNC Aluminum
|
| Dimensions |
4.5 x 3.1 x 0.8" / 115.5 x 78 x 20.8 mm
|
| Weight |
6.5 oz / 185.5 g
|
| Package Weight |
0.63 lb
|
| Box Dimensions (LxWxH) |
7.8 x 6.15 x 4.6"
|
