Deity Microphones SPD-Mini Compact Modular Power Distro System

Stay ahead of your power needs with the Deity Microphones SPD-Mini Compact Modular Power Distro System, a compact, advanced power management solution designed specifically for audio professionals. Ideal for use in audio bags, the SPD-Mini combines reliability with intelligent functionality. Its vibrant color display delivers real-time telemetry data from SMbus-enabled smart batteries, providing precise information on remaining battery life in hours, calculated in real time, based on your current amp draw.

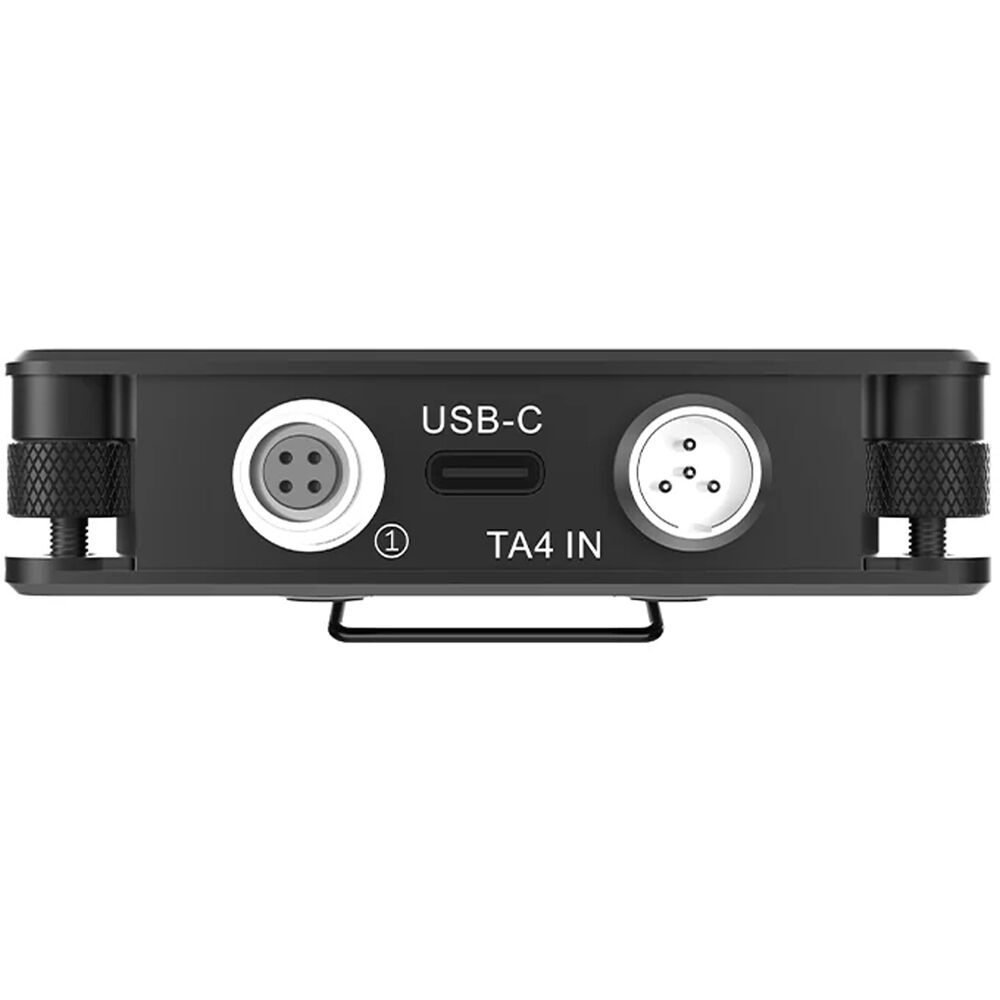

Seamlessly adapting to any workflow, the SPD-Mini is compatible with both TA4 Smart Battery cups and USB-C inputs. It also features five 4-pin push-pull power ports that can be turned on/off with a top mounted switch.

• The SPD-Mini utilizes a bright color screen that can be flipped upside down with flick of a switch.
• This, combined with the two belt-clip mounting points allow you to rig the SPD-Mini however you need to in your sound bag.

• Next to the inputs is the #1 output. This output is unique in that it passes along the smart battery data to audio recorders that can decode the telemetry data.
• The #1 output can handle demanding devices like the Sound Devices 888, making it indispensable for high-amp-draw audio setups.

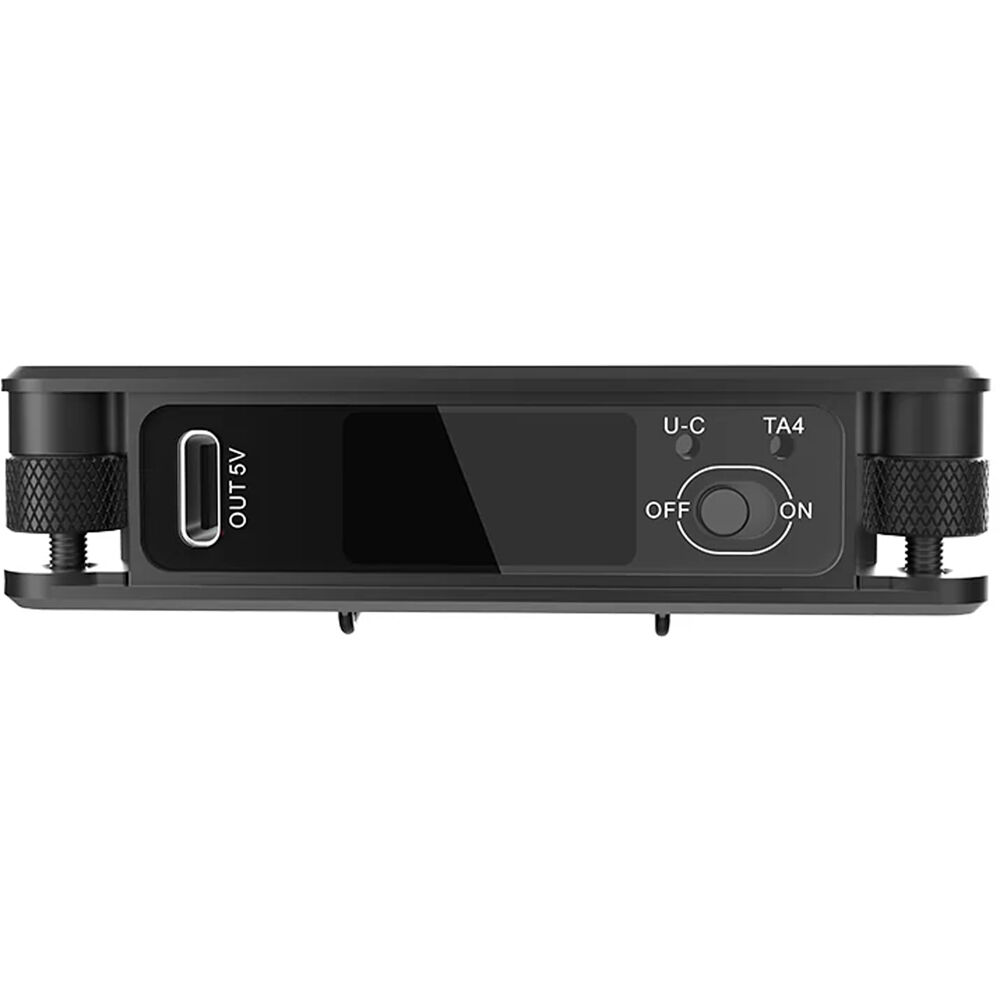

• The top of the SPD-Mini features a 5V USB-C output with support for 10W of power delivery.
• Perfect for keeping a tablet or phone topped off that's running the Sidus Audio app.

• The SPD-Mini is a part of the Deity modular Regional Power System. This allows the SPD-Mini to lock together with other compatible devices using 4 threaded mounting points and share power between the devices.
• This gives you an additional cable-free output, streamlining your setup and reducing clutter.

Deity Microphones SPD-Mini Specs

Panel Type	TFT LCD
Display Size	Not Specified by Manufacturer
Touchscreen	No

Power Input	1 x TA4F 1 x USB-C
Power Output	1 x 4-Pin Push-Pull Aviation Connector (Passes Smart Battery Data) 4 x 4-Pin Push-Pull Aviation Connectors 1 x USB-C

Power Source

Battery, USB

Mounting	2x Belt Clip
Color	Black
Material of Construction	Aluminum
Dimensions	4.1 x 3.1 x 0.8" / 105.3 x 78 x 20.7 mm
Weight	6.5 oz / 185 g

Package Weight	0.675 lb
Box Dimensions (LxWxH)	6.2 x 4.4 x 1.8"
