Description
Deity Microphones DTE0287D90 Overview
- 1Description
- 2Modern Power Distribution
- 3Triple DC Inputs
- 4Seven Power-Output Ports, Over Two Circuit Groups
- 5Two Locking Power Switches
- 6Smart Battery Telemetry Display to Monitor Power on Set
- 7Versatile Mounting Options
- 8Wide Compatibility
- 9Multiple Batteries Supported
- 10SPD-1 Power Distribution at a Glance
Modern Power Distribution
The

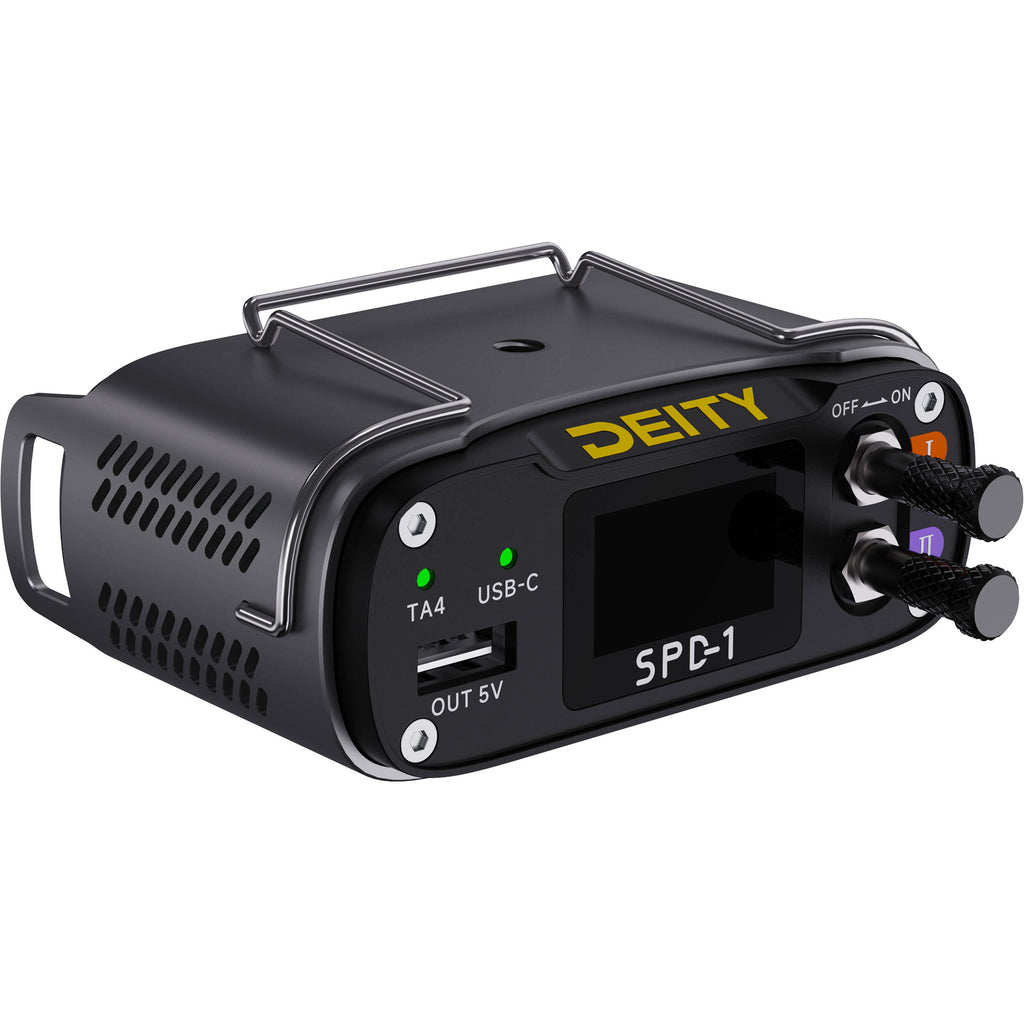

Deity Microphones SPD-1 is a compact and lightweight power distribution box for managing power in large sound bags or on small location sound carts. With its triple DC inputs, hot-swappable functionality, support for both smart and non-smart batteries, seven power-output ports, and the ability to display battery telemetry data, the SPD-1 is designed to make your life on set as easy and stress-free as possible.
Triple DC Inputs
- Two TA4F Power Inputs: SPD-1 is compatible with any battery ranging from 12 to 18V. Users can hot swap between the two TA4 power inputs.
- USB-C Power Input: the USB-C input port is capable of providing regulated 12V into your system from wall power�useful when you are stationed in one place for a while and don�t want to use batteries.
- Verify that your USB-C power supply supports the 12V USB-C power standard and supplies enough watts. A USB-C laptop-style power supply is suggested.
Seven Power-Output Ports, Over Two Circuit Groups

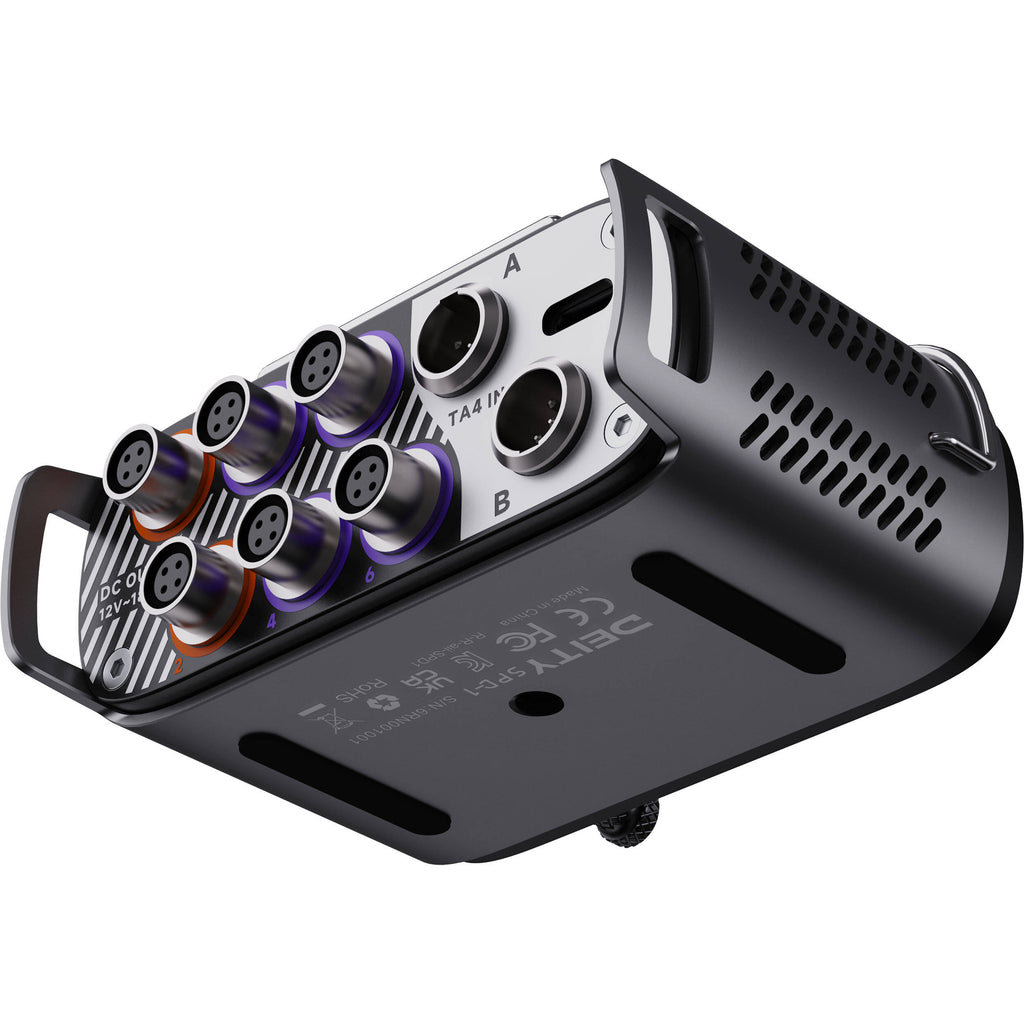

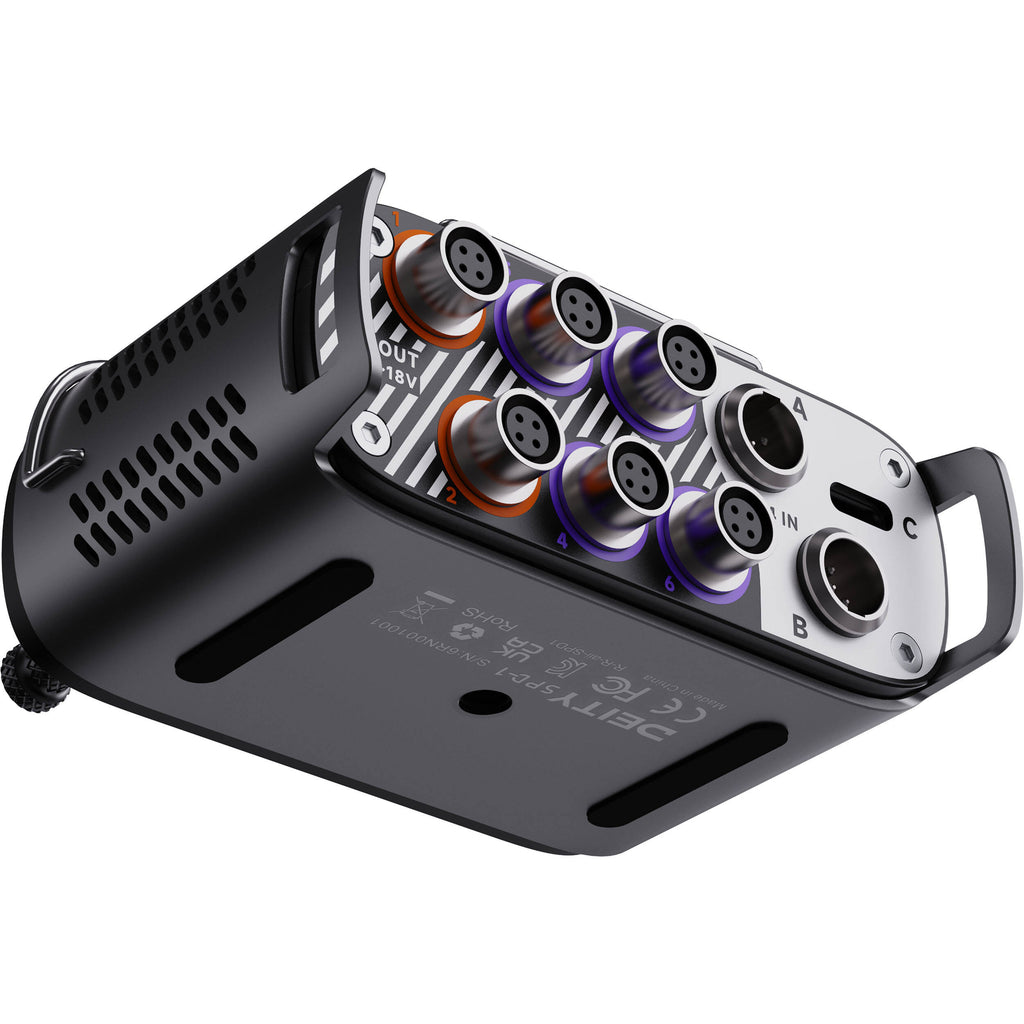

- The six, unregulated 4-pin Hirose power-output ports enable you to power multiple devices simultaneously.
- The ports are divided across two power circuit groups (Group I and II), each with its own locking toggle switch switches, making it easy to turn your devices on and off without needing to power down your primary devices.
- The SPD-1 features an easy-access, front-facing 5V/2A USB-A port, making it simple to charge your devices and keep them powered up.

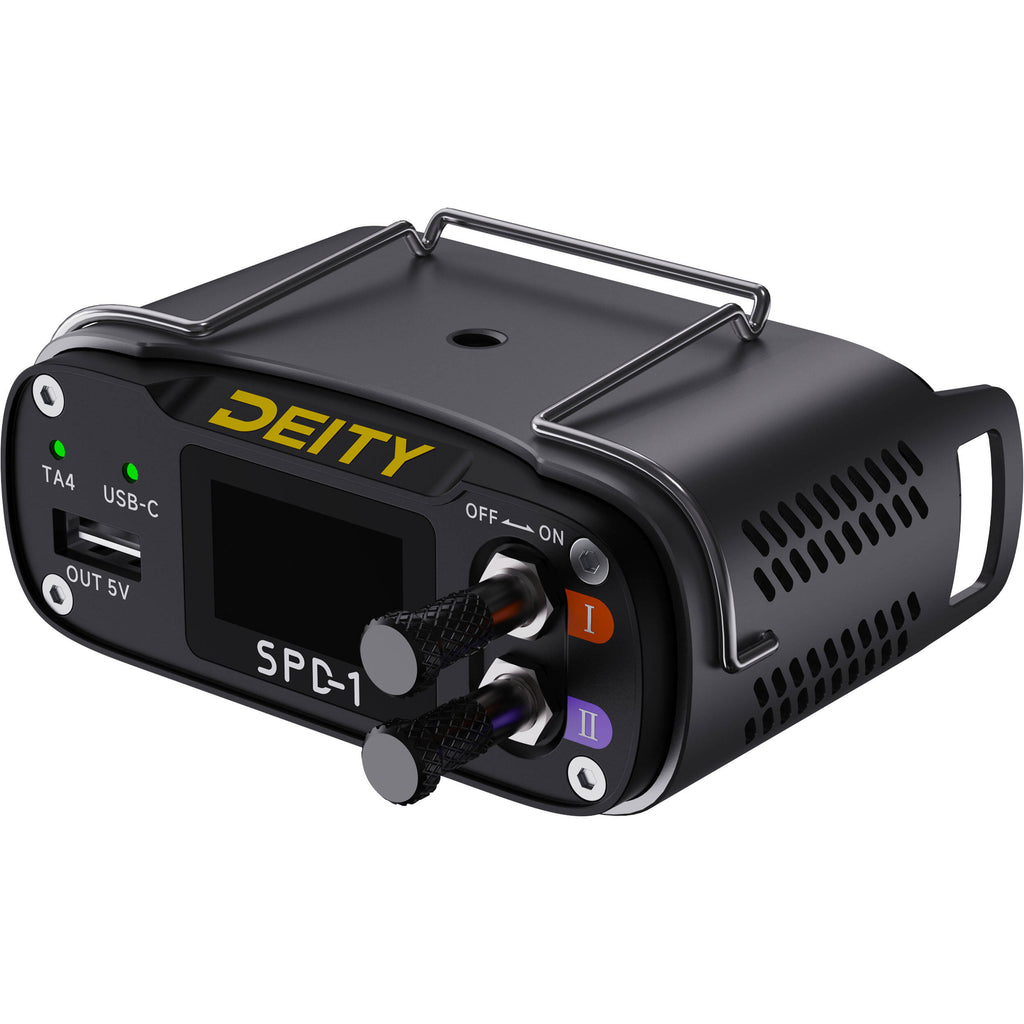

Two Locking Power Switches
- Locking toggle switches make turning your devices on and off easy and safe, and they help prevent accidental power-downs.
- Group I Power Switch: Enables the Group I power outputs.
- Group II Power Switch: Enables the Group II power outputs.
- Pull and toggle right/left to enable or disable the power outputs Group I and II.
Smart Battery Telemetry Display to Monitor Power on Set
- The SPD-1 displays battery telemetry data to keep track of your power usage. Monitoring power on set is crucial to keeping production running smoothly. With the SPD-1, you can easily keep track of your power usage, ensuring you never run out of power at the wrong time.
- The 1.1� color screen provides you with all the information you need, like total power consumption, battery temperatures, voltage, battery life, and battery cycle count.
- Included is an SPD-T4BATT TA4F to HiQ Battery CupF, specifically designed to hold a 2054 smart battery, known for its reliability and long battery life (battery available separately).
Versatile Mounting Options
- The SPD-1 features dual 1/4�-20 threaded mounts, allowing you to mount the device in any position securely.
- The included reversible mounting clip makes it easy to change the device�s orientation as needed.
Wide Compatibility
- Sound Devices 633, 664, 688, MX-HIROSE DC input sled
- Sound Devices A10-RX A-TA3 adapter, A10-RX A-XLR
- Zaxcom Nova, Nova 2, Deva 24
- Zoom F8, F8n, F8n Po, F4
- Lectrosonics SREXT SR mounting kit, DSR4EXT, DCR822
- Wisycom MCR54 end plate
- MiPro MR-90SC
- Sony UWP-D
Multiple Batteries Supported
- The SPD-1 supports both smart and non-smart batteries with its triple DC inputs and hot-swappable functionality.
- When using a non-smart 14.4V or USB-C battery, the SPD-1 will display incoming voltage.
- The screen on the SPD-1 adapts its displayed data to the type of power you supply.
- Supported batteries include: Audio Root, Deity S-95, Inspire Energy, Remote Audio HiQ, RRC, Sound Device Smartbattery
SPD-1 Power Distribution at a Glance
- For large sound bags and small sound carts
- Triple DC inputs, hot-swappable
- Two TA4F inputs; one USB-C input
- Six 4-pin push unregulated outputs
- Easy-access USB-A charging port
- Suggested operating range is 12 to 18V
- Supports smart and non-smart batteries
- Displays battery telemetry data
- Measures total power consumption
- Two power circuit groups with locking toggle switches
- Lightweight aluminum housing
- 1.1" color screen
- Dual 1/4"-20 threaded mounts
- Reversible mounting clip
In the Box
- Deity Microphones SPD-1 Smart Power Distributor
- SPD-T4BATT TA4F to HiQ Battery CupF
- Reversible Belt Clip
- Deity Logo Sticker
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Modern Power Distribution
- Triple DC Inputs
- Seven Power-Output Ports, Over Two Circuit Groups
- Two Locking Power Switches
- Smart Battery Telemetry Display to Monitor Power on Set
- Versatile Mounting Options
- Wide Compatibility
- Multiple Batteries Supported
- SPD-1 Power Distribution at a Glance
Deity Microphones DTE0287D90 Specs
Display
| Panel Type |
TFT LCD
|
| Display Size |
1"
|
| Touchscreen |
No
|
Power
| Power Source |
Battery
|
Physical
| Mounting |
2 x 1/4"-20 Threads
1 x Belt Clip |
| Color |
Gray
|
| Material of Construction |
Aluminum
|
| Dimensions |
3.5 x 2.5 x 1.4" / 8.9 x 6.3 x 3.6 cm
|
| Weight |
5.6 oz / 159 g
|
Packaging Info
| Package Weight |
0.775 lb
|
| Box Dimensions (LxWxH) |
6.7 x 5.8 x 2.5"
|
