Description

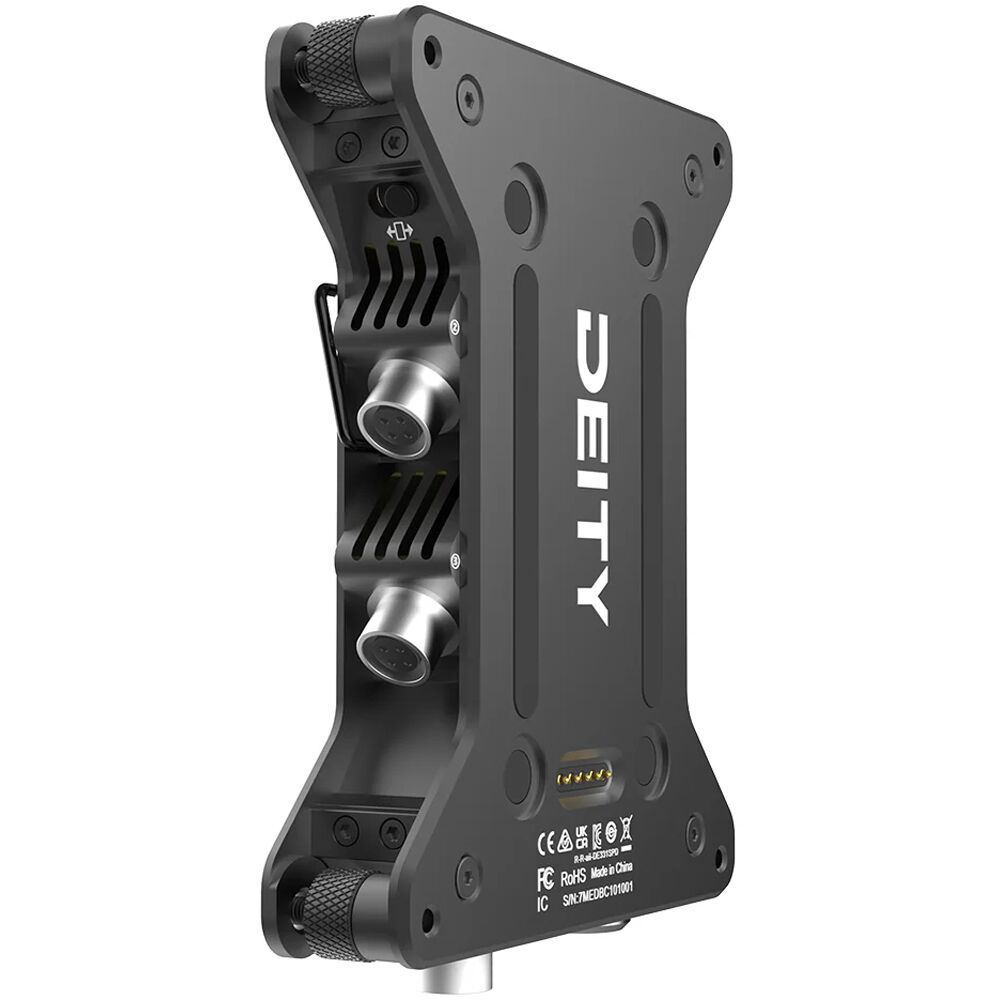

Seamlessly adapting to any workflow, the SPD-Mini is compatible with both TA4 Smart Battery cups and USB-C inputs. It also features five 4-pin push-pull power ports that can be turned on/off with a top mounted switch.
- The SPD-Mini utilizes a bright color screen that can be flipped upside down with flick of a switch.
- This, combined with the two belt-clip mounting points allow you to rig the SPD-Mini however you need to in your sound bag.
- Next to the inputs is the #1 output. This output is unique in that it passes along the smart battery data to audio recorders that can decode the telemetry data.
- The #1 output can handle demanding devices like the Sound Devices 888, making it indispensable for high-amp-draw audio setups.
- The top of the SPD-Mini features a 5V USB-C output with support for 10W of power delivery.
- Perfect for keeping a tablet or phone topped off that's running the Sidus Audio app.

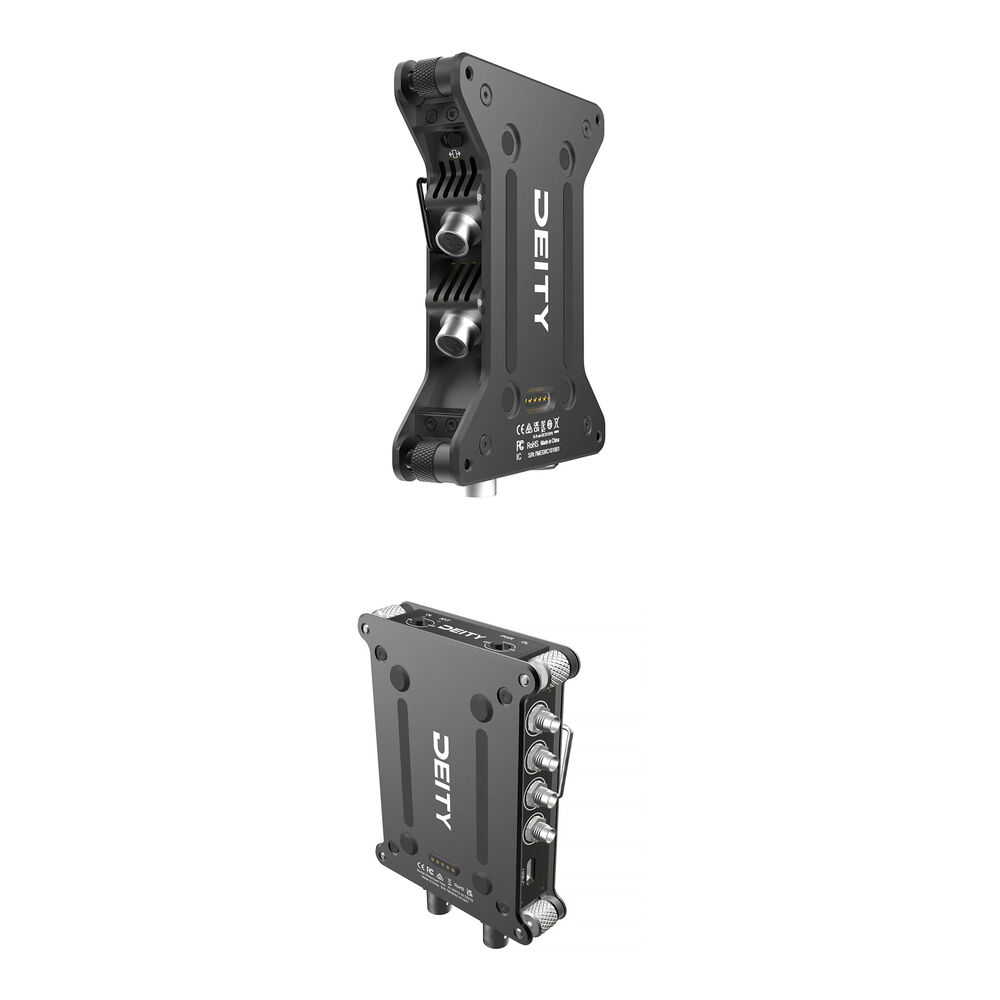

- The SPD-Mini is a part of the Deity modular Regional Power System. This allows the SPD-Mini to lock together with other compatible devices using 4 threaded mounting points and share power between the devices.
- This gives you an additional cable-free output, streamlining your setup and reducing clutter.

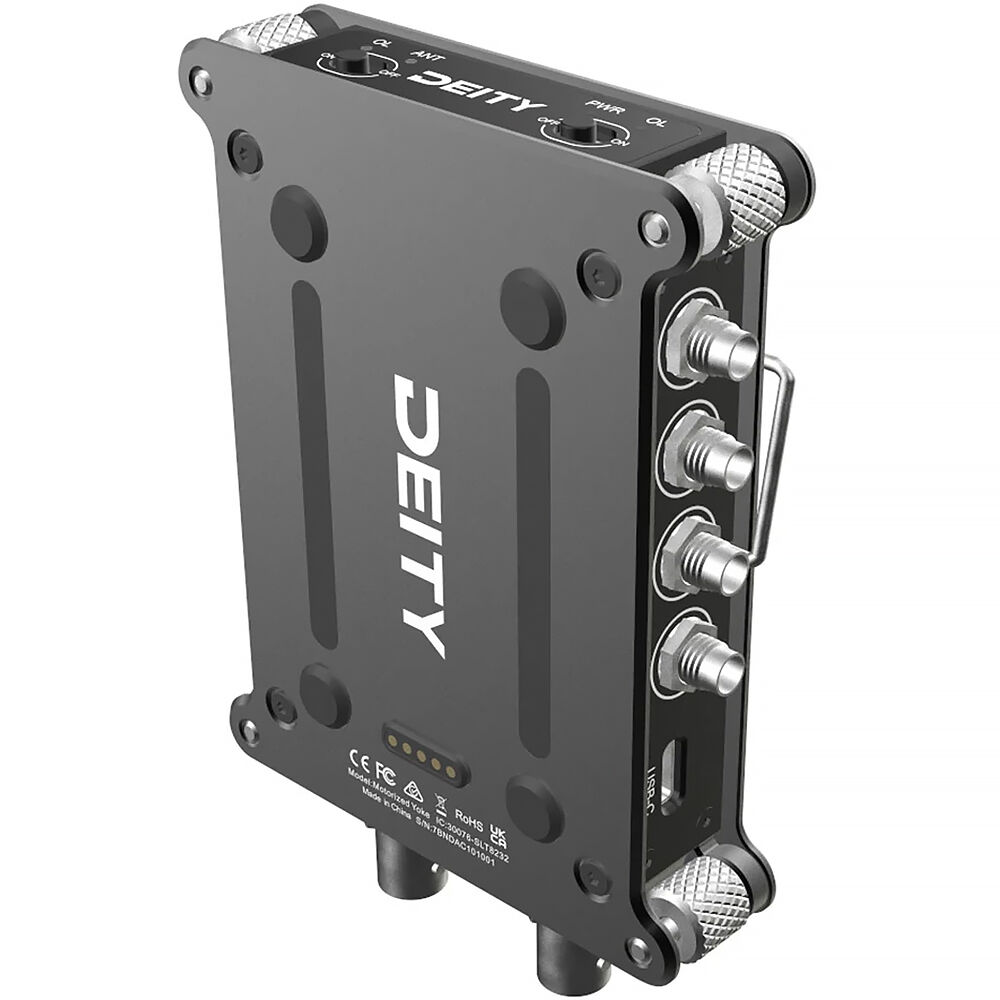

Simplify the management of wireless microphone signals in demanding field conditions with the Deity Microphones SRD-Mini, an ultra-slim, portable 4-channel antenna-distribution system designed specifically for location sound mixers. This RF distro is equipped with two main ins and four outs (A and B), for a 2-to-8 split.
Supporting both passive and active antennas, the SRD-Mini features an active splitter that compensates for gain loss, ensuring that your RF signals remain strong and consistent. The unit also supplies power to external antenna circuitry. Each side of the distro (A / B) can have it's external power toggled on or off independently. The SRD-Mini is made of CNC aluminum and is ultralightweight. Its slim and ergonomic design makes it easy to place it wherever you need to in your sound bag.
- The SRD-Mini utilizes standard connectors, ensuring compatibility with a wide range of equipment.
- Two 50-ohm BNC ports act as the A/B inputs while eight 50-ohm SMA outputs split the incoming signal ( 1 A x 4 A / 1 B x 4 B).
- The SRD-Mini operates in the 470 MHz to 1 GHz range, allowing it to operate anywhere in the world and with nearly any UHF wireless microphone system you may already own.
- The SRD-Mini has traditional power inputs like a 12-16.8 VDC 4-pin Hirose-compatible connector and a 5 VDC USB-C connector.
- For a cable-less power solution, the unit can also be powered from the SPD-Mini power distributor (available separately) via its pogo pins.
Items Included
- Deity Microphones SPD-Mini Compact Modular Power Distro System
- Deity Logo Stickers
-
Limited 2-Year Manufacturer Warranty
Registration Extension: 6-Month - Deity Microphones SRD-Mini Portable 4-Channel Antenna Distribution System (470 MHz to 1 GHz)
- Deity Stickers
- Limited 2-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Deity Microphones SPD-Mini Compact Modular Power Distro System
| Panel Type |
TFT LCD
|
| Display Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|
| Power Input |
1 x TA4F
1 x USB-C |
| Power Output |
1 x 4-Pin Push-Pull Aviation Connector (Passes Smart Battery Data)
4 x 4-Pin Push-Pull Aviation Connectors 1 x USB-C |
| Power Source |
Battery, USB
|
| Mounting |
2x Belt Clip
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Dimensions |
4.1 x 3.1 x 0.8" / 105.3 x 78 x 20.7 mm
|
| Weight |
6.5 oz / 185 g
|
| Package Weight |
0.675 lb
|
| Box Dimensions (LxWxH) |
6.2 x 4.4 x 1.8"
|
