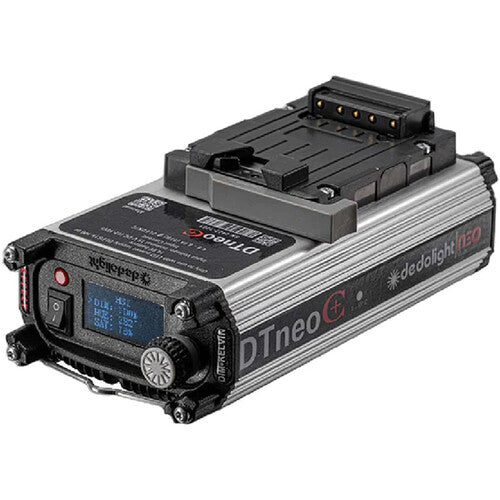

Dedolight DTN7C+ Overview
The DTN7C+ Neo Color Ballast for the NEO Color Balance focusing light from Dedolight allows the light head to be operated manually by using the analog control knob and the intuitive menu via OLED display, or wirelessly using DMX, LumenRadio CRMX, WiFi or Bluetooth Mesh using the free to download app. It is supported by a variety of wired and wireless lighting controllers and consoles as well as the free Chroma Link app from Prolycht. Control of multiple DLED7C light heads in-app provides a myriad of options including x, y coordinates for precision gamut selection, hundreds of built-in gel equivalents, dozens of built-in light source equivalents, and an array of customizable preset effects. It has an integrated V-mount battery tray for use on locates where AC power is unavailable, and offers multi-voltage AC operation for worldwide use when paired with the optional DLPS15-100 AC/DC V-Mount adapter.
NOTE: Requires DPOWN7C-3 or DPOWN7C-10 head cable.
- Linear or Exponential curve modes
- Continuous smooth, 1000 step dimming: 0.1-100%
- V-Mount socket DC 15V nominal input(12-18 VDC)
- 90-250 VAC input with optional DLPS15-100 AC/DC V-Mount adapter
- ChromaLink App supporting Bluetooth and Wi-Fi connection

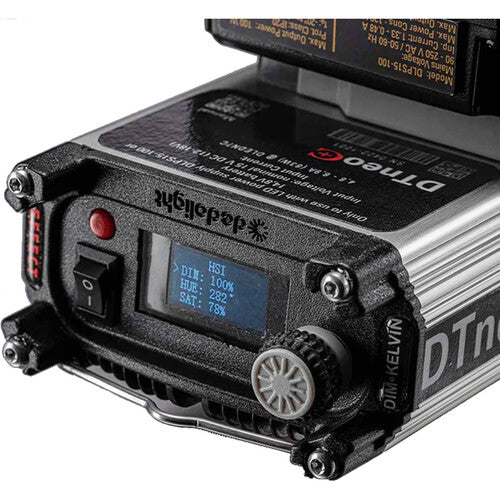

- Intuitive manual control with haptic feedback knob
- OLED display screen
- 80W max output
Dedolight DTN7C+ Specs
General
| Compatibility |
Dedolight NEO Color |
Power
| Power Source |
AC Input, Battery (Not Included) |
| Power I/O |
Not Specified by Manufacturer |
| Center Tip Polarity |
Not Specified by Manufacturer |
| AC Input Power |
90 to 250 VAC, 50 / 60 Hz |
| DC Input Power |
12 to 18 VDC |
| Maximum Power Output |
80 W |
Physical
| Color |
Black / Silver |
| Material of Construction |
Aluminum |
| Dimensions |
7.5 x 4.2 x 2.4" / 19.1 x 10.7 x 6.1 cm |
| Weight |
1.3 lb / 0.6 kg |
