Description
- Streams 16 SDI Inputs to Single Display
- 16 SD/HD/3G-SDI Inputs
- HDMI Output
- Supports Embedded Audio
- USB and Front Panel Control
- Any Window Can Be Made Full Screen

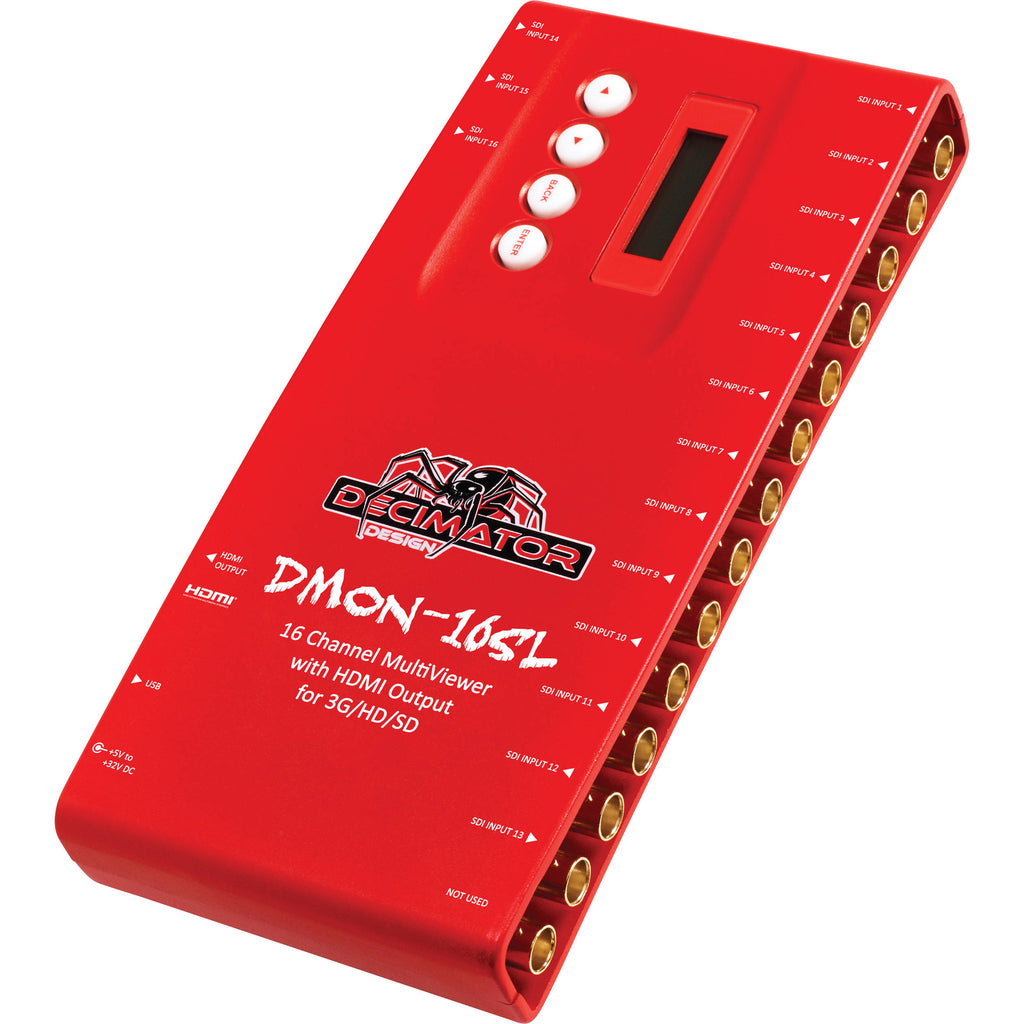

Make an HDMI screen an SDI multiview monitor with DECIMATOR 's DMON-16SL 16-Channel SDI Multiveiwer . The DMON-16SL has a built-in interface so it can be controlled without needing a computer. Adjustments can also be made via a computer connected with the included USB cable. Having both of these interfaces precludes the need for obscure LED status lights or complicated DIP switches.

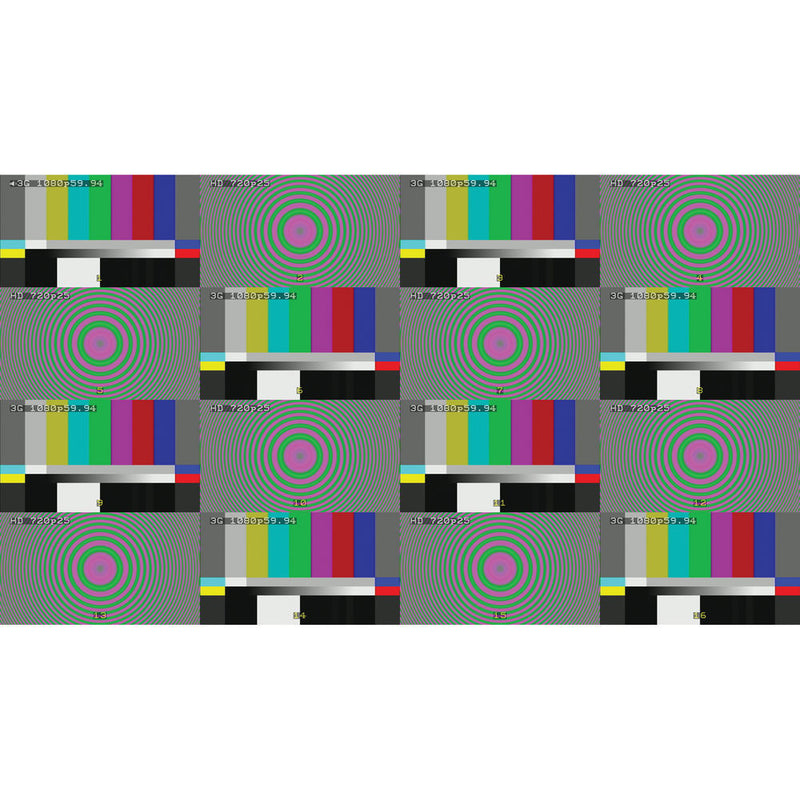

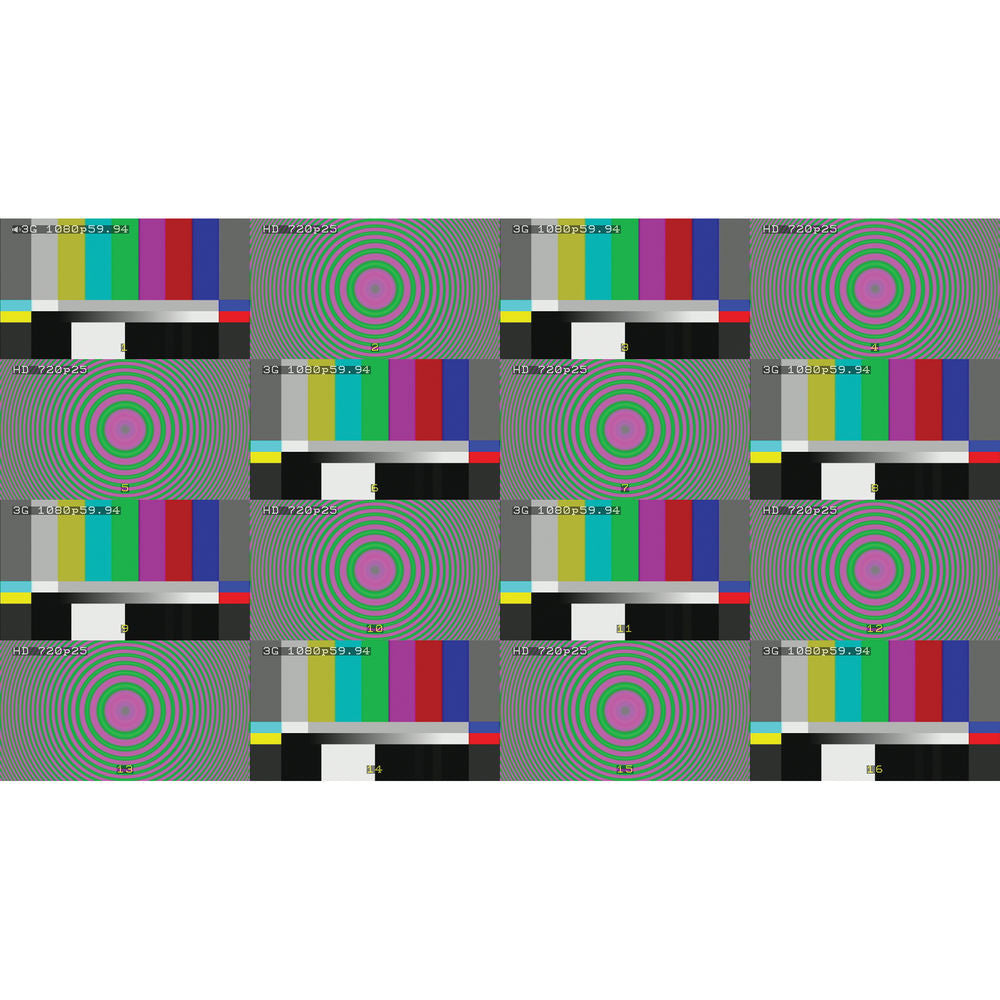

The DMON-16SL features 16 SDI inputs which support SD,HD, and 3G-SDI standards. Inputs have auto-detection so video streams are displayed correctly. Each input is separate from the others, allowing multiple video frame rates and resolutions to be displayed simultaneously when running as a multi-viewer. The on-screen layout can be changed to display the windows in the position and size of your choosing. A pass-through mode will show only a single input on the display at a time, scaling the video to match the resolution of your display.
Note: Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, the ability to set the SDI output to 3G level A or B and convert between A and B, and custom UMDs.
Features
- Custom layouts with various standard layouts
- Audio ID overlay
- Load and restore custom layouts
- Fast switching between inputs using Full-Screen scaling
- Selectable output format in both Full-Screen and Multi-Viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Variable aspect ratios per window
| Inputs | 16 x SD/HD/3G-SDI 1 x USB |
| Outputs | HDMI Type A |
| Video Input Format | 3G-SDI (SMPTE 424M@2.97 and 2.967 Gb/s): � 1080p@60/59.94/50 Hz HD-SDI (SMPTE 292M/274M/296M@1.485 and 1.435 Gb/s): � 1080i@60/59.94/50 Hz � 1080p/psf@30/29.97/25/24/23.98 Hz � 720p@60/59.94/50/30/29.97/25/24/23.98 Hz SD-SDI (SMPTE 259M@270 Mb/s): � 625i50 Hz � 525i59.94 Hz |
| Video Output Format | HDMI: � 1080p@60/59.94/50 Hz � 1080i@60/59.94/50 Hz � 1080p@30/29.97/25/24/23.98 Hz � 720p@60/59.94/50/30/29.97/25 Hz � 625i50 Hz � 525i59.94 Hz |
| Power Input | 5 to 35 VDC Center positive |
| Dimensions | 8.7 x 4.1 x 1.2" / 220 x 103.7 x 29.5 mm |
| Weight | Not specified by manufacturer |
| Packaging Info | |
|---|---|
| Package Weight | 3.0 lb |
| Box Dimensions (LxWxH) | 13.9 x 6.2 x 2.5" |
- Universal Power Supply
- HDMI Cable
- USB Cable
- Limited 3-Year Warranty
Bulk Discount
| Quantity | Price |
| 2 | ₹ 111210.4 |
| 3-5 | ₹ 110075.6 |
| 5-10 | ₹ 107806.0 |
| 10+ | ₹ 105536.4 |
Bulk discount will be automatically applied during checkout based on quantity.
