| ₹ 28684.67 includes GST and import duties. | |
| B2B customers can avail ₹ 4374.41 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

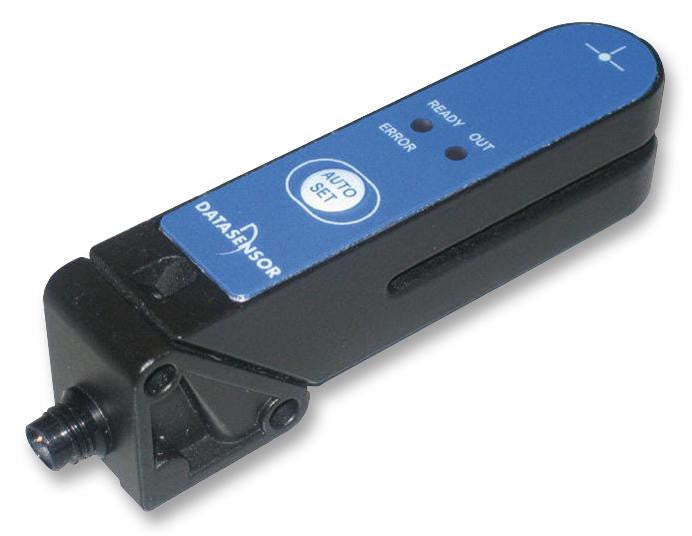

The SR21 series Slot Sensor with 2mm slot width, the device is characterized by a high 12-bit (4096 steps) resolution, a low 20µs response time and a switching frequency reaching 25kHz. The setting of the switching threshold is carried-out automatically by simply pressing a push-button or dynamically during label (or other reference) movement. The SR21-IR model with infrared emission is ideal for label or hole detection on continuous surfaces, while the SR21-RG model with double red or green emission suits colour print register mark detection on transparent films for automatic packaging.
- High switching frequency
- IR or red/green light models
- Detection of semi-transparent labels
- Detection of register marks on transparents
- 4-wire Antivalent NPN and PNP output
- Yellow output LED, green/red bicolour READY/ERROR LED indicators
Applications
Sensing & Instrumentation, Industrial
Product details
| Output Current | 100mA |
| Sensor Output | NPN / PNP |
| Sensing Range Max | 7.5mm |
| Supply Voltage DC Max | 30V |
| Product Range | SR21 Series |
| Supply Voltage DC Min | 10V |
Other details
| Brand | DATASENSOR |
| Part Number | SR21-RG |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 28110.98 |
| 3-5 | ₹ 27824.13 |
| 5-10 | ₹ 27250.44 |
| 10+ | ₹ 26676.74 |
Bulk discount will be automatically applied during checkout based on quantity.
