Description

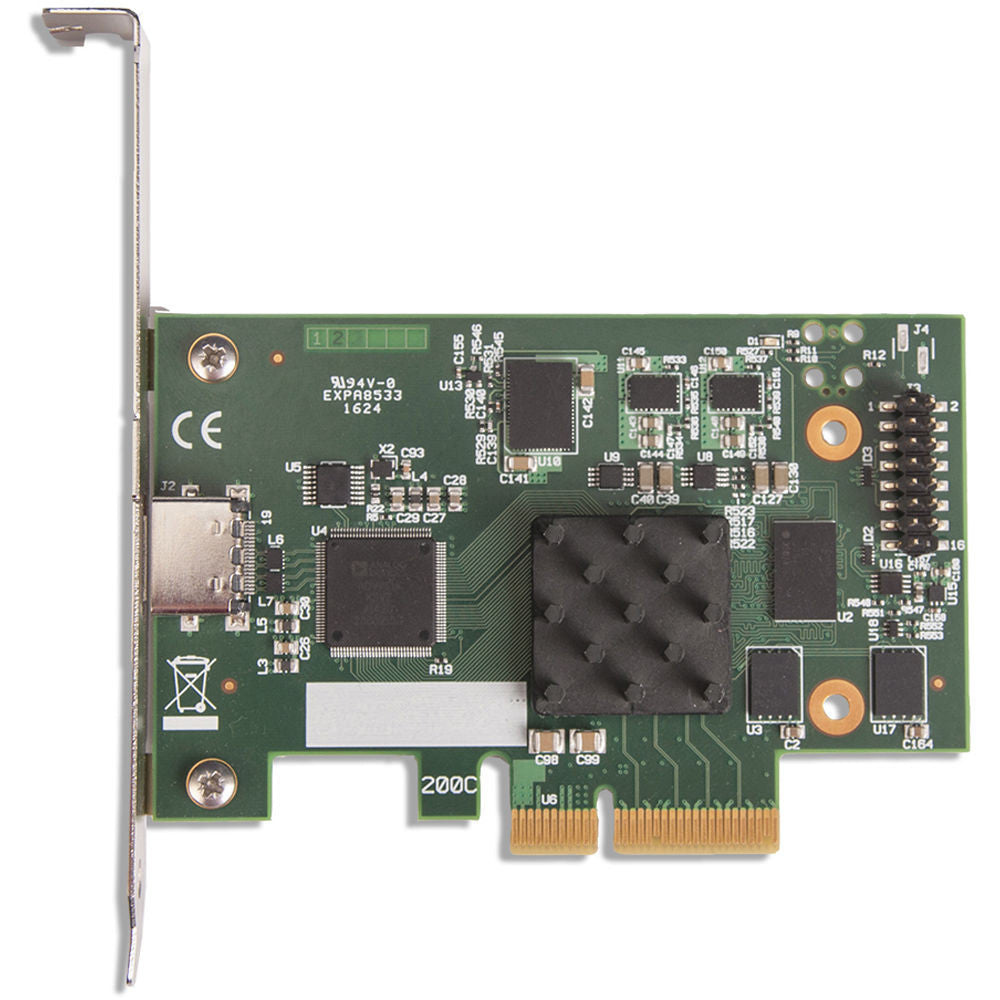

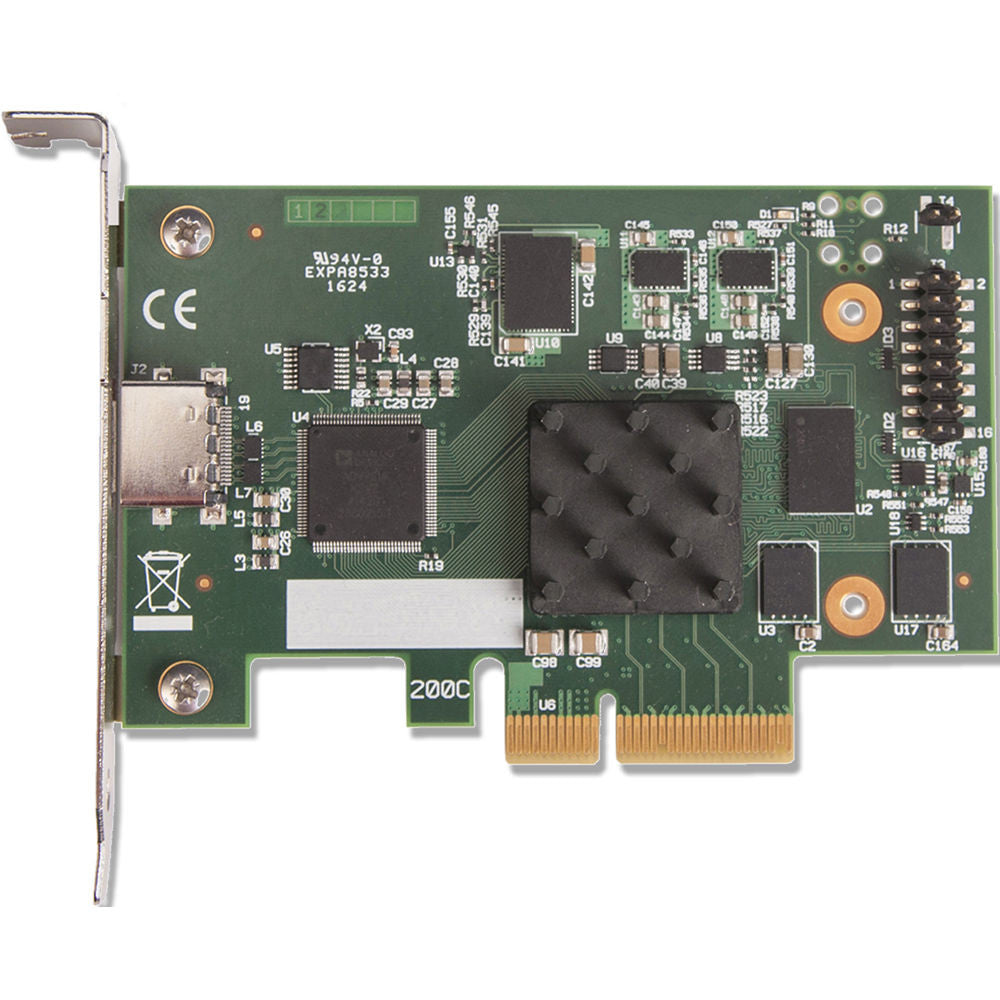

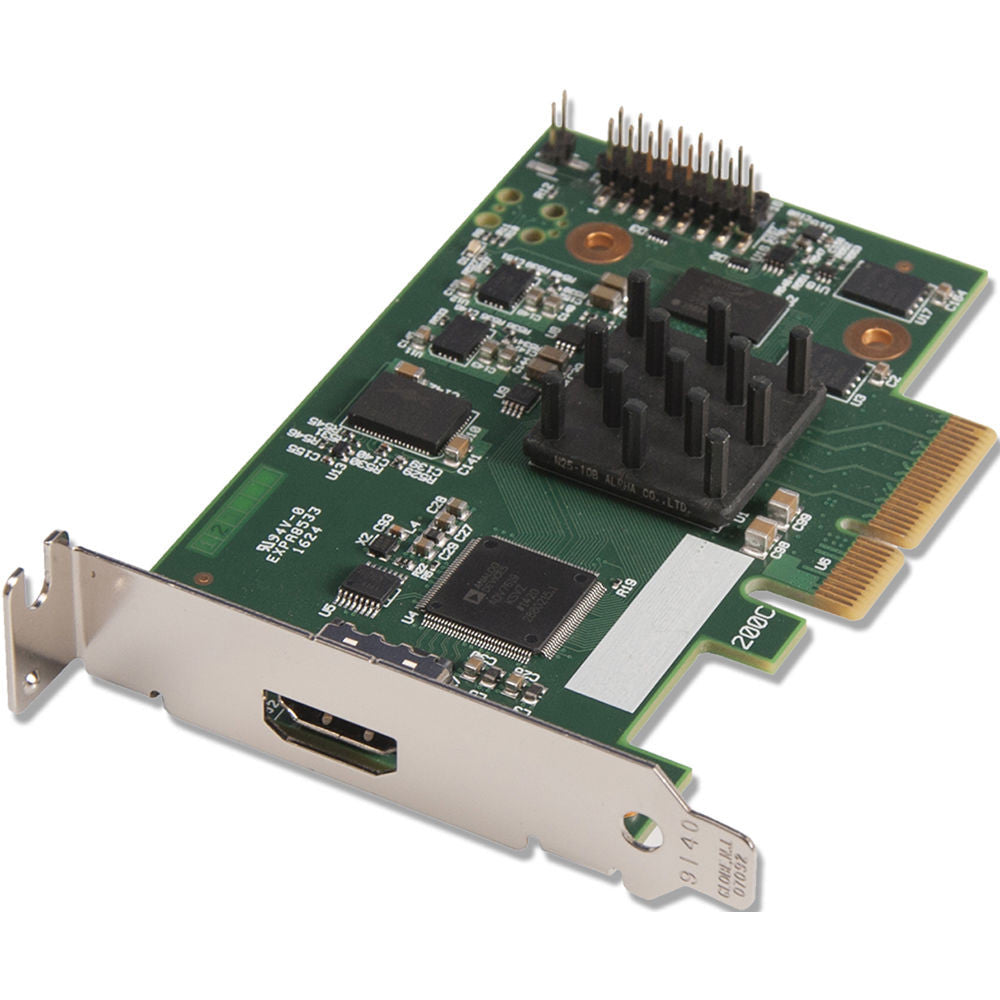

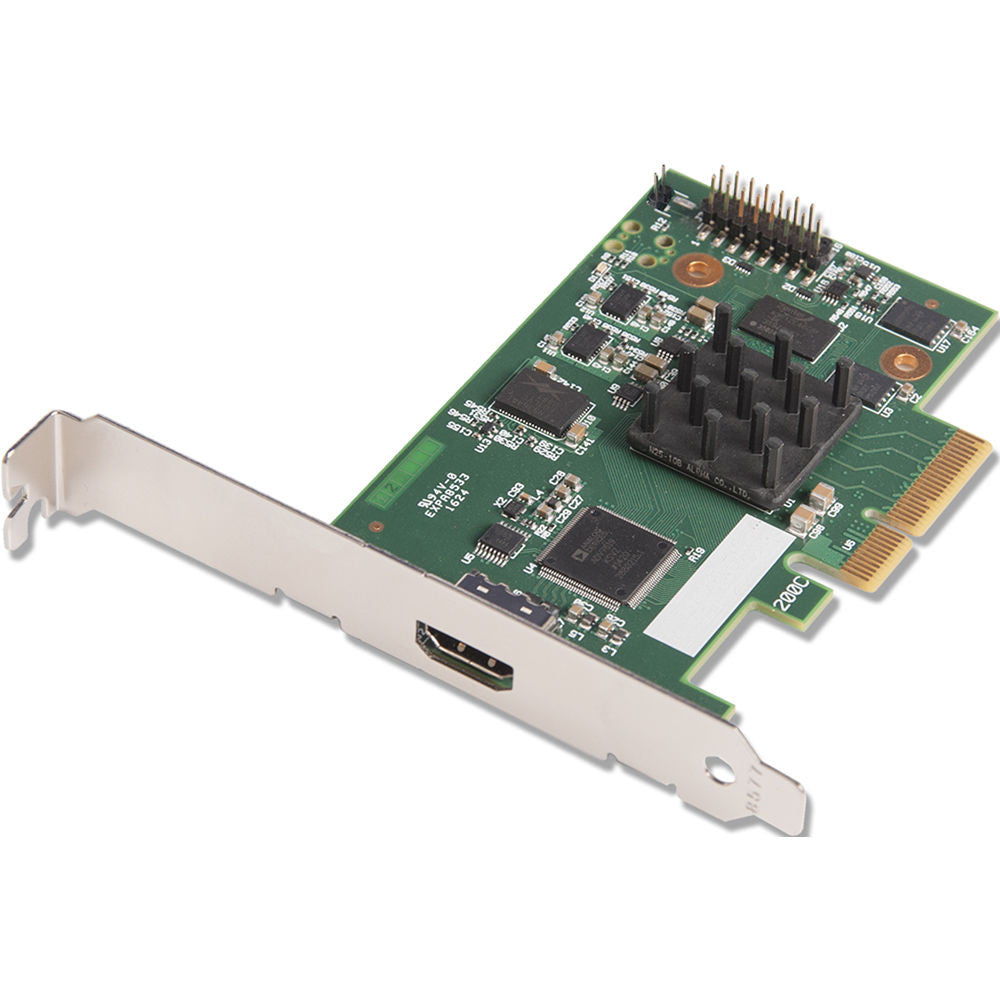

The VisionLC-HD Single-Channel LiveStream Capture Card from Datapath provides HDMI video and audio capture for small form factor appliances being used in medical environments, simulation systems, live events, PC and gaming console capture, lecture and presentation capture, and real-time streaming. More than one card can be added into a system for multiple capture channels. The card allows captured video to be processed and delivered in real time to a processor or graphics card.
The VisionLC-HD capture card supports onboard color space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications. It natively supports 32-, 24-, 16- and 12-bit YUV and RGB formats. Built upon the Microsoft AV Stream framework, the card's inputs can be accessed and enumerated by any DirectShow or Media Foundation supported application.
Note: Please Note: The VisionLC-HD card is not supported for wall controller applications that depend on Datapath's MulitStream technology.
- Single HDMI capture channel
- Up to 297 Mp/s capturing up to 3840 x 2160p at 30 Hz
- 800 Mb/s DMA bandwidth
- High-performance up and down scaling
- Color space conversion to support output formats
- PCI Express Gen 1 x 4 low profile
- Datapath unified Windows and Linux driver support
- Tested applications include Microsoft Media Encoder, VLC, Telestream WireCast, vMix, Opencast Matterhorn, VidBlaster, OBS Project, Adobe Flash Media Encoder, and Dataton Watchout
| Card Type | PCIe Gen 1 x 4 plug-in card |
| Connector | 1 x HDMI |
| Rate | Pixel Rate: 297 Mp/s |
| Capture Resolution | 4096 x 2160p at 30 Hz |
| Transfer Rate | 800 Mb/s maximum DMA transfer rate |
| Color Space Conversion | 32-/ 24- / 16-bit RGB (4:4:4) 16-bit YUV (4:2:2) 12-bit YUV, NV12, YV12 (4:2:0) |
| Audio Support | Stereo pair PCM audio via each HDMI channel at 16 bits in depth, sampling options include 44.1/ 48/ 96 kHz |
| Low Latency | LiveStream: Capture Single frame time plus DMA transfer of final line |
| Operating System Support | Linux Windows Server 2003, 2008, Vista, XP, 7, 8/8.1, and 10 |
| Power Requirements | Maximum Current at 1 A at 3.3 V Maximum Power: 3.3 W |
| Operating Temperature | 32 to 96°F (0 to 35°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Relative Humidity | 5 to 90% non-condensing |
| Dimensions | 4.1 x 2.5" (103 x 64 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.7 lb |
| Box Dimensions (LxWxH) | 12.6 x 6.6 x 4.0" |
- VisionLC Software CD
- Limited 3-Year Warranty
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 72716.0 |
| 3-5 | ₹ 71974.0 |
| 5-10 | ₹ 70490.0 |
| 10+ | ₹ 69006.0 |
Bulk discount will be automatically applied during checkout based on quantity.
