Description
Dahua Technology DH-IPC-HUM8441-E1-L4 Overview

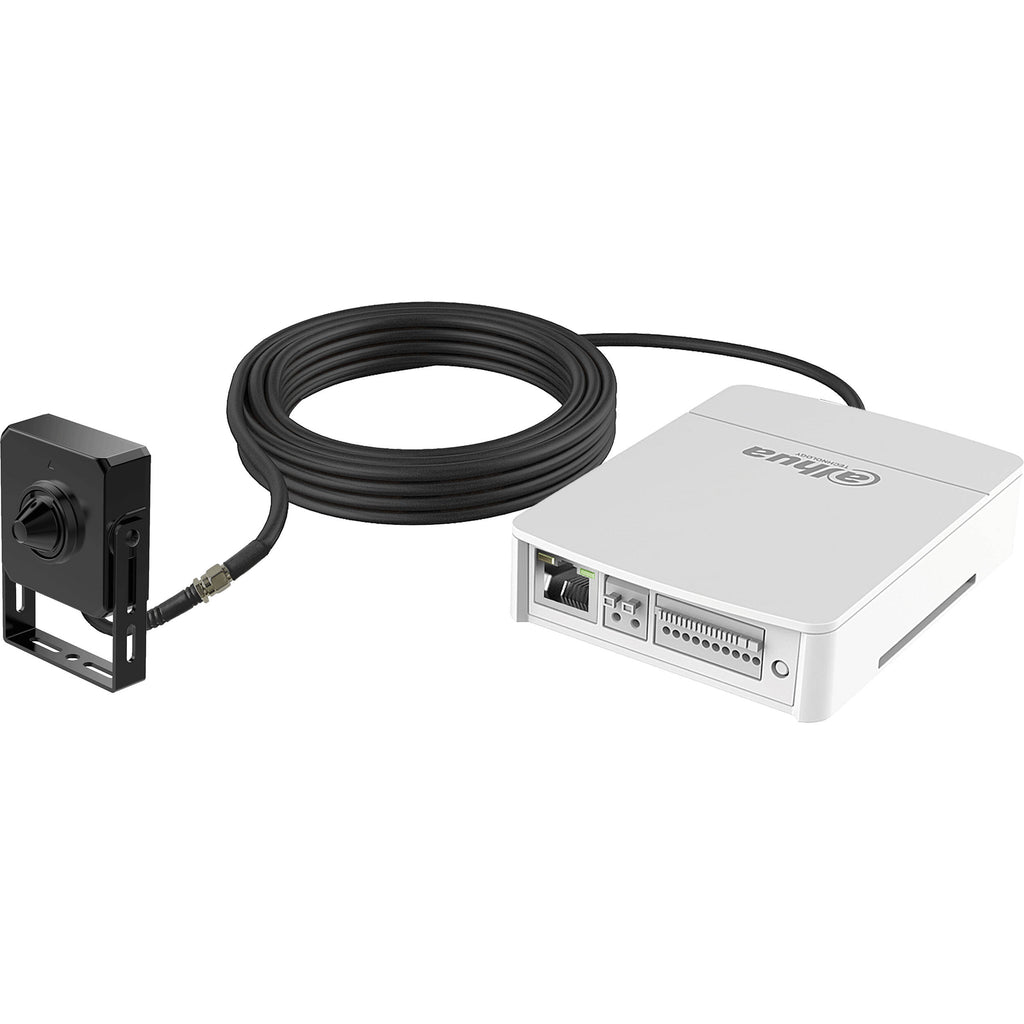

Suitable for covert surveillance, the WizMind Series DH-IPC-HUM8441-E1-L4 4MP Pinhole Network Camera Kit from Dahua Technology includes a main processor unit, a camera unit with a 2.8mm pinhole lens, and a 26' cable for flexible placement. The camera uses a 1/2.7" progressive scan CMOS sensor to capture 2688 x 1520 resolution video at 30 fps. A 101° horizontal field of view is delivered by the 2.8mm lens. Two-way audio is possible thanks to an audio input and output on the processor unit. A memory card slot supports microSD cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Housed in a waterproof metal enclosure, this camera kit complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices.
IVS (Intelligent Video System) analytic algorithms for tampering, memory card error, network error, unauthorized access, and IP address conflict
Perimeter protection for tripwire violations and intrusion
Face detection and intelligent search
Motion detection for four rectangular zones
Operational in temperatures as low as -40°F (not for outdoor use)
Day and night switching
CBR and VBR
2.62' close focus distance
0, 90, 180, and 270° image rotation
Auto, manual, gain priority, and shutter priority gain control
Additional features include: >56 dB S/N ratio, BLC, HLC, 120 dB WDR, SSA, white balance, defog, mirroring, 3D-DNR, ROI (region of interest) for four zones, and privacy masking for four areas
Up to 20 users
Compatible with Internet Explorer (8, 9, and 11), Chrome, Firefox, iOS, Android, Smart PSS, DSS, and DMSS
UPC: 810053975497
In the Box
- Dahua Technology WizMind Series DH-IPC-HUM8441-E1-L4 4MP Pinhole Network Camera Kit
- DH-IPC-HUM8441-E1 Processor Unit
- IPC-HUM8441-L4 Camera & Lens Unit
- 26' Cable
- Limited 5-Year Manufacturer Warranty
Not in the Box
- Essential Power over Ethernet (PoE) (Not Included)
Dahua Technology DH-IPC-HUM8441-E1-L4 Specs
Camera
| Sensor | 4 MP 1/2.7" CCD |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2 |
| Lens Field of View | Horizontal: 101° Vertical: 57° Diagonal: 115° |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.005 Lux B&W: 0.0005 Lux |
| Shutter Speed | 1/100000 to 1/3 Seconds |
| DORI Coverage | With 2.8mm Lens: Detect: at 200.13' / at 61.00 m Observe: at 80.05' / at 24.40 m Recognize: at 40.03' / at 12.20 m Identify: at 20.01' / at 6.10 m |
Video
| Streaming Resolution | 2688 x 1520 at 30 fps (20.48 Mb/s ) |
| Supported Video Compression | H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming | Yes, 3 Streams |
| Automatic Gain Control | Yes |
Audio
| 1- or 2-Way Audio | Two-Way |
| Audio Formats | G.711, G.723, G.726, PCM |
| Audio I/O | Input: 1 x 1/8" / 3.5 mm Output: 1 x 1/8" / 3.5 mm |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering |
| Supported Protocols | ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTMP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP, syslog |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T, CGI, P2P, SDK, API |
| Analytics | Tampering, Memory Card Error, Network Error, Unauthorized Access, IP Address Conflict, Perimeter Protection (Tripwire, Intrusion), Intelligent Search, Face Detection |
| OS Compatibility | Android iOS *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Sensors & Alarms
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
| Alarm I/O | 2 / 2 |
Hardware
| Memory | 128 MB RAM / 1000 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Internal Storage | None |
| External Storage Options | NAS |
Power
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 3.9 W PoE: 4.8 W |
Environmental
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Storage Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 0 to 95% |
| Environmental Protection | None |
General
| Inputs/Outputs | 1 x RJ45 1 x Power |
| Video Management Software | Smart PSS, DSS, DMSS |
| Certifications | FCC (Part 15 Class B), as per Manufacturer |
| Material of Construction | Metal (Unspecified Type) |
| Dimensions | H: 1.4 x W: 1.4 x L: 1.1" / H: 35.0 x W: 35.0 x L: 26.7 mm (Camera Unit) H: 3.3 x W: 4.3 x L: 0.9" / H: 83.0 x W: 110.0 x L: 24.0 mm (Processor Unit) |
| Weight | 0.5 lb / 210 g |
