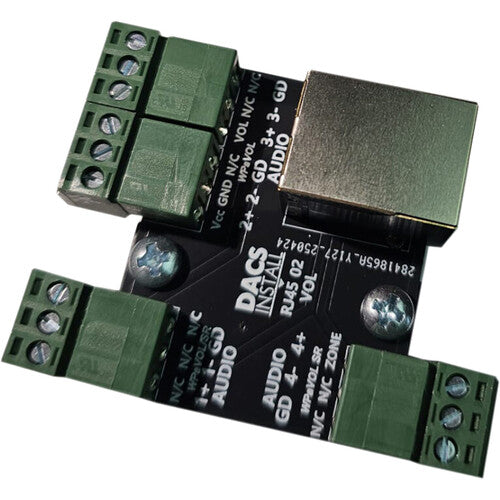

DACS Audio RJ45 02/VOL Cat 5/6 Breakout Interface PCB

Roll over image to zoom in

DACS Audio RJ45 02/VOL Cat 5/6 Breakout Interface PCB


	₹ 14480.0 includes GST and import duties.
	B2B customers can avail ₹ 2208.2 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	DACS Audio
SKU:	7440526671957
MPN:	RJ45

Share this product

DACS Audio RJ45 02/VOL Overview

The DACS Audio RJ45 02/VOL is a compact, installation-friendly interface designed to route four balanced audio lines over a single Cat 5/6 cable. Building on decades of DACS system-integration experience, this module delivers a clean, efficient wiring solution for stageboxes, wall plates, and remote volume/source controls. Its compact 44.5 x 36.5mm footprint allows seamless integration into custom panels, DIN-rail setups, and small enclosures within the DACS Install ecosystem.

Designed for maximum compatibility, the RJ45 02/VOL uses a pinout that matches CATCore?s T568A and T568B wiring scheme, enabling it to serve as a breakout interface for SMD stage boxes and UP55 wall plates without any rewiring work. It also supports Ecler WPaVOL/SR control modules, with clearly labeled connectors for fast, error-free installation.

Four Balanced Audio Lines on One Cable

The RJ45 02/VOL allows installers to send four balanced audio feeds down a single Cat 5/6 run?ideal for distributed audio, stage connectivity, or compact system infrastructures. While DACS recommends using screened cable for best noise immunity, the design is robust enough to operate reliably over unscreened twisted pairs.

Compatible With CATCore, Ecler, and DACS Install Hardware

Matching CATCore's T568A/B configuration, the module acts as a direct breakout for common SMD and UP55 interfaces. For applications using the Ecler WPaVOL/SR, all required wiring points-Vcc, 0V, VOL/Source-are clearly marked for simplified integration. A single FST cable connects to the GPI port for volume or source control; for systems requiring both, two FST cables are used with shared Vcc and 0V.

Trusted DACS Install Platform

The RJ45 02/VOL incorporates the same installer-focused design language used across the DACS Install series, offering:

Clear labeling for audio and control lines
Robust PCB layout suitable for DIN-rail mounting or enclosure integration
Reliable 0V/screen management for balanced audio
Flexible use in new systems or upgrade paths

Items Included

DACS Audio RJ45 02/VOL Cat 5/6 Breakout Interface PCB
Limited 1-Year Manufacturer Warranty

Additional Resources

No additional resources available

DACS Audio RJ45 02/VOL Specs

General

Compatibility

Ecler WPaVOL/SR

Inputs/Outputs

Audio I/O	4x Block Input
Control Port	GPO Input: Block Connector
Output	Power, GPO Control, and Audio: Cat5/6

Power

Power Source

Proprietary Interface

Physical

Mounting	1x DIN Rail
Color	Black
Dimensions	1.8 x 1.4" / 44.5 x 36.5 mm
