- Wall or Ceiling Mounted
- Non-Tensioned
- 99" Diagonal
- Square (Audio-Visual) Format
- 1:1 Aspect Ratio
- Front Projection
- Matte White Finish
- 120V, 60Hz

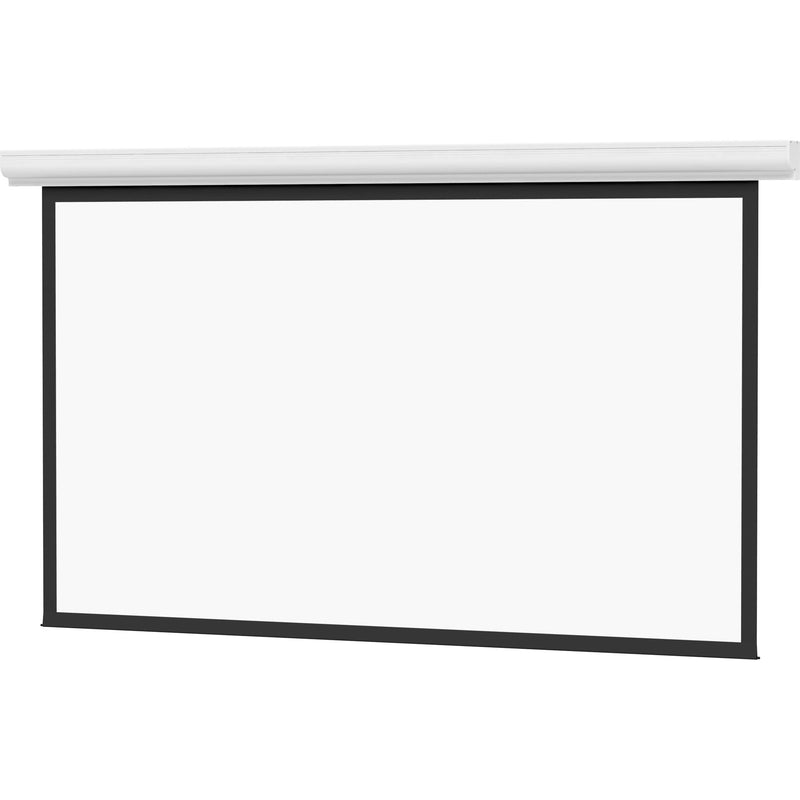

The Dalite 70 x 70" Designer Contour Electrol Motorized Projection Screen is great for any room, especially boardrooms, where aesthetics are important. This reliable and fashionable screen features a built-in quality motor with a 3-position wall switch. The case is extruded aluminum and sleek measuring only 4.6 x 4.1" (HD). For those who prefer a more stylish finish to their case, a selection of various veneers is available upon purchase.
The in-the-roller motor is designed to provide reduced noise during operation. This screen is available in a variety of designs and finishes to accommodate your venue.
Note: An optional choice of seven veneer finishes is available for case. Standard veneers: Cherry, Mahogany, Light Oak, Natural Walnut, Medium Oak, Honey Maple and Heritage Walnut. Standard laminates: Cherry, Mahogany, Gunstock Walnut, and Light Oak. Cases covers with Honey Maple, Light Oak and Medium Oak finishes come standard with white base and end caps. Cherry, Mahogany, Natural Walnut and Heritage Walnut cases covers come with black base and end caps. Specify when purchasing.
- The optional choice of a veneer or laminate case finish will give your screen a warmer and more classic appearance
- Patented in-the-roller motor mounting system for quiet operation
- Custom finishes available upon request
- Front of the case is easily removed for installation
- Matte White and Glass Beaded fabric will be seamless in select sizes
- UL Listed
UPC: 717068814059
In the Box
Da-Lite 89718 Designer Contour Electrol Motorized Screen (70 x 70")
Three-Position Wall Switch Cover Plate One-Year Warranty
Da-Lite 89718 specs
| Type |
| Style | Designer Contour Electrol |
| Front/Rear Projection | Front |
| Mount | Wall or Ceiling |
| Finish | Matte White; flame retardant and mildew resistant fiberglass |
| Tension Control | Non-tensioned |
| Keystone Control | Not Applicable |
| Dimensions |
| Overall Size | Not Specified by Manufacturer |
| Image Size | 70 x 70" (1.8 x 1.8 m) |
| Diagonal | 99" (2.5 m) |
| Format | Square (Audio-Visual) |
| Aspect Ratio | 1:1 |
| Masking Options | Standard black masking borders |
| Controls |
| Voltage | 120V, 60Hz |
| Integrated Control |
Motor mounted inside the roller with a patented noise silencer
Pre-set but adjustable limit switches to automatically stop picture surface in the "up" and "down" positions |
| Control Options | 3-position control switch with cover plate (included) |
| Casing |
| Color | White, lightly textured powder coat |
| Material | Extruded aluminum |
| Length | 79.25" (2 m) |
| Packaging Info |
| Package Weight | 41.3 lb |
| Box Dimensions (LxWxH) | 90.5 x 8.0 x 6.0" |
