- Wall Mounted
- Fixed Frame
- Tensioned
- 92" Diagonal
- HDTV Format
- 16:9 Aspect Ratio
- DA-Tex Finish
- Rear Projection

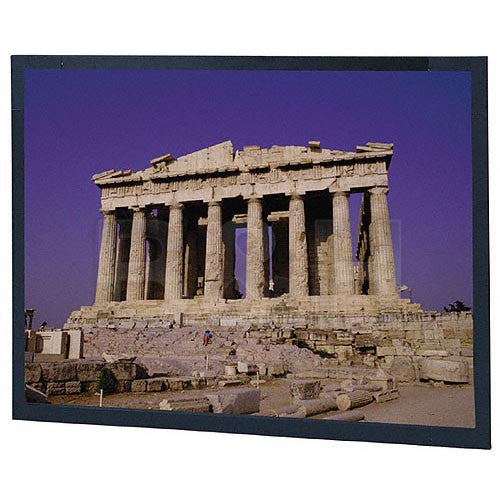

The Da-Lite 45 x 80" Da-Snap Projection Screen is a fixed frame screen that is suitable for business or personal use. Using the snaps or optional touch fastener tabs, you can easily and readily change the screen surface to accommodate your need.
The screen finish is mounted to a rugged frame that features a black masking border. The border provides a finishing touch to the screen and helps keep your audience focused on the screen.
For the business person on a budget or with a smaller seminar room, the Da-Snap is the perfect solution. When a motorized installation is not feasible or desired, the Da-Snap fits the bill. Easy to use, economical and flexible, this affordable and functional screen provides a solution by offering you a simple audio-visual projection set up.
- Provides a perfectly flat viewing surface for video projection applications
- Frame available with Pro-Trim finish for an additional charge - Pro-Trim is a fabric frame covering that aesthetically enhances the appearance of the installation while absorbing light that surrounds the viewing area
- Da-Mat, High Contrast Da-Mat, Da-Tex (Rear), Pearlescent, Cinema Vision, High Contrast Cinema Vision and Dual Vision fabrics up to and including 16' high will be seamless; Audio Vision, High Contrast Audio Vision and High Contrast Cinema Perf fabrics up to and including 8' high will be seamless; High Power fabric up to and including 6' high will be seamless
In the Box
Da-Lite 83418 Da-Snap Projection Screen (45 x 80")
Mounting Brackets Limited 1-Year Warranty
Da-Lite 83418 specs
| Type |
| Style | Da-Snap Fixed Frame |
| Front/Rear Projection | Rear |
| Mount | Wall |
| Finish | DA-Tex - fire retardant and mildew resistant |
| Tension Control | Tensioned |
| Keystone Control | Not Applicable |
| Dimensions |
| Overall Size | 48 x 83" (1.2 x 2.01 m) |
| Image Size | 45 x 80" (1.1 x 2.0 m) |
| Diagonal | 92" (2.3 m) |
| Format | HDTV |
| Aspect Ratio | 16:9 |
| Masking Options | Surface mounts to back of black powder coated frame that provides a masking border |
| Controls |
| Voltage | Not Applicable |
| Integrated Control | Not Applicable |
| Control Options | Not Applicable |
| Casing |
| Color | Black powder coated |
| Material | Aluminum with 0.062" walls |
| Length | Not Applicable |
| General |
| Shipping Weight | 28 lb (12.7kg) |
| Packaging Info |
| Package Weight | 26.0 lb |
| Box Dimensions (LxWxH) | 91.0 x 9.0 x 8.0" |
