D.A.S Audio Vantec-20A 2-Way 12" 1500W Powered Curved Source Line Array Speaker Module with DSP and Bluetooth

For Live, Corporate, Touring, Rental

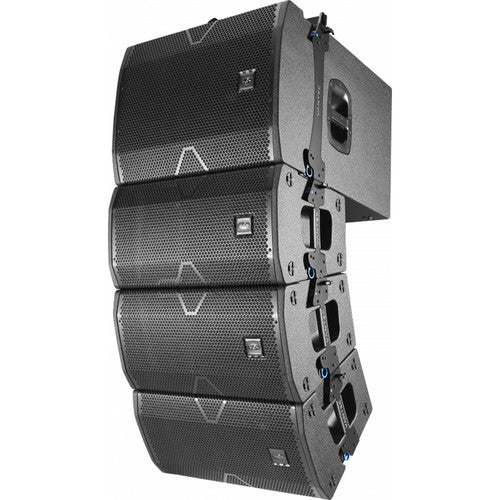

Scalable Sound System up to 5 Modules

DAScontrol with Presets & Configuration

DASLink Audio Streaming & Control

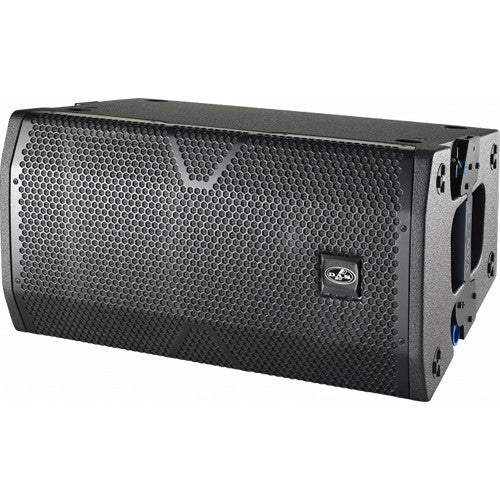

The 12", 2-way D.A.S. Audio Vantec-20A is a compact 1500W powered, curved source, line array speaker module that's scalable for a wide variety of live sound and performance applications. The Vantec-20A is designed for use with the Vantec-118A active front-loaded subwoofer, which provides ample low-frequency extension. Up to 5 modules per hang can provide sound to mid- to large-scale applications. The onboard DSP processing and LCD interface with easy-to-use presets help sound providers achieve clarity, definition, and an overall natural sound.

The speaker provides 90 x 15° (HxV) coverage and 135 dB of peak SPL�plenty of volume for a broad range of applications including houses of worship, theaters, auditoriums, performing arts centers, live music clubs, corporate AV, and live sound touring/rental service providers. The highly efficient 1500W Class-D bi-amplifier powers the 12" woofer and the two high-frequency drivers, providing crisp, detailed sound with a wide frequency range from 20 kHz down to 63 Hz.

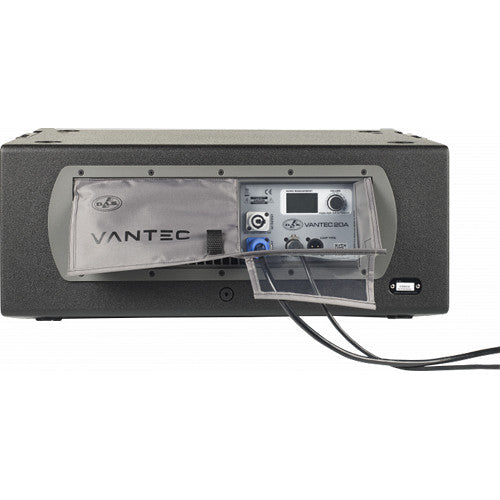

The rear panel features a balanced XLR input and thru-out as well as powerCON input and output, making power and audio daisy-chaining an easy affair. The DAScontrol audio management DSP is accessible via the built-in LCD / encoder and features Finite Impulse Response (FIR) filters, which provide a linear phase response and a precise impulse response. The DAScontrol interface offers quick and hassle-free setup of systems in arrays and easy alignment with Vantec-118A subwoofer system and requires no additional processing. Presets for the number of units of the array, high-frequency compensation for throw distances, and correction for the splay angle of the array can be selected by way of the DAScontrol and LCD screen. Additionally, the Vantec-20A is compatible with the DASLink control app, which affords Bluetooth streaming and remotely controlled system functions.

The trapezoidal enclosure is constructed from birch plywood and features a black ISO-flex finish. The robust captive rigging system is simple to setup, making for fast and easy deployment of a line array with multiple configuration options including ground stacking. The dual M-60 compression drivers and purpose-designed, high-frequency waveguide provides remarkable performance, sensitivity, and coverage in the formats offered. The Vantec-20A includes a powerCON power cord.

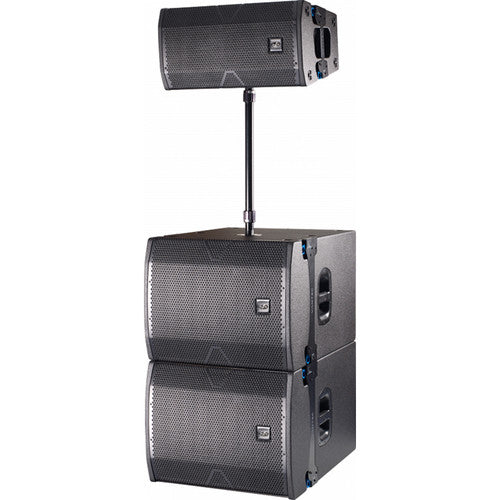

Active curved source line array Class-D bi-amplified 1500W peak FIR filters for linear phase response 1 x 12" DAS 12F4C woofer and 2 x M-60 compression drivers Complex waveguide design for high frequencies Compact design with high-output capabilities DAScontrol with presets and configurations DASlink wireless streaming and remote control ±13° variable tilt pole mount

Configuration	Active 2-Way
Enclosure Type	Line Array
Total Power Capacity	1500 W Peak
Amplifier Power Rating	750 W RMS 1500 W Peak
Amplifier Class	Class-D
System Impedance	8 Ohms

HF Driver	2 x 1.5" / 3.8 cm Compression Driver
MF Driver	None
LF Driver	1 x 12" / 30.48 cm Woofer

Frequency Range	63 Hz to 20 kHz -10 dB
Maximum SPL	135 dB
Coverage Angle	90° H x 15° V
Input Sensitivity	Line Input: +12 dBu
I/O Impedance	Line Input: 20 Kilohms

Audio I/O	1 x XLR 3-Pin Female Balanced Line Input 1 x XLR 3-Pin Male Balanced Line Thru
Network I/O	None
USB	None
Wireless Connectivity	Bluetooth

EQ	Yes
Parametric EQ	Yes
Semi-Parametric EQ	Yes
Alignment Delay	Yes
Phase Adjustment	Yes
Digital Signal Processing	FIR Filter

AC Input Power	90 to 250 VAC, 50 / 60 Hz
AC Power Connector	1 x powerCON Input 1 x powerCON Output
Current Consumption	100 VAC: 3 A 230 VAC: 1.5 A

Mounting	Integrated Rigging
Handles	1 x Each Side
Construction Material	Plywood
Dimensions	13.2 x 24.6 x 17.3" / 335 x 625 x 440 mm
Weight	62.9 lb / 28.5 kg
