Description
- For Live Sound and Mobile Applications
- 2 x 10" Woofers + 1" Compression Driver
- Frequency Response: 70 Hz to 20 kHz
- Class-D Amplifier: 3 x 360W Peak
- Peak SPL: 132 dB
- Dispersion: 60º x 20/30º
- High-Pass Filter: 90 Hz
- XLR Input and Output
- Two Bar Handles and Steel Grille
- Low-Profile Enclosure for Wedge Monitor

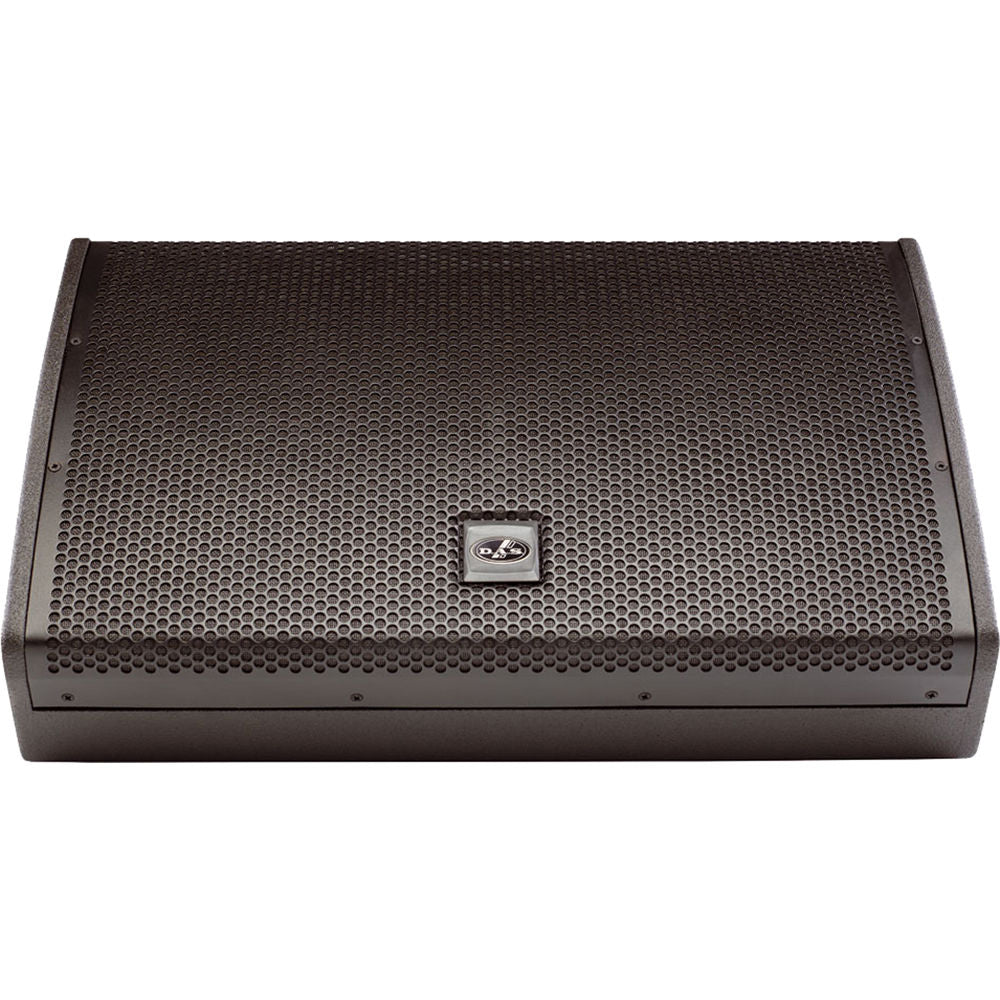

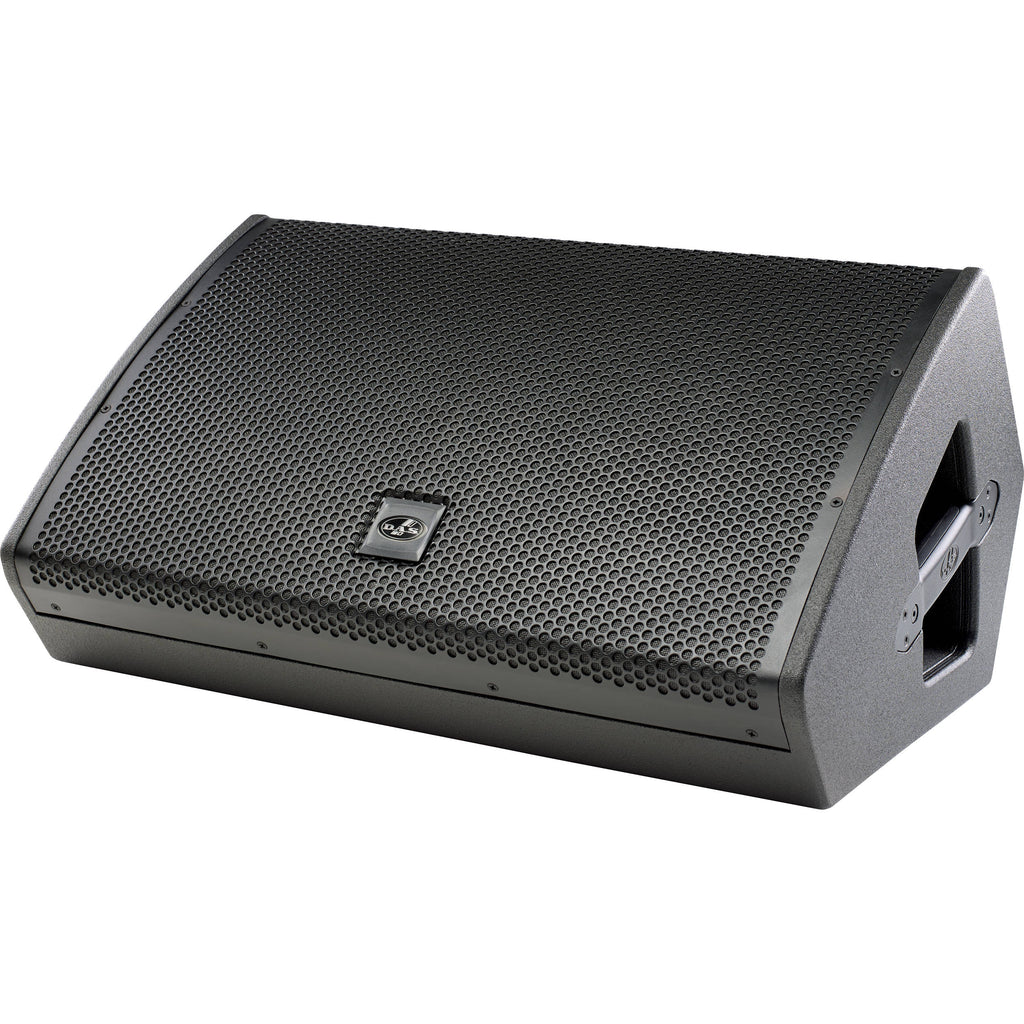

The single D.A.S. Event M210A is a powered, full-range, three-way stage monitor designed for professional live sound reinforcement applications. The speaker features three built-in Class-D amplifiers, providing 360W of power to the two 10" woofers and the 1" compression driver that combine to offer a frequency response of 70 Hz to 20 kHz and a peak SPL output of 132 dB. The two 10" woofers use a "twin-band" configuration, where each speaker operates in a specific frequency range. Advanced digital signal processing feeds the mid signal to only one of the two low-frequency drivers, while the other is rolled off. This technique eliminates off-axis interference between the drivers, enabling the monitor to maintain optimal polar and frequency response characteristics throughout the low and low-mid operating ranges. The injected aluminum wave-guide provides a coverage of 60º horizontal dispersion.
The rear panel of the speaker offers a line level XLR input and an XLR loop-thru output for connecting additional monitors. There are integrated switches for a 90 Hz high-pass filter and for low-frequency decoupling when using two speakers. Additionally, each monitor features PowerCon inputs and outputs for daisy-chaining up to nine Event M210A monitors. The ISO-flex painted birch plywood enclosure utilizes two bar handles for ease in transport, while the steel grille provides ample protection to the speaker's drivers. The D.A.S. Event M210A ships with a power cord.
-
- Powered 3-way system
- Light-weight Class-D amplifier topology
- Amplifier Power: 3 x 360W peak
- 2 x 10" woofers + 1 x 1" titanium compression driver
- Proprietary injected aluminum HF waveguide (not plastic)
- High-end DSP chipsets
- Easy-DSP Interface
- Quality Neutrik connectors
- Top-grade birch cabinet construction
- Durable ISO-flex finish
- Power Cord
- Limited 2-Year Warranty
| Amplifier (Power) | Low-Frequency Power Amplifier: 360 W peak, 180 W continuous Mid-Frequency Power Amplifier: 360 W peak, 180 W continuous High-Frequency Power Amplifier: 360 W peak, 180 W continuous |
| Input Type | Balanced differential line |
| Input Impedances | Line: 20 kOhms |
| Sensitivity | Line: 6.2 V (+18 dBu) |
| Frequency Range | On-Axis Frequency Range (-10 dB): 70 Hz to 20 kHz |
| Maximum SPL | 132 dB (1 m) |
| Beam Width | 60º horizontal, 20º up - 30º down |
| Enclosure Material | Birch plywood |
| Finish | Black, ISO-flex paint |
| Drivers | Woofers: 2 x 10.0" / 25.4 cm Compression Driver: 1" / 2.5 cm |
| Replacement Parts | LF: 1 x 10Mi4/GM 10Mi4 MF: 1 x 10Mi4/GM 10Mi4 HF: 1 x M-60/GM M60N |
| Connectors | Input: Female XLR Loop-Thru: Male XLR AC Input: powerCON FCA AC Output: powerCON FCB |
| AC Power Requirements | 115 VAC, 3 A, 50/60 Hz |
| Dimensions (H x W x D) | 13.2 x 25.5 x 18.0" / 336 x 648 x 457 mm |
| Weight | 53.9 lb / 24.4 kg |
