Description
- For Live Sound and Mobile Applications
- 2 x 10" Woofers + 1.5" Compression Driver
- Frequency Response: 70 Hz to 20 kHz
- Class-D Amplifiers: 3 x 360W Peak
- Peak SPL: 134 dB
- Horizontal Coverage: 90º
- Birch Plywood Enclosure
- XLR Input and Output
- Two Bar Handles and Steel Grille
- Integrated Rigging System
The single D.A.S. Event 210A is a powered, full-range, three-way line array module designed for professional live sound reinforcement applications. The speaker features three built-in Class-D amplifiers, providing 360W of power to the two 10" woofers and the 1.5" compression driver that combine to offer a frequency response of 70 Hz to 20 kHz and a peak SPL output of 134 dB. The two 10" woofers use a "twin-band" configuration, where each speaker operates in a specific frequency range. Advanced digital signal processing feeds the mid signal to only one of the two low-frequency drivers, while the other is rolled off. This technique eliminates off-axis interference between the drivers, enabling the Event line arrays to maintain optimal polar and frequency response characteristics throughout the low and low-mid operating ranges. The injected aluminum wave-guide provides a nominal 90º horizontal dispersion.

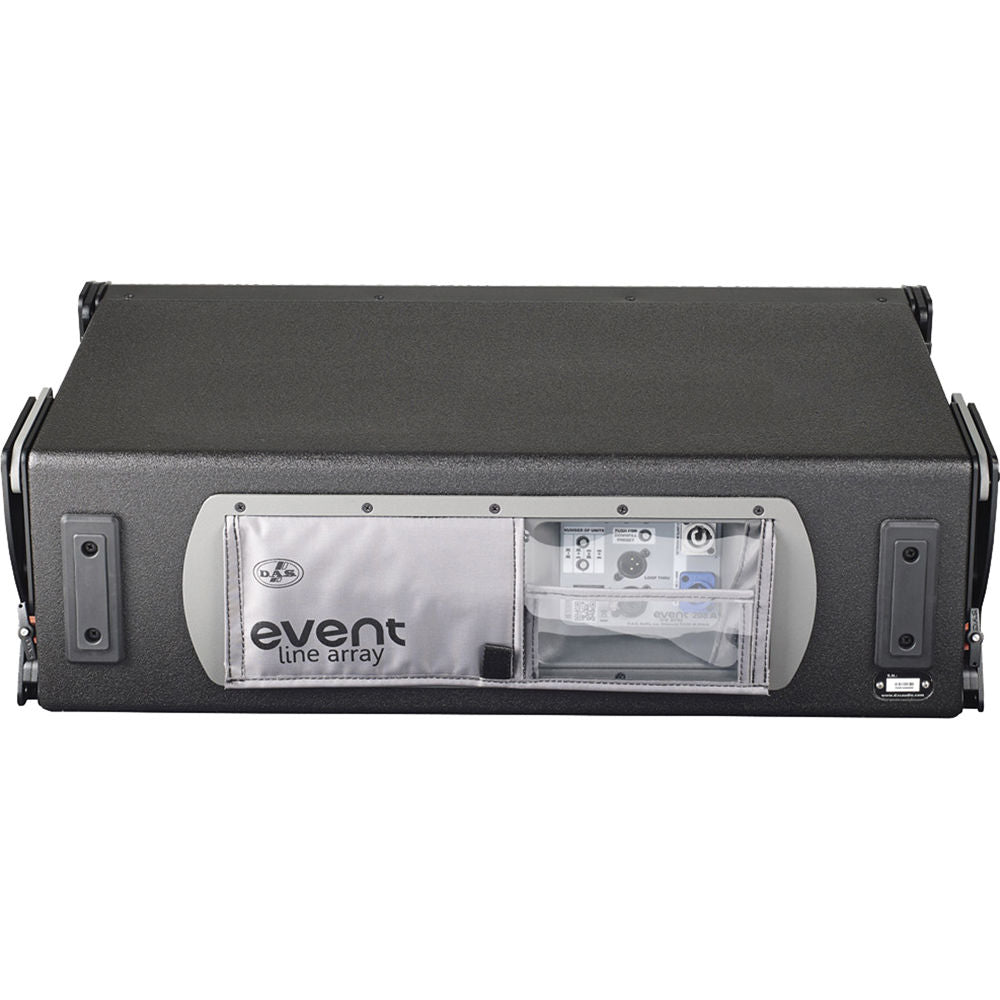

The rear panel of the speaker offers a line level XLR input and an XLR loop-thru output for connecting additional array modules. The integrated "Easy DSP" utilizes push-button combinations for adjusting the number of array modules. Additionally, there is a down-fill preset button for simplifying long and short throw for down-fill applications. Two on-board limiters protect the electronics and drivers from overload, while an amp cover protects the electronics from the sun and rain.

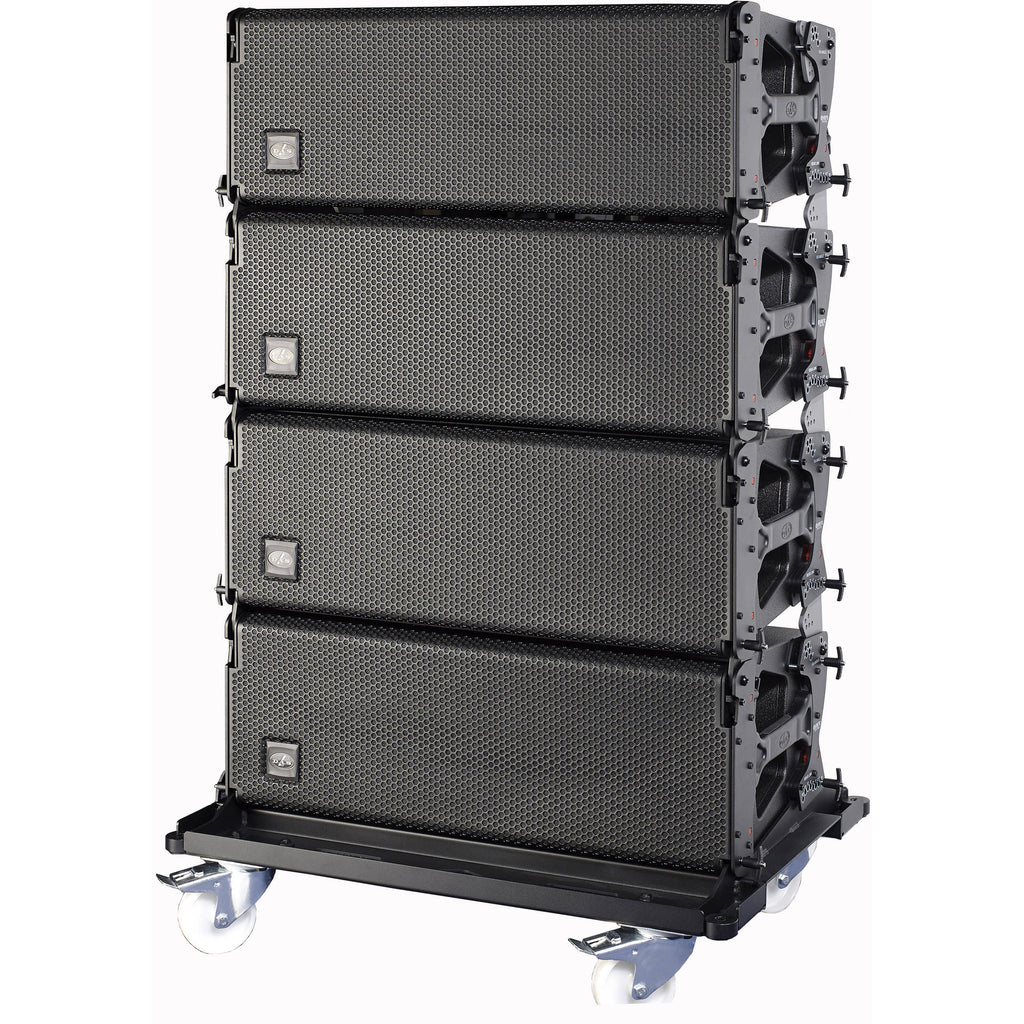

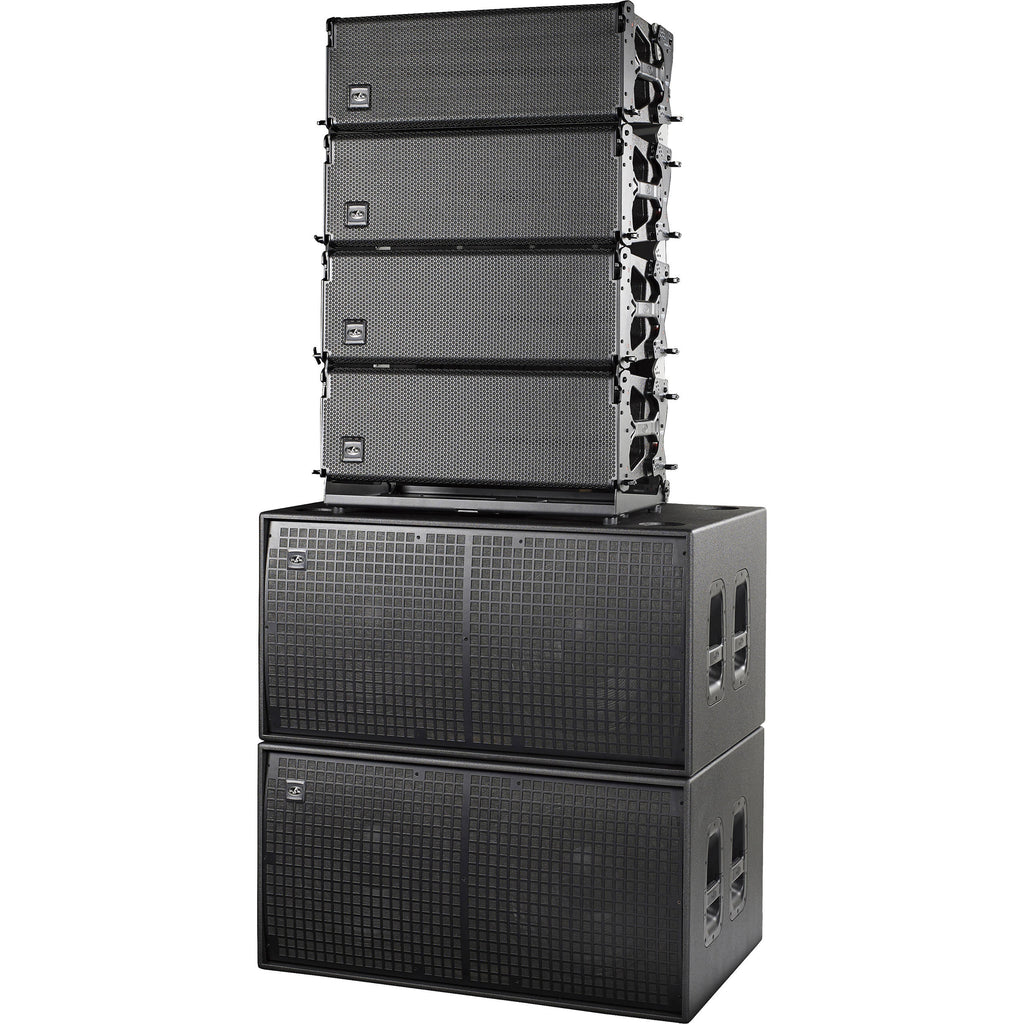

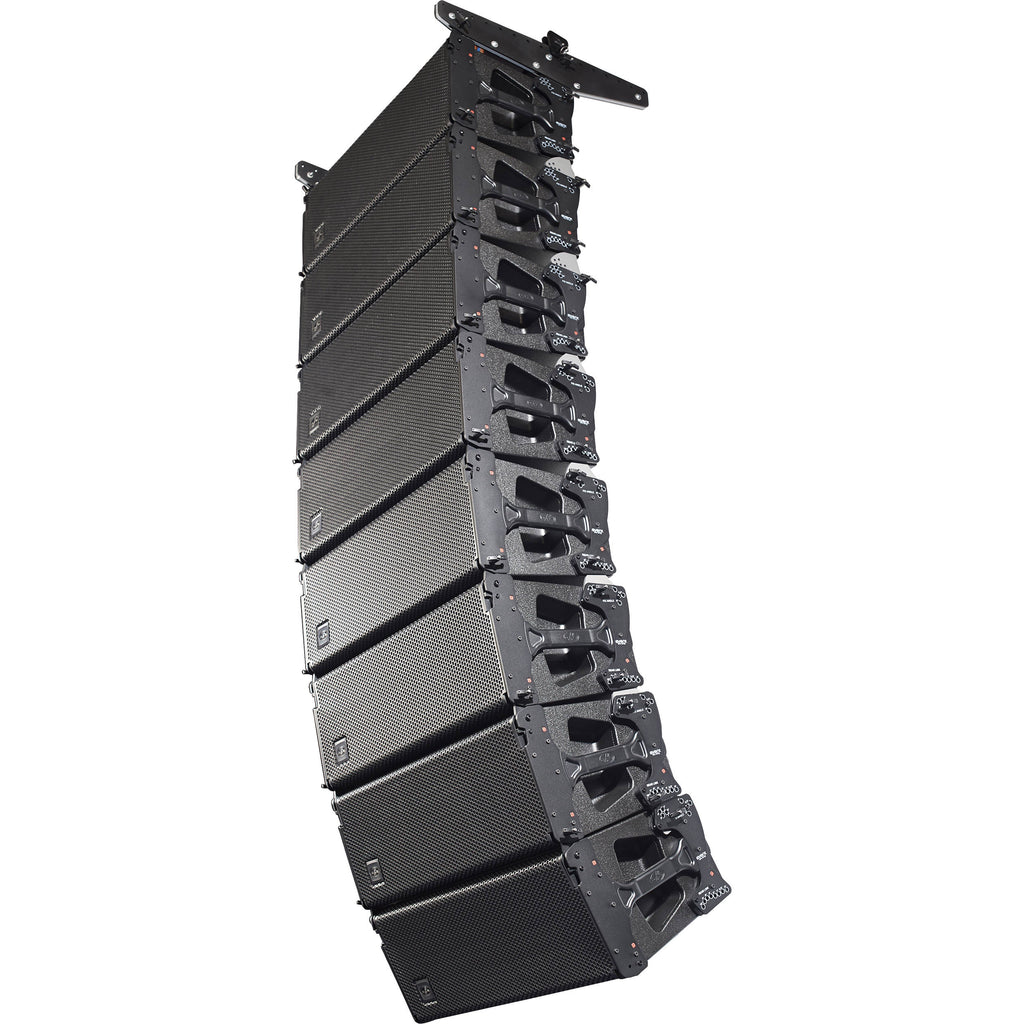

The ISO-flex painted birch plywood enclosure utilizes two bar handles for ease in transport, while the steel grille provides ample protection to the speaker's drivers. A single array module can be placed on a quality speaker stand, while multiples can be used in a ground-stack configuration. Up to 24 line array modules can be flown for the ultimate in large-scale sound reinforcement deployment. The D.A.S. Event 210A ships with a power cord.
-
- Powered 3-way system
- Light-weight Class-D amplifiers
- High-end DSP chipsets
- Easy-DSP interface
- Quality Neutrik connectors
- Top-grade birch cabinet construction
- Durable ISO-flex finish

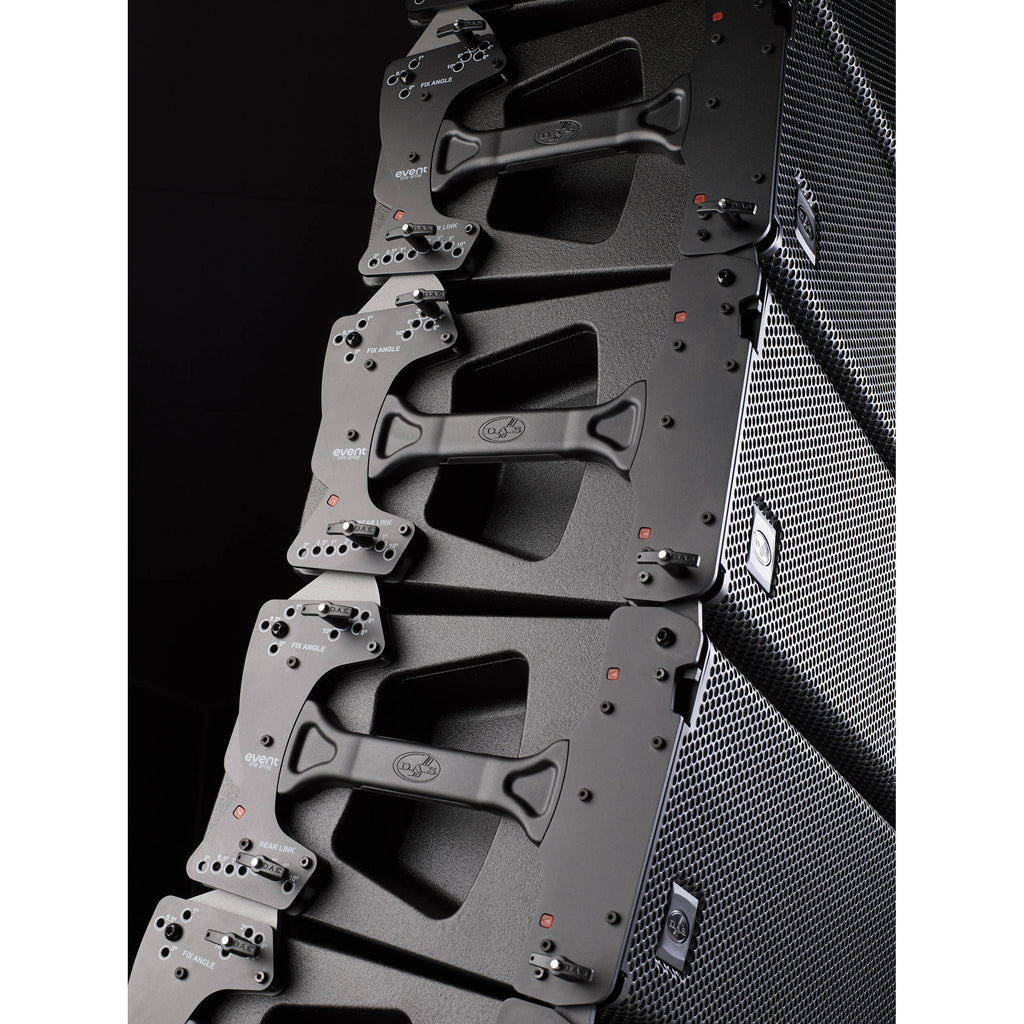

- Robust �quick-rig� professional rigging hardware
- Proprietary injected aluminum HF wave-guide (not plastic)
- D.A.S. M-75 compression driver and cone transducers
- Power Cord
- Limited 2-Year Warranty
| Amplifier (Power) | Low-Frequency Power Amplifier: 360 W peak - 180 W continuous Mid-Frequency Power Amplifier: 360 W peak - 180 W continuous High-Frequency Power Amplifier: 360 W peak - 180 W continuous |
| Input Type | Balanced differential line |
| Input Impedances | Line: 20 kOhms |
| Sensitivity | Line: 6.2 V (+18 dBu) |
| Frequency Range | On-Axis Frequency Range (-10 dB): 70 Hz to 20 kHz |
| Maximum SPL | 134 dB (1 m) |
| Beam Width | Horizontal: 90º Vertical: Splay dependent |
| Enclosure Material | Birch plywood |
| Finish | Black, ISO-flex paint |
| Drivers | Woofers: 2 x 10.0" / 25.4 cm Compression Driver: 1.5" / 3.8 cm |
| Replacement Parts | LF: 1 x 10Mi4/GM 10Mi4 MF: 1 x 10Mi4/GM 10Mi4 HF: 1 x M-75/GM 75 |
| Connectors | Input: Female XLR Loop-Thru: Male XLR AC Input: powerCON FCA AC Output: powerCON FCB |
| AC Power Requirements | 115 VAC, 3 A, 50/60 Hz |
| Dimensions (H x W x D) | 10.6 x 28.7 x 14.4" / 269 x 729 x 366 mm |
| Weight | 74.8 lb / 33.9 kg |
