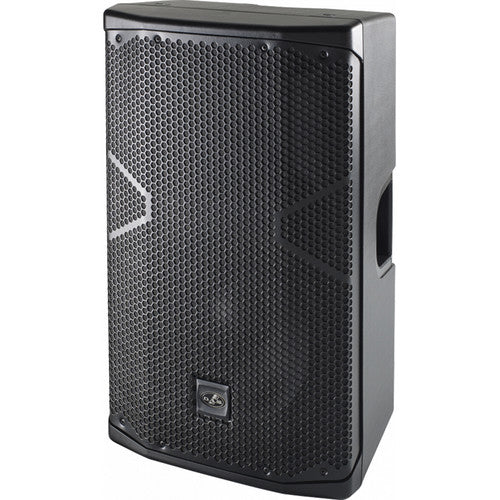

For Concerts, Clubs, Halls & TheatersHigh-Power Passive 2-Way System1200W Peak Power Handling12" Bass Loudspeaker The 12" D.A.S. Audio ALTEA-412 is a 1200W passive point source PA speaker that�s portable, versatile, and simple to use. It can function as a main PA in a wide variety of positions, with a pair able to cover an audience up to 300.
The speaker provides 90x60° (HxV) coverage and 127 dB of peak SPL�plenty of volume for small- to mid-sized venues including corporate A/V, portable DJ, live clubs, concert halls, theatres, auditoriums, and houses of worship. The speaker requires a 1200W amplifier to power the 1" compression driver and 12� woofer, providing crisp, detailed sound with a wide frequency range from 20 kHz down to 68 Hz.

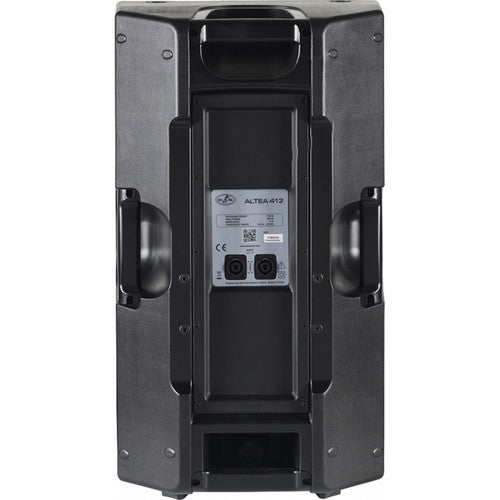

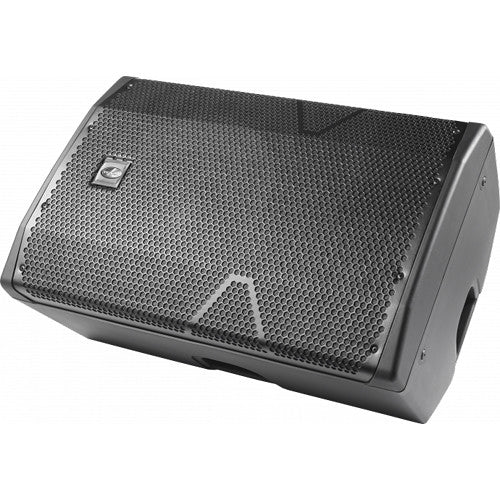

The rear panel features two NL4 speakON connectors. Made from rugged polypropylene, the trapezoidal enclosure can be used as a stage monitor, giving them added versatility. Four ergonomic handles provided easy handling, while the integrated M8 rigging points allow the speakers to be flown for permanent installations.
2-way, full-range sound system 12" woofer 1" compression driver Durable and lightweight polyethene enclosure Trapezoidal angled design can be used as a stage monitor Built-in rigging points Stand mountable
| Configuration | Passive 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor |
| Total Power Capacity | 1200 W Peak (at 8 Ohms)
300 W RMS (at 8 Ohms) |
| Constant Voltage / Transformer Taps | None |
| System Impedance | 8 Ohms |
| HF Driver | 1 x 1" / 25.4 mm Compression Driver |
| MF Driver | None |
| LF Driver | 1 x 12" / 304.8 mm Woofer |
| Frequency Response | 68 Hz to 20 kHz |
| Maximum SPL | 127 dB |
| Coverage Angle | 90° H x 60° V |
| Speaker Sensitivity | 96 dB |
| Audio I/O | 2 x speakON NL4 Speaker Input/Thru (Lockable) |
| Filters | None |
| Phase Adjustment | None |
| Mounting | M8 Fly Point
1.4" / 35 mm Pole Socket (Bottom) |
| Handles | 4 |
| Construction Material | Polypropylene |
| Dimensions | 25.8 x 15 x 13.8" / 65.5 x 38.1 x 35.1 cm |
| Weight | 32 lb / 14.5 kg |
In the Box
- D.A.S Audio ALTEA-412 Portable 2-Way 12" Passive Point Source Speaker (1200W)
- Limited 2-Year Warranty
