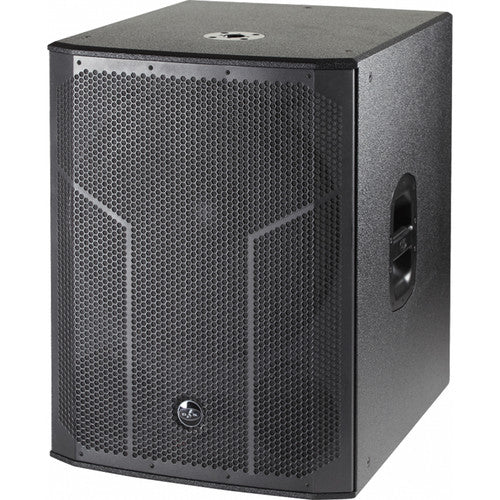

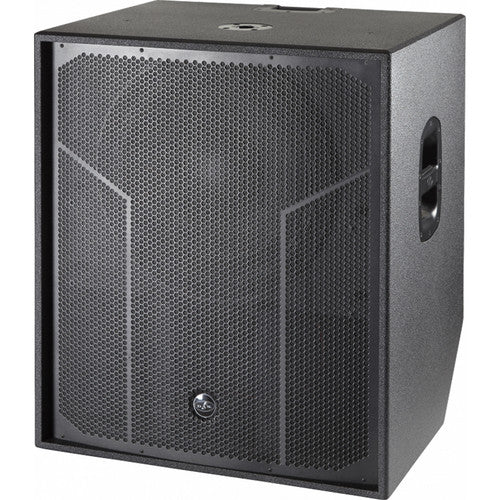

D.A.S Audio ACTION-S118A 18" 3200W Powered Horn-Loaded Subwoofer System with DSP

For Mid-Sized Spaces / Up to 300+ People

Clean, Clear, Loud & Portable

Dual Input for Stereo Signals

Frequency Range: 35 Hz - 125 Hz

The 18" D.A.S. Audio ACTION-S118A is a 3200W powered horn-loaded subwoofer that�s portable, versatile, and simple to use. It is designed to supplement a main PA speaker, offering a louder and deeper bass extension to the ACTION-508A, -512A, -515A, or any full-range PA speaker, and it's is suitable for audiences up to 300. The onboard DSP processing, 2-input channels, and a dedicated crossover knob help working presenters, musicians, instructors, performers, and A/V providers get powerful, clean, and clear sound quickly. The specialty 18LX driver is equipped with a 4" voice coil, offering remarkable power handling capacity, reduced distortion, and power compression.

The subwoofer provides 137 dB of peak SPL�plenty of volume for mid-sized venues including houses of worship, conference centers, performance spaces, and meeting rooms. The highly efficient 3200W Class-D amplifier powers the 18� woofer, providing a deep, clean, and detailed bass response with a frequency range of from 125 down to 35 Hz.

The rear panel offers two line-level inputs with combo XLR-1/4" connectors. Two XLR Thru-Output are available for daisy-chaining to additional subwoofers / speakers. An integrated 100 Hz high-pass filter is available for the stereo loop-thru XLR outputs, which can be switched on or off. Additionally, the rear panel includes a variable low-pass filter (63 to 100 Hz), gain control, and polarity reverse. All inputs are mixed to a mono signal internally. For a true stereo L/R operation, two S118As are needed with each to receive independent the left and right signals respectively. The S118A features a powerCON input and thru-put for daisy-chaining power for up to four subwoofers. The ACTION-S118A ships with a standard powerCON power cord.

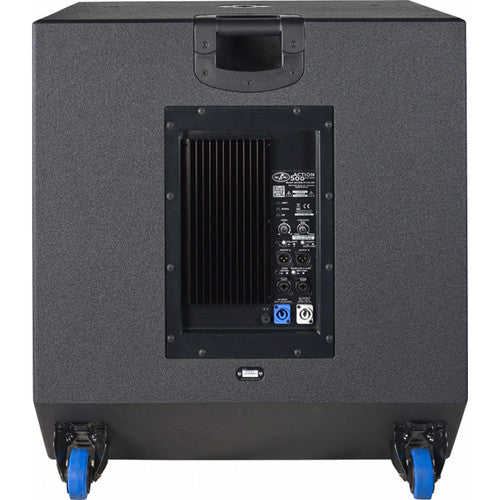

Rear Panel Interface

• Signal input indicator
• Limit indicator
• Level control knob
• Dual combo XLR-1/4" inputs with XLR thru-output
• Preset button: select from factory presets for your application
  • LOUD: provides an even bass response
  • DEEP: provides a boost at 50 Hz
• Low-Pass Filter knob: 63 to 100 Hz (variable)
• High-Pass Filter button (On/Thru): two stereo thru-outputs. Engage when connect to full-range tops
• Polarity reverse button
• PowerCON power input and output for daisy-chaining up to four subwoofers
• Two side handles + top handle and rear casters for ease in transport

Main Features

• Active horn-loaded subwoofer system
• 3200W (peak) Class D amplifier
• 63 to 100 Hz variable LPF
• Deep / Loud EQ switch
• Birch plywood enclosure
• Durable ISO-flex paint

Applications

• Live sound reinforcement
• Bands, DJs, and performers
• Speech and vocals
• Music playback in entertainment
• A/V, conferences, and presentations

Configuration	Active Subwoofer
Enclosure Type	Horn / Folded Horn Subwoofer
Amplifier Power Rating	LF: 3200 W Peak 1600 W RMS
Amplifier Class	Class-D

LF Driver	1 x 18" / 45.72 cm Woofer
LF Voice Coil	4" / 101.6 mm

Frequency Range	35 Hz to 125 Hz -10 dB
Maximum SPL	137 dB (Peak)
Input Sensitivity	+8 dBu
I/O Impedance	Input: 20 Kilohms (Balanced)

Audio I/O

2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Line Input 2 x XLR 3-Pin Male Thru/Output

Crossover	High-Pass: Internal Low-Pass: 63 to 100 Hz (Internal)
Alignment Delay	Yes
Phase Adjustment	180°
Digital Signal Processing	Voicing Modes

AC Input Power	Universal: 115 to 230 VAC, 50 / 60 Hz
AC Power Connector	1 x powerCON Input
Current Consumption	230 VAC: 1.8 A (1/3 Power) 120 VAC: 3.6 A (1/3 Power)

Mounting	1 x 1.38" / 35 mm Pole Socket (Top)
Handles	1 x Each Side 1 x Top
Construction Material	Plywood
Dimensions	30.7 x 27.4 x 22.4" / 779.8 x 696 x 569 mm
Weight	125.7 lb / 57 kg
