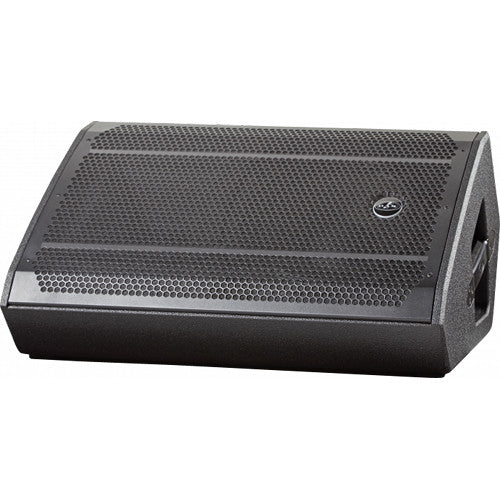

Versatile Floor Monitor & PA SpeakerClean, Clear, Loud & Portable80 x 50° Coverage, 63 Hz to 20 kHzRotatable Horn for Horizontal Deployment The 12" D.A.S. Audio ACTION-M512 is a passive stage monitor / PA speaker that�s portable and simple to use. As a stage monitor, the unit is versatile and well suited for fixed installations and popular portable monitor applications. Its rotatable horn and integrated pole cup allow the M512A to function as a main PA in a wide variety of positions, with a pair able to cover an audience up to 250.

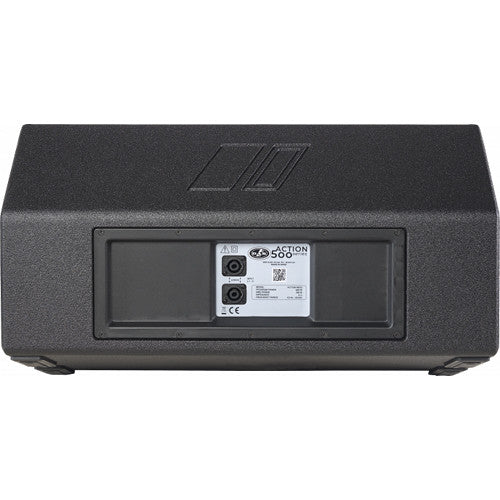

The speaker's HF horn provides 80 x 50° coverage and 130 dB of peak SPL�plenty of volume for any sized stage or small-sized venues including houses of worship, conference centers, performance spaces, and meeting rooms. An amplifier delivering 1200W peak power drives the 1.4" titanium compression driver and 12� woofer, providing crisp, detailed sound with a wide frequency range from 20 kHz down to 63 Hz. The rear panel sports two speakON connectors for input and output, allowing you to daisy-chain to other speakers. Two side handles offer ease in transport.
Note: For long-term optimal performance of ACTION-500 passive speakers, the system can only be a complete sound system when rounded out with amplifiers and processors with stored presets and limiters. Main Features
- Passive two-way stage monitor
- Birch plywood enclosure
- Durable ISO-flex paint
- Recommended processor: DSP-226
- Recommended amplifier: PA series
Applications
- Live sound reinforcement
- Bands, DJs, and performers
- Speech and vocals
- Music playback in entertainment
- A/V, conferences, and presentations
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor |
| Total Power Capacity | 300 W RMS (at 8 Ohms)
1200 W Peak (at 8 Ohms) |
| System Impedance | 8 Ohms |
| HF Driver | 1 x 1.4" / 35.56 mm Rotatable Horn Titanium Compression Driver with 1" / 25.4 mm Throat |
| HF Voice Coil | 1.4" / 35.56 mm |
| LF Driver | 1 x 12" / 30.48 cm Woofer |
| LF Voice Coil | 2.5" / 63.5 mm |
| Frequency Range | 63 Hz to 20 kHz -10 dB |
| Maximum SPL | 130 dB (Peak) |
| Coverage Angle | 80° H x 50° V (Rotatable Horn) |
| Speaker Sensitivity | 95 dB SPL |
| Audio I/O | 2 x speakON NL4 Speaker Input/Thru (Lockable) |
| Mounting | 1 x 1.38" / 35 mm Pole Socket (Side) |
| Handles | 1 x Each Side |
| Construction Material | Perforated Metal Grille, Plywood |
| Dimensions | 25.6 x 17.7 x 13.2" / 650.2 x 449.6 x 335.3 mm |
| Weight | 38.5 lb / 17.5 kg |
In the Box
- D.A.S Audio ACTION-M512 Two-Way 12" Passive Stage Monitor Speaker
- Limited 2-Year Warranty on Enclosure
- Limited 5-Year Warranty on Speaker Components
