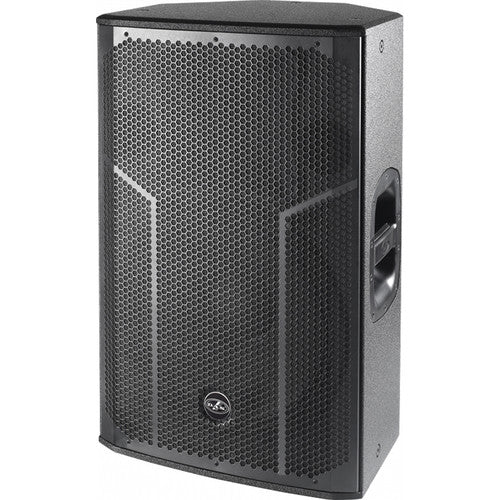

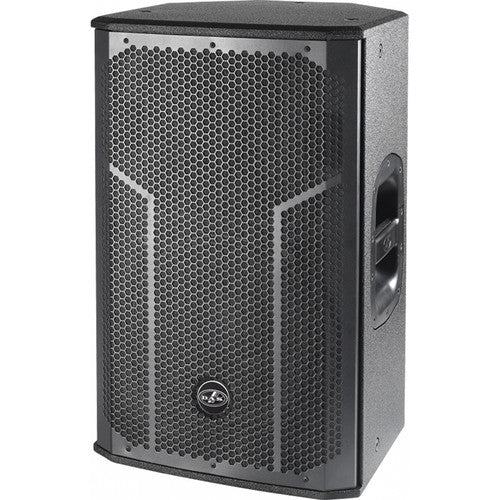

For Small Spaces / Up to 250 PeopleClean, Clear, Loud & Portable90 x 60° Coverage, 50 Hz - 20 kHzRotatable Horn for Horizontal Deployment The 12" D.A.S. Audio ACTION-512 is a passive PA speaker that�s portable, versatile, and simple to use. It can function as a main PA in a wide variety of positions, with a pair able to cover an audience up to 250. When used with the required amplifier and speaker processor, the speaker is easily setup to help working presenters, musicians, instructors, performers, and A/V providers get powerful, clean, and clear sound quickly.
The speaker provides 90 x 60° coverage and 131 dB of peak SPL�plenty of volume for smaller venues including houses of worship, conference centers, performance spaces, and meeting rooms. An amplifier delivering 1200W peak power drives the 1.4" titanium compression driver and 12� woofer, providing crisp, detailed sound with a wide frequency range from 20 kHz down to 50 Hz.

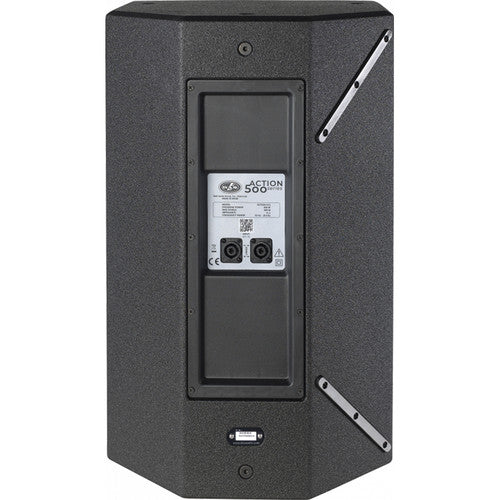

The rear panel sports two speakON connectors for input and output. The horn-loaded compression driver is rotatable, allowing the speaker to be used in a horizontal position for stage monitoring or flown for horizontal deployment. Two side handles offer ease in transport, while the integrated dual-angled pole cup (0°, 10°) allows for speaker stand mounting.
Note: For long-term optimal performance of ACTION-500 passive speakers, the system can only be a complete sound system when rounded out with amplifiers and processors with stored presets and limiters. Main Features
- Passive two-way system
- Birch plywood enclosure
- Durable ISO-flex paint
- Recommended processor: DSP-226
- Recommended amplifier: PA series
Applications
- Live sound reinforcement
- Bands, DJs, and performers
- Speech and vocals
- Music playback in entertainment
- A/V, conferences, and presentations
| Configuration | Passive 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 300 W RMS (at 8 Ohms)
1200 W Peak (at 8 Ohms) |
| HF Driver | 1 x 1.4" / 35.56 mm Rotatable Horn Titanium Compression Driver with 1" / 25.4 mm Throat |
| HF Voice Coil | 1.4" / 35.56 mm |
| LF Driver | 1 x 12" / 30.48 cm Woofer |
| LF Voice Coil | 2.5" / 63.5 mm |
| Frequency Range | 50 Hz to 20 kHz -10 dB |
| Maximum SPL | 131 dB (Peak) |
| Coverage Angle | 90° H x 60° V (Rotatable Horn) |
| Speaker Sensitivity | 96 dB SPL |
| Audio I/O | 2 x speakON NL4 Speaker Input/Thru |
| Mounting | 12 x M10 Fly Point
1 x 1.38" / 35 mm Pole Socket (Dual Angle, Bottom) |
| Handles | 1 x Each Side |
| Construction Material | Perforated Metal Grille, Plywood |
| Dimensions | 24.4 x 15 x 15" / 619.8 x 381 x 381 mm |
| Weight | 41.8 lb / 19 kg |
In the Box
- D.A.S Audio ACTION-512 Two-Way 12" Passive Portable PA Speaker
- Limited 2-Year Warranty on Enclosure
- Limited 5-Year Warranty on Speaker Components
