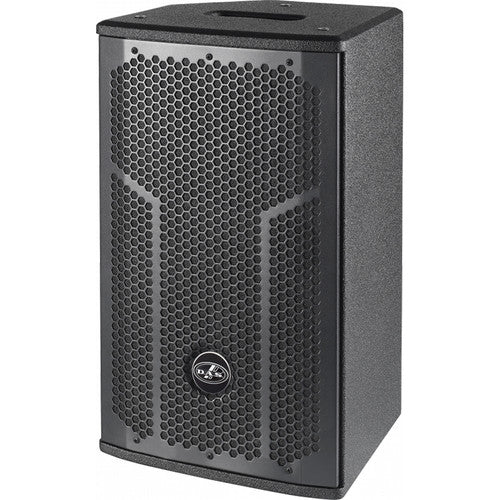

D.A.S Audio ACTION-508A Two-Way 8" 720W Powered Portable PA Speaker with DSP Processor

For Small Spaces / Up to 300 People

Clean, Clear, Loud & Portable

Application Presets + 3-Input Mixer

90 x 60° Coverage, 65 Hz - 20 kHz

The 8" D.A.S. Audio ACTION-508A is a 720W powered PA speaker that�s portable, versatile, and simple to use. It can function as a main PA in a wide variety of positions, with a pair able to cover an audience up to 300. The onboard DSP processing, 3-input mixer, and LCD interface with easy-to-use presets help working presenters, musicians, instructors, performers, and A/V providers get powerful, clean, and clear sound quickly.

The speaker provides 90 x 60° coverage and 122 dB of peak SPL�plenty of volume for smaller venues including houses of worship, conference centers, performance spaces, and meeting rooms. The highly efficient 720W Class-D bi-amplifier powers the 1.4" titanium compression driver and 8� woofer, providing crisp, detailed sound with a wide frequency range from 20 kHz down to 65 Hz.

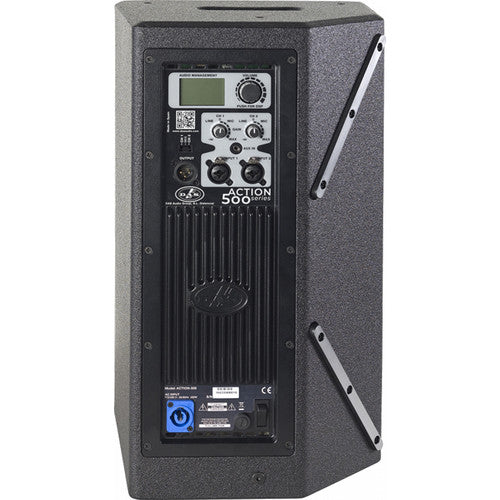

Three inputs are on the back. Inputs 1 and 2 feature combo XLR-1/4" connectors and offer compatibility with microphone and line sources. The Aux input features a stereo 3.5mm TRS auxiliary input for connecting portable audio devices including phones and MP3 players.

Individual gain controls on the inputs 1 and 2 allow the speaker to function as a 3-channel mixer (Aux input levels are also controlled by input 1's gain control). Combine two microphones for presentations or combine a mic, instrument, or backing tracks for singer/songwriter gigs. The horn-loaded compression driver is rotatable, allowing the speaker to be used in a horizontal position for stage monitoring or flown for horizontal deployment.

A single XLR Thru-Output is available for daisy-chaining to additional speakers or other audio equipment. All inputs are mixed to a mono signal internally. An output routing switch allow for the choice of Input 1, Input 2, or a Mix of both to be sent to the Thru-Output XLR connector. For a true stereo L/R operation, two 508As are needed with each to receive independent the left and right signals respectively. The ACTION-508A ships with a powerCON locking power cord.

Display with DAScontrol DSP

• Channel 1 & 2 input meters: provide visual confirmation of gain staging with clip notification
• Master Output meter: provides visual confirmation of output levels with RMS metering and limit notification
• Presets: select from a list of factory presets for your application
  • LIVE: for live sound reinforcement and vocal clarity
  • DANCE: low- and high-frequency emphasis
  • MONITOR: for most stage monitor uses, reduces excessive bass build-up on stage
• High Pass Filter: On/Off (for use with subwoofer)
• Delay: delays signal for aligning rear fills and similar applications
  • Metric: 0 to 9.9 m (0.1 m increments)
  • Imperial: 0 to 32.5' (3.6" increments)

Main Features

• Active biamp system
• Dual-channel 720 W (peak) Class-D amplifier
• Birch plywood enclosure
• Durable ISO-flex paint
• DAScontrol interface for easy setup and adjustment
• DSP with presets and LCD screen

Applications

• Live sound reinforcement
• Bands, DJs and performers
• Speech and vocals
• Music playback in entertainment
• A/V, conferences, and presentations

Configuration	Active 2-Way
Enclosure Type	Bass-Reflex Loudspeaker
Amplifier Power Rating	LF: 720 W Peak 360 W RMS
Amplifier Class	Class-D

HF Driver	1 x 1.4" / 35.56 mm Rotatable Horn Titanium Compression Driver with 1" / 25.4 mm Throat
HF Voice Coil	1.4" / 35.56 mm
LF Driver	1 x 8" / 20.32 cm Woofer
LF Voice Coil	1.5" / 38.1 mm

Frequency Range	65 Hz to 20 kHz -10 dB
Maximum SPL	122 dB (Peak)
Coverage Angle	90° H x 60° V
Input Sensitivity	+8 dBu
I/O Impedance	Input: 20 Kilohms (Balanced)

Audio I/O

2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input 1 x XLR 3-Pin Male Thru/Output

Crossover	High-Pass: Internal
Alignment Delay	Yes
Digital Signal Processing	Venue Settings

AC Input Power	Universal: 115 to 230 VAC, 50 / 60 Hz (T 3.15 A L 250 V)
AC Power Connector	1 x powerCON Input (Locking)
Current Consumption	120 VAC: 1.6 A (1/3 Power) 230 VAC: 0.8 A (1/3 Power)
Power Consumption	180 W

Mounting	M8 Fly Point 2 x 1.38" / 35 mm Pole Socket (Dual Angle, Bottom)
Handles	1 x Top
Construction Material	Plywood
Dimensions	19.1 x 11.2 x 10.2" / 485.1 x 284.5 x 259.1 mm
Weight	26.2 lb / 11.9 kg
