Description

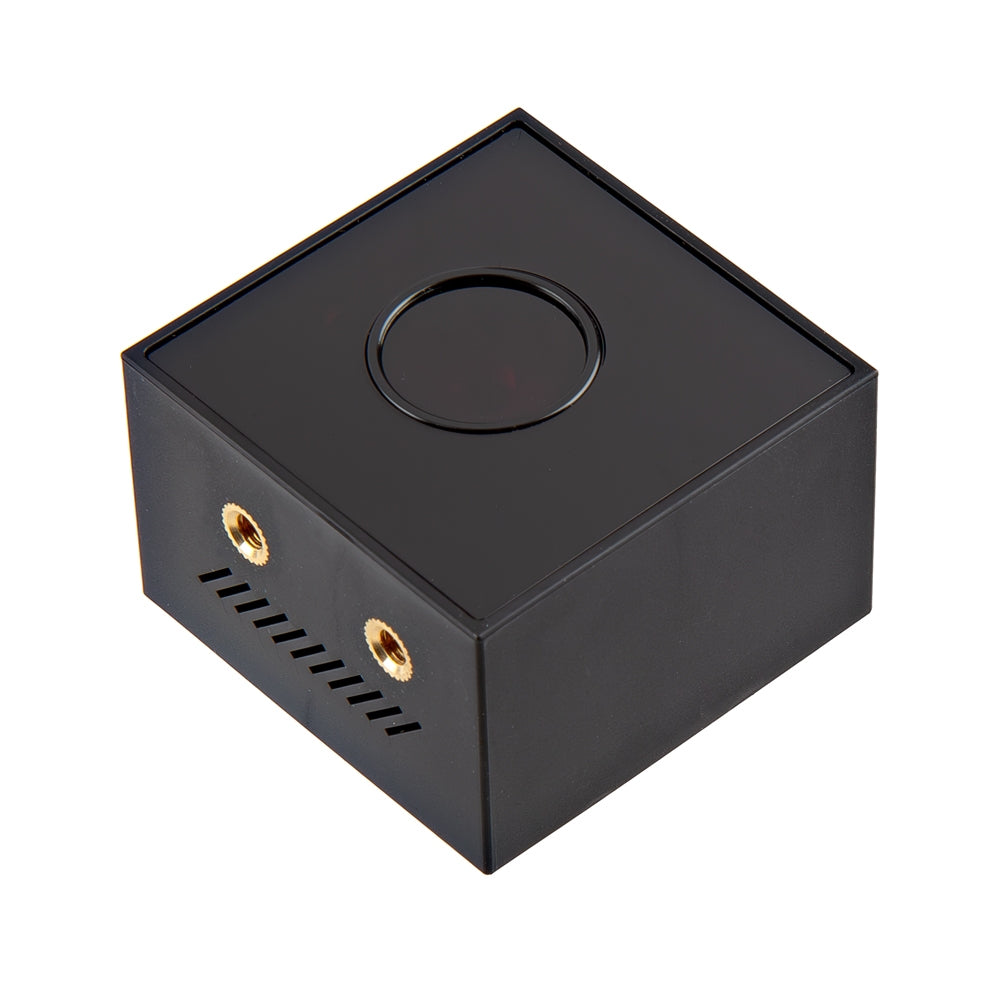

Unlock advanced 2D and 3D perception with the CygLiDAR D2, a compact, ultra-durable, solid-state sensor built for demanding drone, robotic, and automated systems.
Features & Specs
- 2D Detection Range: < 200 mm – 7000 mm
- 3D Detection Range: 50 mm – 2000 mm (Dynamic Range Mode)
- Accuracy: < ±1%
- Field of View:
- Horizontal (2D/3D): 120°
- Vertical (3D): 65°
- Resolution:
- 2D Angular: 0.75°
- 3D Depth Map: 160 × 60 pixels
- Measurement Speed:
- 2D: 15 Hz
- 3D: 15 Hz
- Wavelength: NIR 940 nm (Laser Diode and LED)
- Interface: UART TTL (3.3 V), 57,600 – 3,000,000 bps
- Operating Temperature: –20°C to 60°C
- Dimensions: 37.4 × 37.4 × 24.5 mm
- Weight: 31 g
- Best suited for indoor use
- Certifications: CE, FCC, KC
Features & Specs
- 2D Detection Range: < 200 mm – 7000 mm
- 3D Detection Range: 50 mm – 2000 mm (Dynamic Range Mode)
- Accuracy: < ±1%
- Field of View:
- Horizontal (2D/3D): 120°
- Vertical (3D): 65°
- Resolution:
- 2D Angular: 0.75°
- 3D Depth Map: 160 × 60 pixels
- Measurement Speed:
- 2D: 15 Hz
- 3D: 15 Hz
- Wavelength: NIR 940 nm (Laser Diode and LED)
- Interface: UART TTL (3.3 V), 57,600 – 3,000,000 bps
- Operating Temperature: –20°C to 60°C
- Dimensions: 37.4 × 37.4 × 24.5 mm
- Weight: 31 g
- Best suited for indoor use
- Certifications: CE, FCC, KC
Documentation
