Description

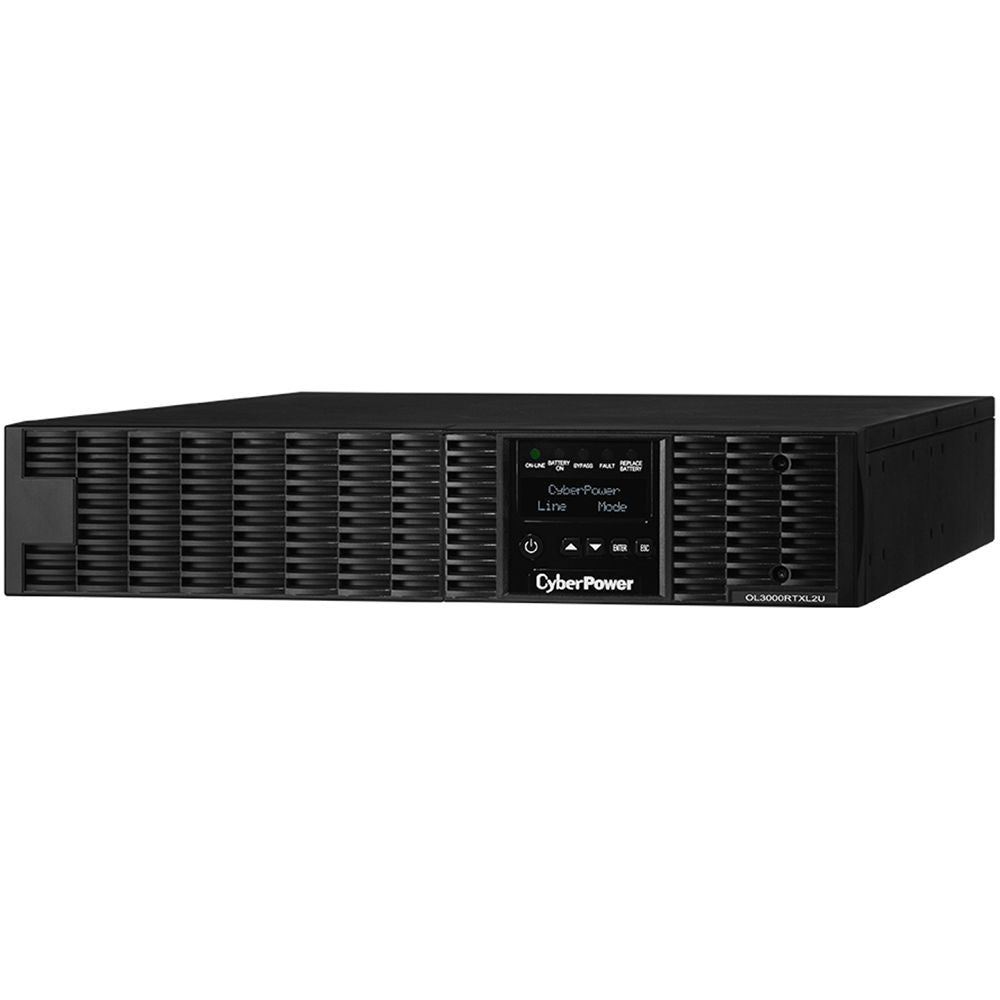

The Smart App Online Series 2U Rack/Tower UPS from CyberPower provides 3,000VA / 2,700W simultaneous sine wave output to mission-critical applications and equipment requiring seamless power protection. Its double-conversion topology is generator compatible and delivers consistent and clean AC power with zero transfer time, protecting connected equipment and preventing costly business interruptions. This unit comes with an extendable LCD control panel, data center and telecom equipment, VoIP, and internetworking hardware that requires seamless power correction.
Auto-bypass insures connected equipment continues to operate seamlessly when an overload or internal fault is detected. Configurable GreenPower UPS ECO Mode improves UPS efficiency to 93% and reduces electrical and cooling costs. Smart Battery Management (SBM) uses a three-cycle charging mode to improve battery life while reducing heat being generated. The model can use the BP72V60ART2U Extended Battery Module (available separately) for expanded runtime and faster restoration of full backup power.
- Data Line Protection
-
- Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
- Double-Conversion Topology
-
- Provides consistent and clean power supply, regardless of the condition of incoming power.
- With this technology, the system operates on isolated DC power 100% of the time and has a zero transfer time because it never needs to switch to battery.
- This double-conversion UPS system is designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
- Sine Wave Output
-
- Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
- Extendable LCD Panel
-
- Displays UPS statuses and customizable operating settings from up to 10� away with an optional cable.
- This LCD control panel can be configured in English, Spanish, or French for ease of use.
- Extended Battery Module (EBM)
-
- Extends runtime by adding BP72V60ART2U EBMs (available separately).
- Fast Charge Technology
-
- Allows UPS batteries to return to 100% capacity more rapidly by utilizing a built-in charger inside each EBM.
- Restores a complete charge within 5 hours regardless of the number of EBMs.
- Smart Battery Management (SBM)
-
- Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
- GreenPower UPS ECO Mode
-
- Improves UPS efficiency up to 93%; saves on electrical and cooling costs.
- Hot-Swappable Batteries
-
- Eliminate downtime related to UPS power maintenance for continuous power availability.
- Critical & Non-Critical Loads
-
- UPS has two banks of outlets which can be configured so that the non-critical loads shut off after a set timeframe to provide additional runtime for the critical load outlet.
- Users can prioritize their equipment runtimes to maximize the output of the UPS to meet their power requirements.
- Emergency Power Off (EPO)
-
- Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
- Generator Compatible
-
- Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
- Converter Mode
-
- Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50 or 60 Hz output on the LCD control panel.
- USB & Serial Connectivity
-
- Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
- EMI/RFI Filters
-
- Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
- Audible Alarms
-
- Identify when the model is running on battery power, overloaded, or has a low battery.
- Resettable Circuit Breaker
-
- Interrupts an electric current in a circuit when the current becomes too high.
- LED Status Lights
-
- Indicate power on, line mode, battery mode, bypass mode, fault, replace battery.

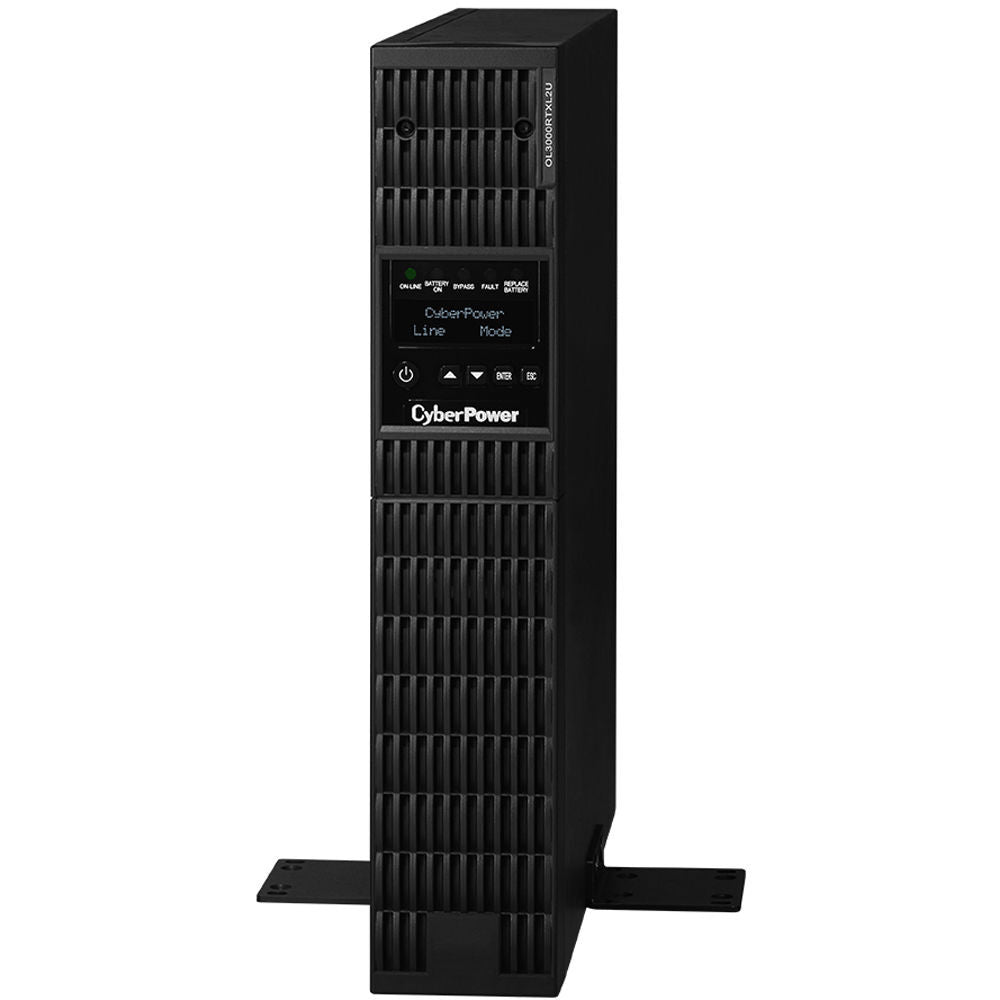

- Rack/Tower Versatility
-
- Allows for horizontal rack or vertical tower installation.
- PowerPanel Business Edition Software (Included)
-
- Provides IT professionals with tools for monitoring and managing the UPS and backup power.
- This software offers remote management functionality.
- Cisco Compatible
-
- This CyberPower UPS system is a Cisco EnergyWise compliant end device.
- ENERGY STAR
-
- ENERGY STAR certified Uninterruptible Power Supply (UPS) system.
- Connected Equipment Guarantee
-
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
UPC: 649532604890
In the Box
CyberPower Smart App Online Series 2U Rack/Tower UPS (3,000VA / 2,700W)
- USB Device Cable
- Telephone Cable
- RS-232 Serial Interface Cable
- PowerPanel Business Edition Software CD
- 2 x Rackmount Rails (Left & Right)
- 2 x Rackmount Ears
- 12 x Rubber Feet
- Mounting Hardware
- Limited 3-Year Warranty
| General | |
|---|---|
| UPS Topology | Double-conversion |
| Input | |
|---|---|
| Voltage | 120 VAC |
| Input Voltage Range | 60 to 69 VAC for 0 to 60% load 70 to 79 VAC for 0 to 70% load 80 to 89 VAC for 0 to 80% load 90 to 95 VAC for 0 to 90% load 96 to 150 VAC for 0 to 100% load |
| Frequency Range | 40 to 70 Hz |
| Power Factor | 0.99 |
| Cold Start | Yes |
| Plug Type | NEMA L5-30P |
| Cord Length | 10' (3 m) |
| Output | |
|---|---|
| Apparent Power | 3,000 VA |
| Wattage | 2,700 W |
| On Battery Voltage | 100, 110, 115, 120, 125 VAC (configurable) � 2% |
| On Battery Frequency | 50/60 Hz � 0.25 Hz (auto-sensing or configurable) |
| On Battery Waveform | Sine Wave |
| Outlet | 6 x NEMA 5-20R 1 x L5-30R |
| Power Factor | 0.9 (rated) |
| Crest Factor | 3:1 |
| Harmonic Distortion | THD < 3% at Linear Load, < 5% at Non-linear Load |
| Voltage Regulation | ECO Mode: �10%, �15% (configurable) |
| Bypass | Internal bypass (automatic and manual) |
| Overload Protection | Line Mode: 105 to 125% load for 1 min 126 to 150% load for 10 sec Battery Mode: 105 to 130% load for 10 sec 131 to 150% load for 2 sec |
| Transfer Time | 0 ms |
| Battery | |
|---|---|
| Runtime at Half Load | 9 minutes |
| Runtime at Full Load | 3 minutes |
| Battery Type | Sealed lead-acid |
| Battery Size | 12 V / 9 Ah |
| Battery Quantity | 6 |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB1290X6A |
| Replacement Battery Cartridge | 1 |
| Typical Recharge Time | 4 hours |
| Extended Battery Packs | BP72V60ART2U module |
| Mode | Smart Battery Management (SBM) mode |
| Surge Suppression | 1,335 J (IEC 61000-4-5 Level 3) |
| EMI/RFI Filter | Yes |
| Management and Communications | |
|---|---|
| LCD Control Panel | 43 different settings or status options via the UPS Status menu, UPS Setup menu, and run Testing menus Removable LCD control panel option (requires a separately available DB26 cable) |
| Ports | HID compliant USB port Serial port EPO port Dry contacts |
| Management Cable | USB cable and Serial cable (both are included) |
| LED Indicators | White: Power On Green: Line Mode Yellow: Battery Mode Bypass Mode Red: Fault Replace Battery |
| Audible Alarm | Battery mode Battery low Overload UPS fault Replace battery |
| Software | PowerPanel Business Edition (included in a CD) |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Operating Humidity | 0 to 90% (non-condensing) |
| Operating Elevation | 0 to 10,000' (0 to 3,000 m) |
| Storage Temperature | -4 to 113�F (-20 to 45�C) |
| Storage Relative Humidity | 0 to 95% (non-condensing) |
| Storage Elevation | 0 to 50,000' (0 to 15,000 m) |
| Online Thermal Dissipation | 1,116 BTU/hr |
| Audible Noise | At 4.9' (1.5 m) from Surface of Unit: < 50 dBA |
| Certifications | |
|---|---|
| Safety | UL1778 CSA C22.2 NO.107.3-05 FCC DOC Class A |
| Environmental | RoHS compliant |
| Energy Saving | ENERGY STAR qualified ECO Mode Efficiency: >93% |
| Physical | |
|---|---|
| Rack Size | 2U |
| Form Factor | Rack/Tower |
| Enclosure Material | Steel |
| Mounting Hardware | Included |
| Dimensions (W x H x D) | 17.0 x 3.5 x 23.6" (431.8 x 88.9 x 599.4 mm) |
| Weight | 68.2 lb (31 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 82.0 lb |
| Box Dimensions (LxWxH) | 34.0 x 22.0 x 10.0" |
