Description
CyberPower OL2200RTXL2UN Overview
- 1Description
- 2Double-Conversion Topology
- 3Sine-Wave Output
- 4PowerPanel Business Edition Software
- 5RMCARD205 Option
- 6LCD Control Panel
- 7Extended Battery Module (EBM)
- 8Fast Charge Technology
- 9Smart Battery Management (SBM)
- 10GreenPower UPS ECO Mode
- 11Hot-Swappable Batteries
- 12Upgradeable UPS firmware
- 13Critical and Non-Critical Loads
- 14Generator Compatible
- 15Converter Mode
- 16USB and Serial Connectivity
- 17EMI/RFI Filters
- 18Data Line Surge Protection
- 19Audible Alarms
- 20Resettable Circuit Breaker
- 21LED Status Lights
- 22Rack/Tower Versatility

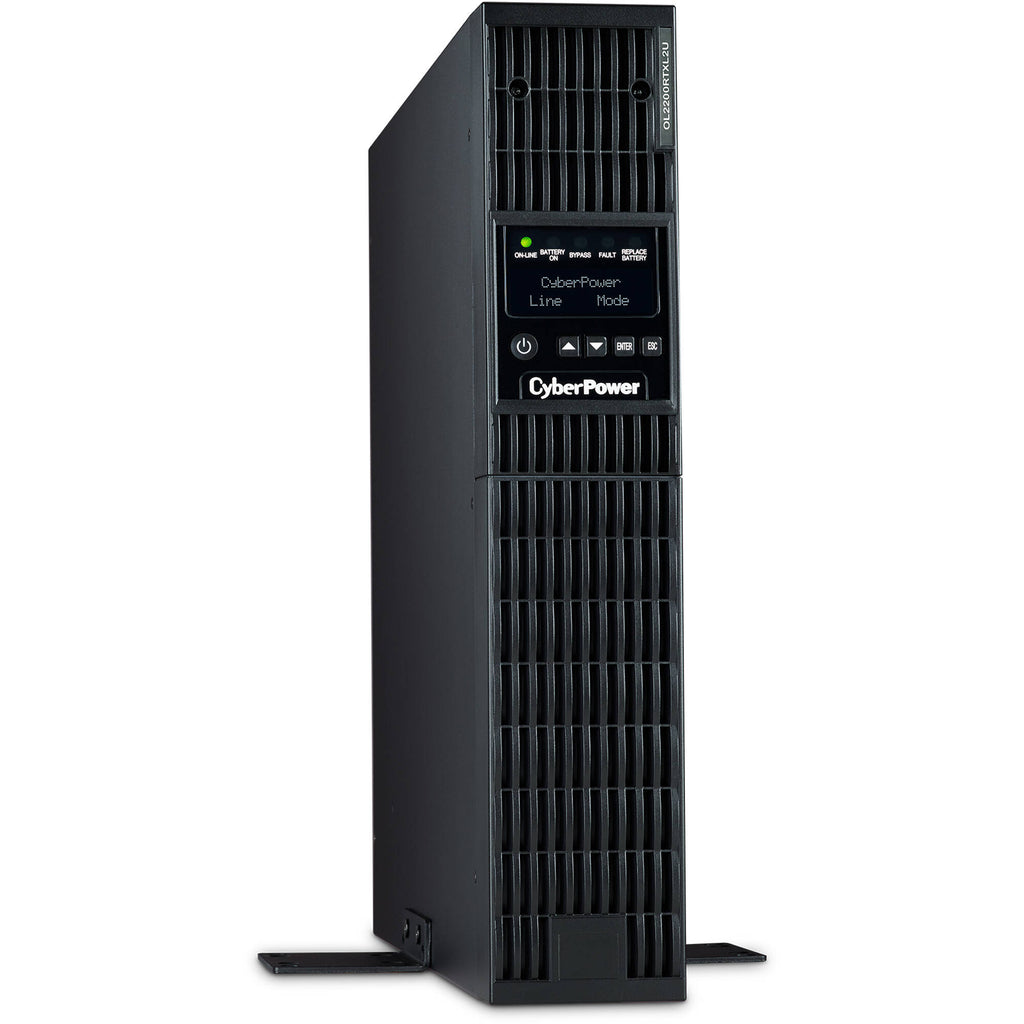

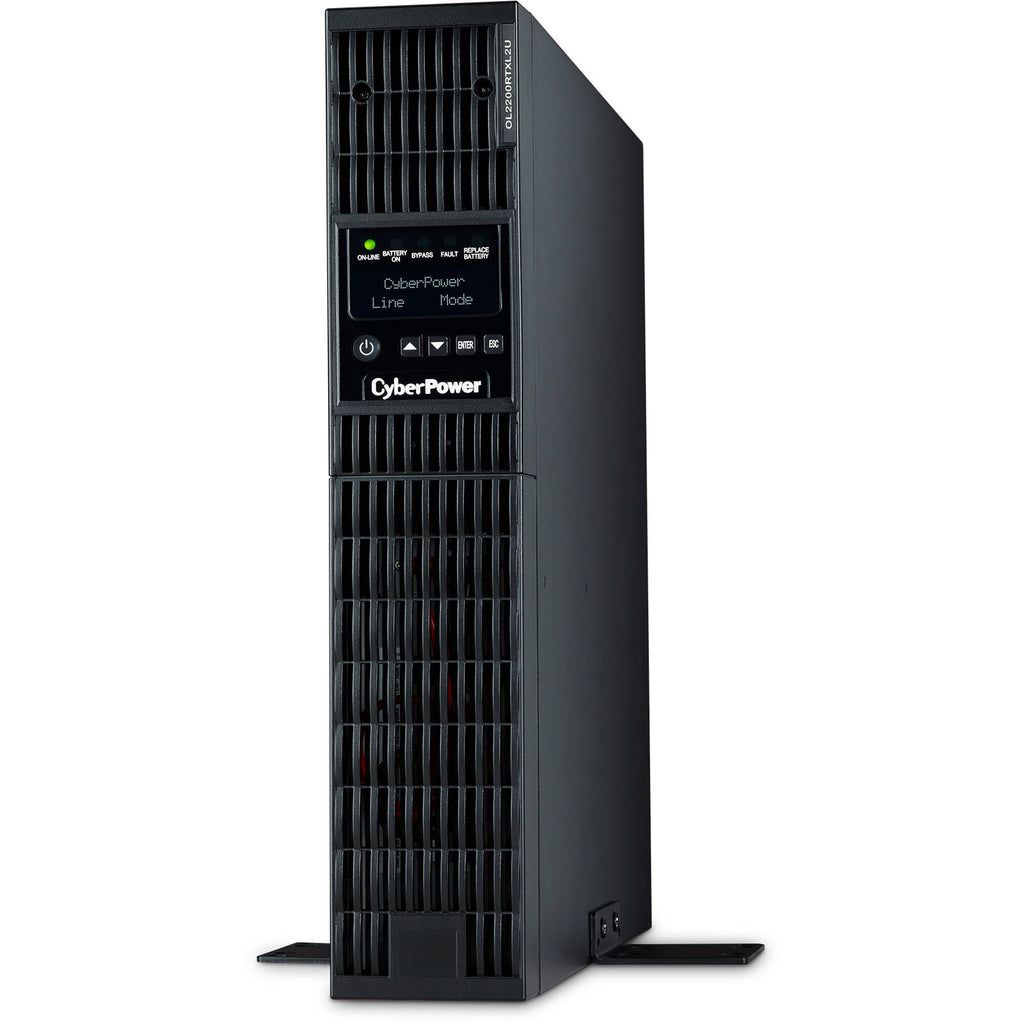

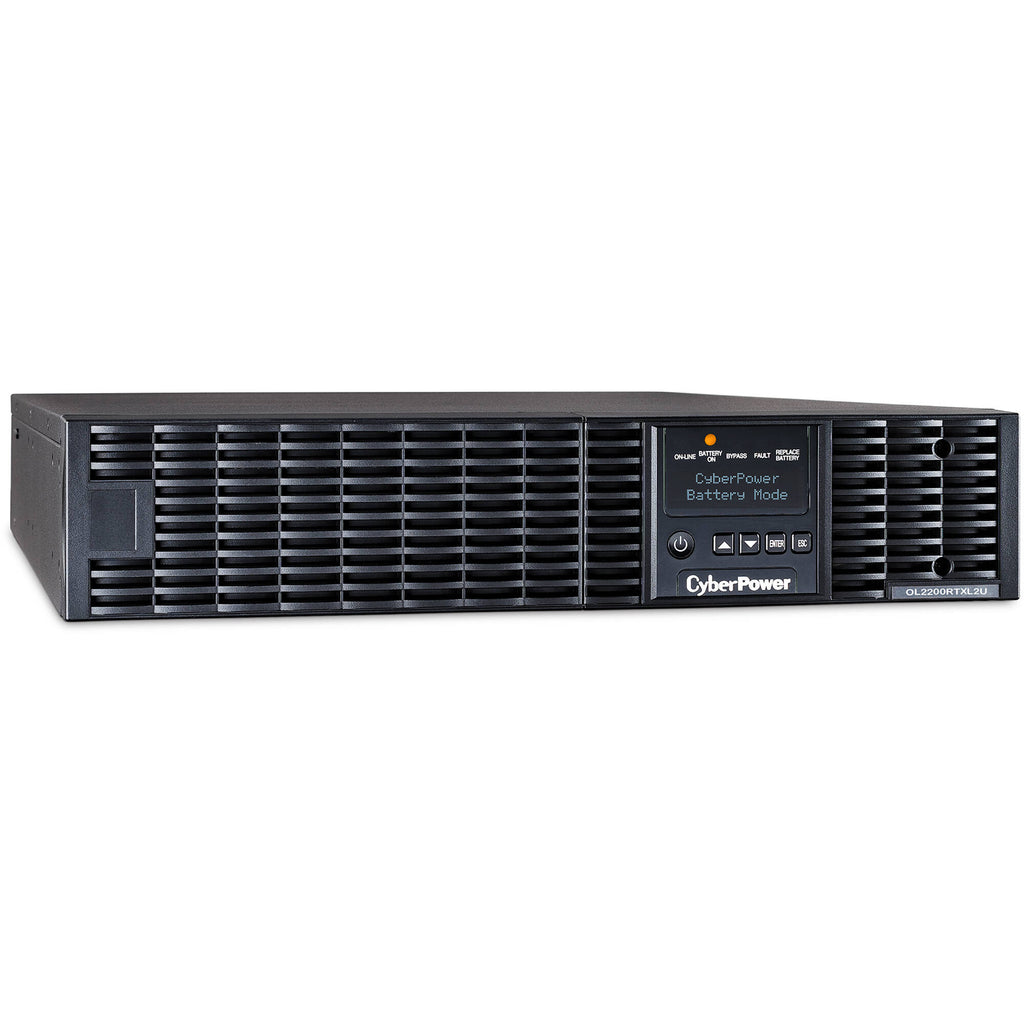

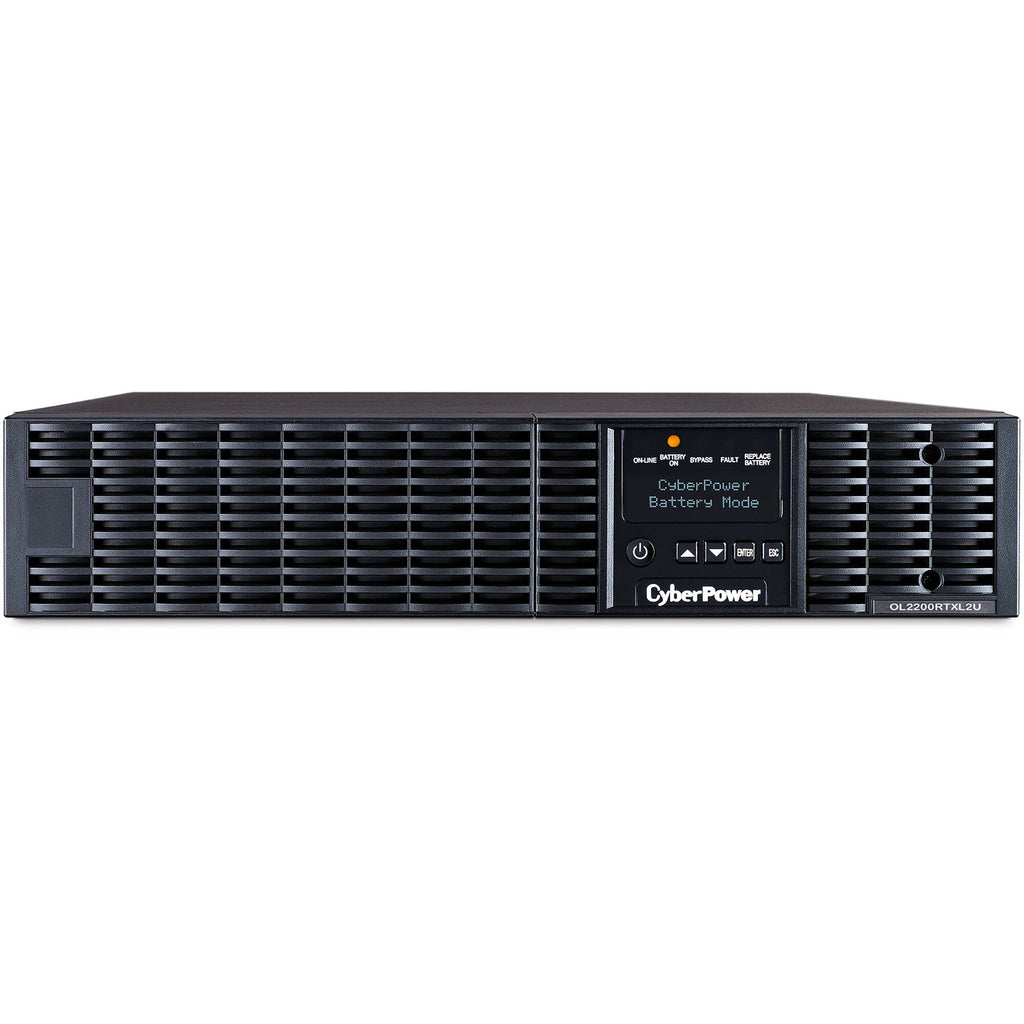

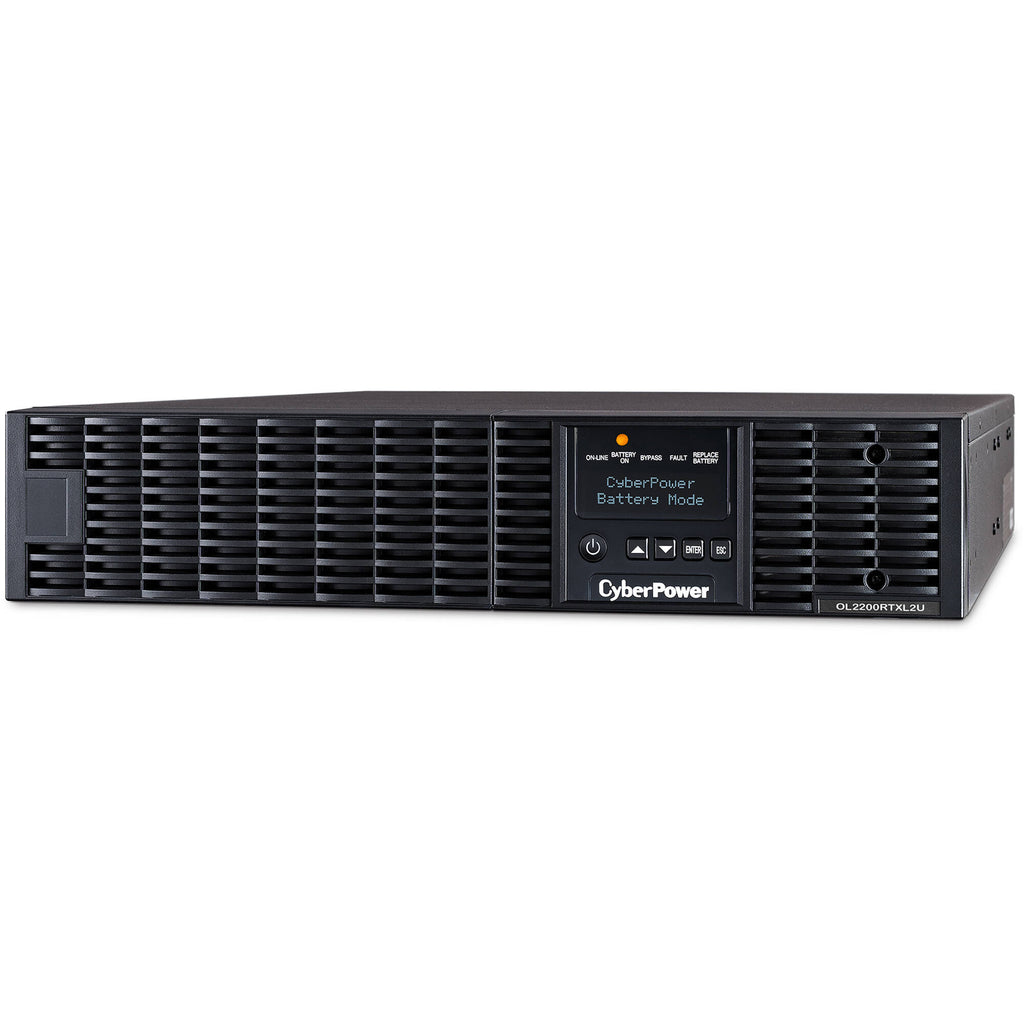

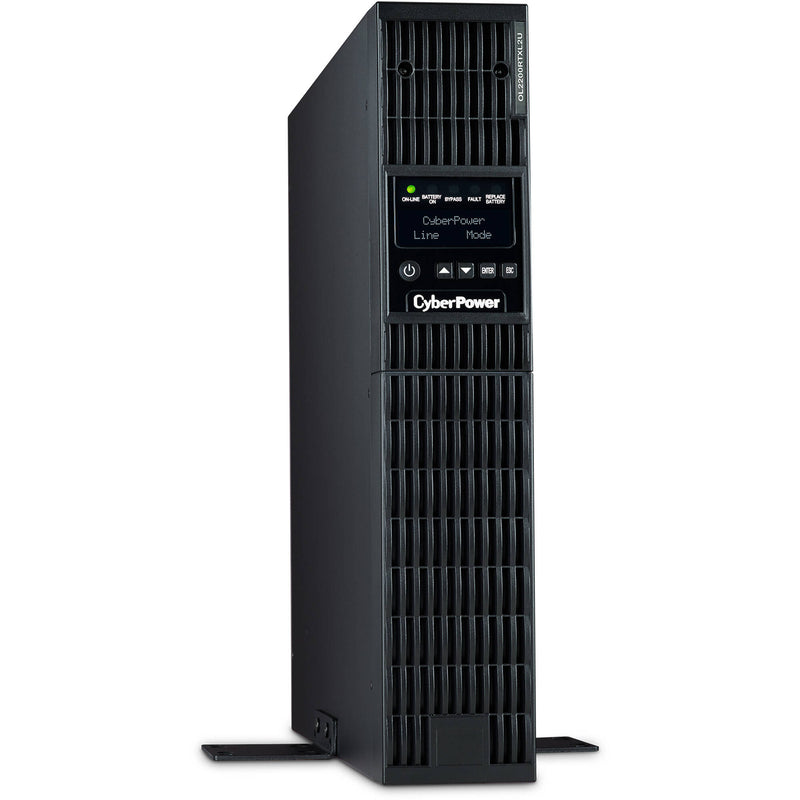

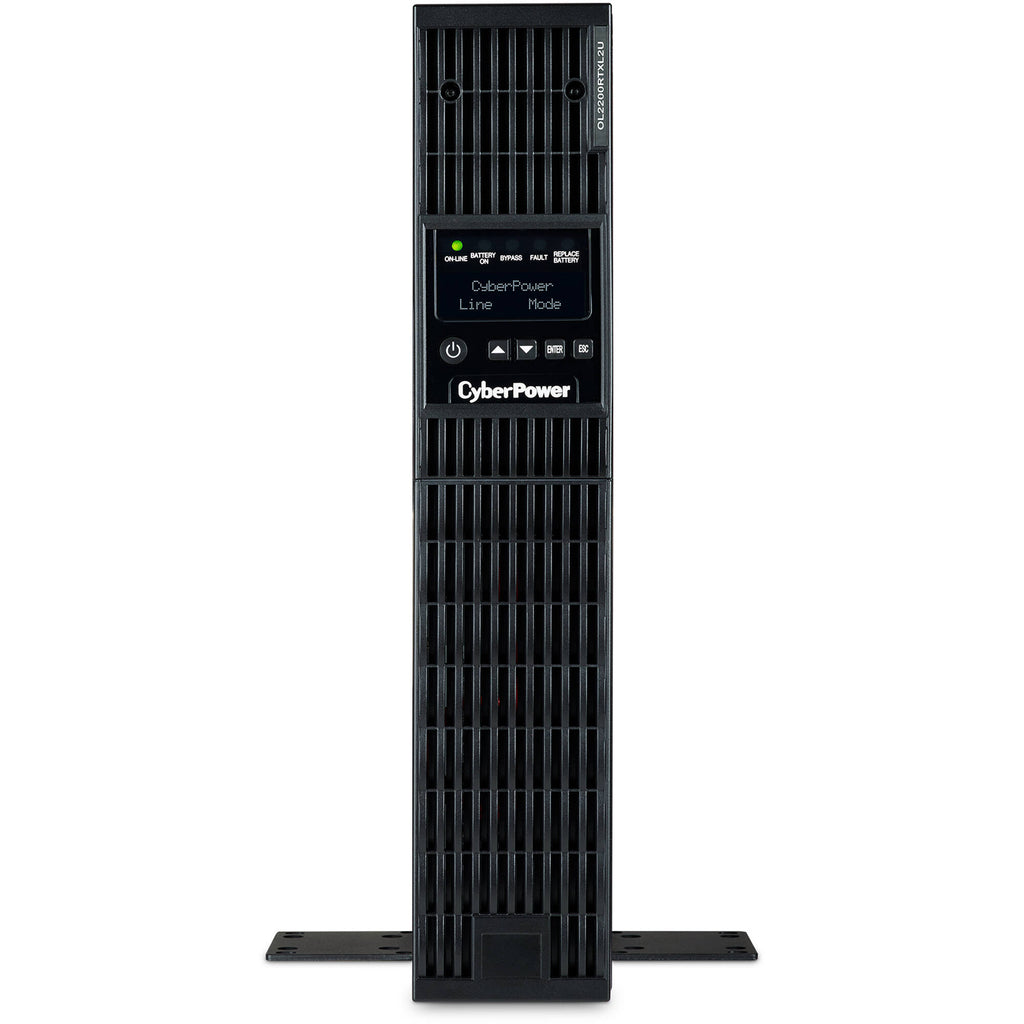

Keep critical components online with the Smart App Online OL2200RTXL2U UPS from CyberPower. Designed for servers and other network equipment, this uninterruptible power supply features one NEMA L5-20R and six NEMA 5-20R outlets. In addition to an output of 1800W and 2200VA of apparent power, the output voltage can be configured from 100 to 125V. This UPS is compatible with 120V input via a 10' cable with a NEMA 5-20P plug.
Power follows a true sine wave for smooth power, while active power-factor correction allows for compatibility with simulated sine-wave devices. Double-conversion topology provides consistent power regardless of input condition, and an integrated 20A circuit breaker safeguards connected equipment. In the event of a power overage, a 0 ms transfer time ensures connected devices smoothly transition to battery power. In addition to using hot-swappable batteries, this UPS is compatible with extended battery modules as well as generator power.
The CyberPower Smart App Online OL2200RTXL2U UPS utilizes a metal construction and can be deployed as a tower or installed in a server rack. An LCD screen and LED indicators keep you informed of changing status conditions, and USB Type-B and serial ports allow for communication with host computers. Ready to manage remotely? Install an optional RMCARD205 to control the UPS via a web browser, command line interface, or network management system. The CyberPower OL2200RTXL2U comes with hardware for installing in a server rack, as well as a USB communication and serial management cable.
Double-Conversion Topology
Provides consistent and clean power, regardless of the condition of the incoming power. With the conversion to DC power, the UPS has a 0 ms transfer time to battery power when utility power is lost. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine-Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
PowerPanel Business Edition Software
Provides tools for easy remote monitoring and management of the UPS and automates shutdown of multiple devices when needed.
RMCARD205 Option
The optional RMCARD205 allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS).
LCD Control Panel
Displays UPS status data and configures operating settings from up to 10' away with the DB26 cable, available separately. The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed.
Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.
Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge within from 0 to 90% within 4 hours regardless of the number of EBMs.
Smart Battery Management (SBM)
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
GreenPower UPS ECO Mode
Improves UPS efficiency up to 95%; saves on electrical and cooling costs.
Hot-Swappable Batteries
Keep equipment running by eliminating downtime during UPS battery replacement.
Upgradeable UPS firmware
The UPS firmware that manages the unit's features and functions is field upgradeable. UPS firmware upgrades require the optional RMCARD205 to be installed in the UPS and are done via the web management interface.
Critical and Non-Critical Loads
Maximize the output of the UPS by setting non-critical loads to shut off, allowing additional runtime for critical load outlets.
Generator Compatible
Provides stable sine-wave output free of harmonics and distortion without switching to battery mode when running on generator input power.
Converter Mode
Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50- or 60-Hz output on the LCD control panel.
USB and Serial Connectivity
Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
EMI/RFI Filters
Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.
Data Line Surge Protection
Prevents power surges that travel through telephone and Ethernet lines from causing damage to your equipment
Audible Alarms
Identify when the model is running on battery power, overloaded, or has a low battery.
Resettable Circuit Breaker
Interrupts an electric current in a circuit when the current becomes too high.
LED Status Lights
LEDs indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, and Replace Battery statuses.
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.
UPC: 649532604883
In the Box
- CyberPower Smart App Online OL2200RTXL2U UPS
- 2 x Rackmount Rails
- 2 x Hanging Brackets
- USB Communication Cable
- Serial RS-232 Interface Cable
- 8 x M5XL7 Black Flat-Head Screws
- 12 x M5X12L Black Pan-Head Screws
- 6 x M5X6L Silver Pan Head Screws
- 8 x Plastic Washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads
- PowerPanel Business Edition Software Download Card
- Limited 3-Year Warranty
Table of Contents
- Description
- Double-Conversion Topology
- Sine-Wave Output
- PowerPanel Business Edition Software
- RMCARD205 Option
- LCD Control Panel
- Extended Battery Module (EBM)
- Fast Charge Technology
- Smart Battery Management (SBM)
- GreenPower UPS ECO Mode
- Hot-Swappable Batteries
- Upgradeable UPS firmware
- Critical and Non-Critical Loads
- Generator Compatible
- Converter Mode
- USB and Serial Connectivity
- EMI/RFI Filters
- Data Line Surge Protection
- Audible Alarms
- Resettable Circuit Breaker
- LED Status Lights
- Rack/Tower Versatility
CyberPower OL2200RTXL2UN Specs
General
| Total Outlets | 6 x NEMA 5-15R 1 x NEMA L5-20R |
| Plug Type | NEMA 5-20P |
| USB Charging Ports | None |
| Coax Protection | None |
| Data Line Protection | RJ11 |
| Communications | Serial via DE-9/DB-9 USB via Type-B |
| Emergency Power Off (EPO) Support | Yes |
| Topology | Double Conversion |
| Transfer Time | 0 ms |
Power
| Surge Energy Rating | 1335 Joules |
| Maximum Wattage | 1800 W |
| Nominal Input Voltage | 120 VAC |
| Input Voltage Range | 100 to 125 VAC |
| Input Voltage Adjustable Range | 60 to 150 VAC |
| Input Frequency | 50/60 Hz ± 10 Hz |
| Output Voltage Range | 100 to 125 VAC |
| Output Frequency | 50/60 Hz ± 0.1% (Auto Sensing, Configurable) |
| Load Capacity | 2200 VA |
| Thermal Dissipation | 541 BTU/Hour |
| Crest Factor | 3:1 |
| Power Factor Correction | 0.99 |
| Waveform | Sine Wave |
Battery
| Battery Capacity | 108 VAh |
| Chemistry | Lead-Acid |
| Full-Load Runtime | 6.5 Minutes |
| Half-Load Runtime | 20 Minutes |
| Recharge Time | 4 Hours |
| Replacement Battery | RB1290X6A |
| Hot-Swap Support | Yes |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 0 to 90% |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Storage Humidity | 0 to 95% |
| Operating Altitude | 10,000' / 3000 m |
| Storage Altitude | 50,000' / 15,000 m |
| Certifications | CSA, FCC, RoHS, UL *as per Manufacturer |
Physical
| Cable Length | 10' / 3 m |
| Material of Construction | Metal |
