Description

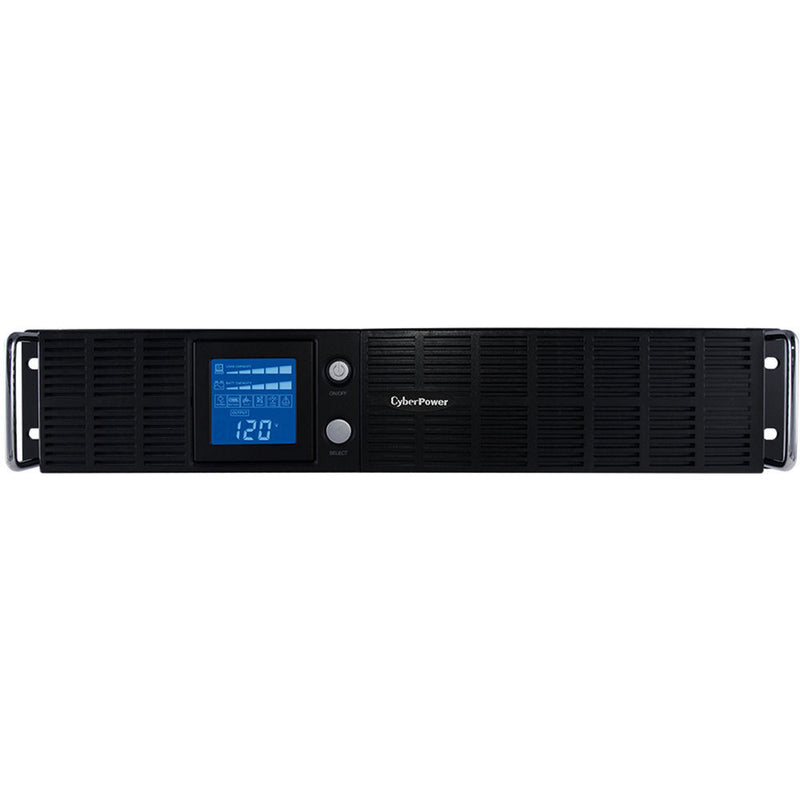

The Smart App LCD Series 2U Line Interactive Sine Wave UPS from CyberPower provides simulated sine wave output of 2,190 VA and 1,650 W. Along with the battery backup, it also provides surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This UPS system is ENERGY STAR qualified with GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
- Data Line Protection
-
- Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics
- Surge Protection
-
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
- Line-Interactive Topology
-
- Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery
- Automatic Voltage Regulation (AVR)
-
- Provides clean, consistent AC power by automatically boosting low voltage without using battery power when incoming utility power experiences minor fluctuations
- Simulated Sine Wave Output
-
- Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output
- GreenPower UPS Bypass Design
-
- Allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat build-up
- Rotatable Multifunction LCD Panel
-
- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime
- Rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower
- PowerPanel Business Edition Software (Included)
-
- Provides tools for monitoring and managing the UPS and backup power, also offers remote management functionality
- ENERGY STAR
-
- ENERGY STAR certified Uninterruptible Power Supply (UPS) system
- Connected Equipment Guarantee
-
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge
- Applications
-
- Department servers, workgroup servers, workstations, network devices, and telecom installations
UPC: 649532022038
In the Box
CyberPower Smart App LCD UPS Series 2U Rack/Tower Line Interactive Sine Wave UPS (2,190 VA / 1,650 W)
- 2 x PowerPanel Business Edition software CD
- Telephone Cable
- 2 x Serial Cable
- Serial Interface Cable (DB-9)
- USB A+B Type Cable
- Emergency Power off Cable (Gray)
- 2 x Rack Mount Bracket
- 2 x Stand
- Limited 3-Year Warranty
| General | |
|---|---|
| UPS Topology | Line-interactive |
| Input | |
|---|---|
| Voltage | 90 to 140 VAC |
| Frequency Range | 47 to 63 Hz |
| Plug Type | NEMA 5-20P |
| Plug Style | Straight |
| Cord Length | 10' (3 m) |
| Output | |
|---|---|
| VA | 2,190 VA |
| Watts | 1,650 W |
| Automatic Voltage Regulation (AVR) | Yes |
| On Battery Voltage | 120 VAC � 10% |
| On Battery Frequency | 60 Hz � 1% |
| On Battery Waveform | Simulated sine wave |
| Outlet | NEMA 5-20R |
| Battery and Surge Protected Outlets | 8 |
| Hot-Swappable | Yes |
| User Replaceable | Yes |
| Overload Protection | Internal circuitry limiting Circuit breaker |
| Transfer Time | 4 ms |
| Battery | |
|---|---|
| Runtime at Half Load | 15 minutes |
| Runtime at Full Load | 6 minutes |
| Battery Type | Sealed lead-acid |
| Battery Size | 12 V / 9 Ah |
| Battery Quantity | 4 |
| Replacement Battery Cartridge | RB1290X4B |
| Replacement Battery Cartridge | 1 |
| Typical Recharge Time | 8 hours |
| Surge Suppression | 2,060 J |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-in, 1-out |
| Management and Communications | |
|---|---|
| LCD Panel | Displays: Load/Current Level Runtime Battery Level Temperature (F & C) Battery In Use Input Voltage Output Voltage Output Frequency Overload Wiring Fault Battery Shutdown Voltage Static Frequency Tolerance Slew Rate Silent Mode Normal Mode |
| Ports | 1 x HID Compliant USB port 2 x Serial port |
| Management Cable | USB cable 2 x Serial cable |
| Audible Alarm | On Battery Low Battery Overload |
| Software | PowerPanel Business Edition (included in a CD) |
| SNMP/HTTP Remote Monitoring | Yes, with separately available RMCARD202, RMCARD203 or RMCARD205 |
| Environmental | |
|---|---|
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Operating Humidity | 0 to 90% (non-condensing) |
| Certifications | |
|---|---|
| Safety | UL1778 cUL 107.3 FCC DOC Class B |
| Environmental | RoHS compliant |
| Physical | |
|---|---|
| Rack Size | 2U |
| Form Factor | Rack / Tower |
| Dimensions (W x H x D) | 17.0 x 3.5 x 18.8" (43.2 x 8.9 x 47.8 cm) |
| Weight | 66.1 lb (30 kg) |
